Nominal vs Absolute Micron Rating in Industrial Filtration
A nominal micron rating and an absolute micron rating are not interchangeable. Neither term is complete without its efficiency definition, particle-size basis, test method and operating conditions. Industrial buyers should compare the evidence behind the number—not the micron number alone.
Direct Answer: Nominal and Absolute Describe Different Retention Claims
Nominal rating
Usually means a stated percentage of particles near a stated size is retained under defined conditions. The percentage is not universal.
Absolute rating
Intended as a stricter threshold, but still requires an efficiency, beta ratio or named test definition.
Geometric opening
Describes aperture or pore geometry; it is not automatically a particle-retention efficiency.
System performance
Also depends on flow, viscosity, loading, pressure, seals, support and possible bypass.
Nominal vs Absolute Micron Rating Comparison
The table gives a purchasing framework, not a universal conversion. A statement such as “10 μm absolute” remains incomplete until the acceptance definition is attached.
| Comparison point | Nominal micron rating | Absolute micron rating | Buyer action |
|---|---|---|---|
| Typical meaning | Partial retention at the stated size | Higher or threshold retention at the stated size | Request the exact efficiency definition |
| Universal percentage? | No | No universal value from the word alone | Record the percentage or beta ratio |
| Test basis | Vendor or named retention procedure | Named retention or multipass procedure | Use the same method for comparison |
| Particle basis | Must define particle material, distribution and measurement | Must define particle material, distribution and measurement | Do not compare unlike challenge particles |
| Operating result | Can change with test and process conditions | Can change with test and process conditions | Add real fluid and hydraulic duty |
Micron Rating Is Not the Same as Mesh Opening

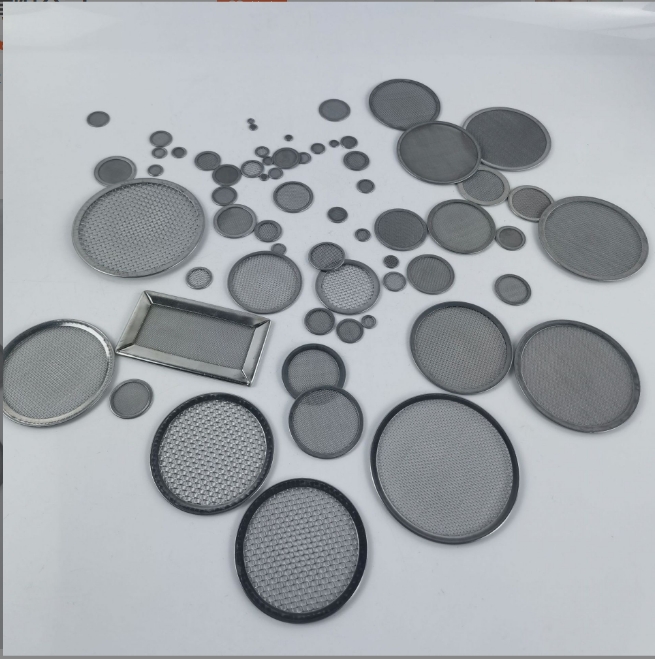

Square woven mesh has a measurable nominal aperture derived from mesh count and wire diameter. That geometric value does not automatically equal a retention efficiency. A request for a 5 micron filter is incomplete until the buyer confirms whether 5 microns means a geometric opening, a nominal rating or absolute/test-based performance. Use the wire mesh opening vs particle-retention guide for particle shape, orientation, deformation, bridging and bypass effects. Use the mesh-to-micron calculator only for square-mesh aperture geometry. Dutch weave has an indirect pore path and needs construction-specific data. Review the Dutch weave micron-rating guide before comparing dense woven media.
What Must Be Defined Behind a Micron Claim
Efficiency threshold
Percentage retained or passed, or the applicable beta ratio.
Particle definition
Challenge material, particle-size distribution and measurement basis.
Test conditions
Fluid, viscosity, flow, temperature, pressure and sample configuration.
Media condition
Clean or loaded state, media layers, support and manufacturing tolerance.
Understanding Beta Ratio Without Overclaiming
For a stated particle size, beta ratio compares the number of particles upstream with the number downstream under the specified test. Efficiency can be expressed as (β − 1) / β × 100%. For example, β = 200 corresponds mathematically to 99.5% under that test definition.
The beta value is not a universal property independent of the procedure. Confirm the particle measurement, test standard, flow conditions, sample and reporting convention before using it as an acceptance criterion.
Worked Procurement Example
Incomplete enquiry
“Please quote a 10-micron stainless filter.”
Missing definition
Nominal or absolute, efficiency, method, medium, flow and complete construction.
Comparable enquiry
“Target 10 μm at the stated efficiency and test method,” followed by hydraulic and drawing data.
This example does not assign a universal efficiency to either term. It shows how to turn a marketing label into an auditable purchase requirement.
The Complete Filter Assembly Can Change the Result

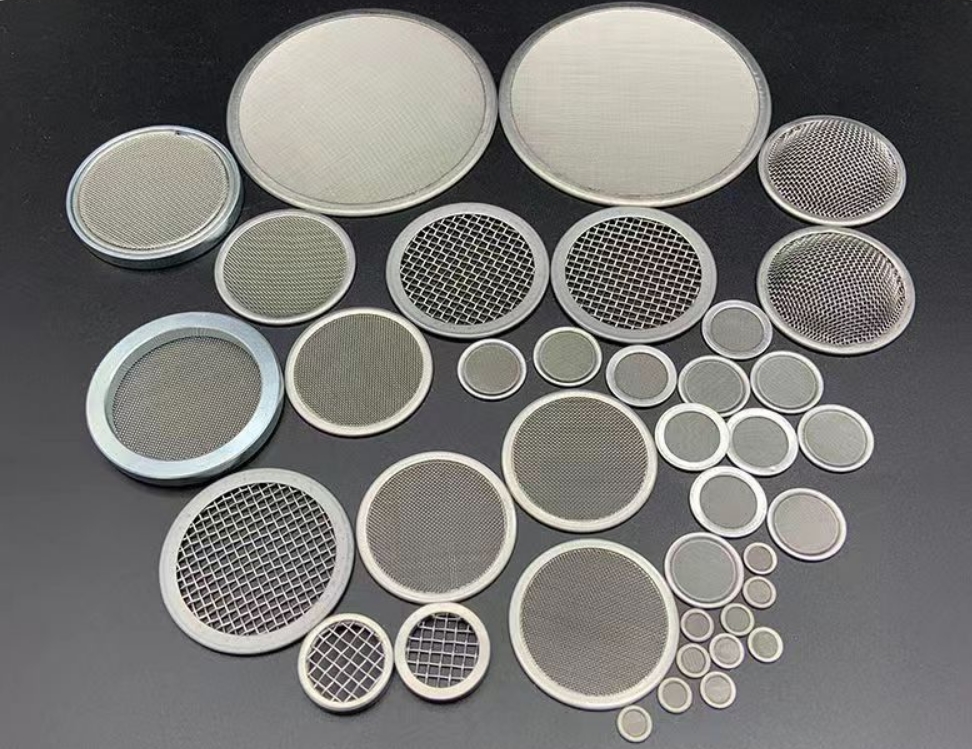

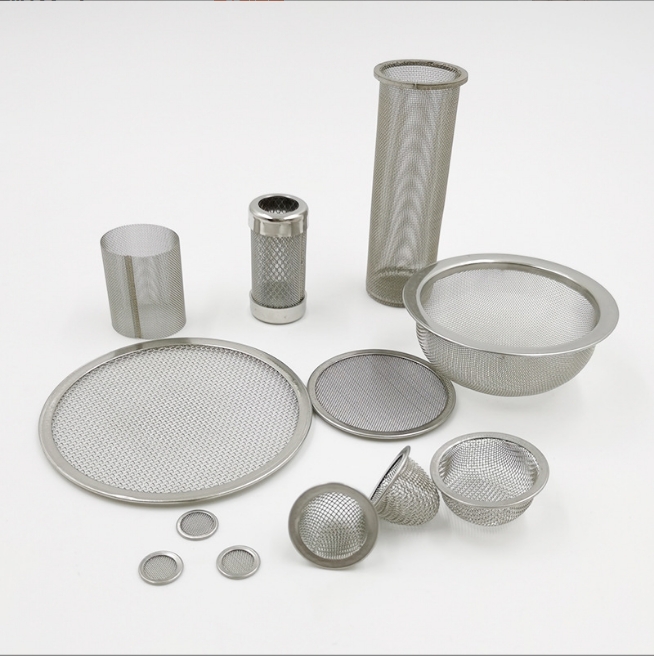

Media rating alone does not control sealing, bypass, mechanical support or usable filtration area. A disc, cylinder, pleated cartridge and sintered element may use different pore structures and test conventions.
Use the filter disc selection guide for layered discs. Compare pleated stainless steel cartridges and sintered filter cartridges by their complete construction and test basis.
Common Rating Comparison Mistakes
Micron number only
Treating identical numbers as equivalent without definitions.
Aperture equals efficiency
Using a geometric opening as a retention percentage.
Different tests
Comparing results produced with different particles or procedures.
Ignoring bypass
Assuming media performance proves finished-element performance.
Micron Rating RFQ Checklist
1. Define the particle target
State the size range and downstream protection objective.
2. Define the rating
Choose nominal, absolute or a named efficiency/beta requirement.
3. Name the method
Identify the accepted test and reporting basis.
4. Add process duty
Provide medium, viscosity, flow, temperature and differential pressure.
5. Define the element
Add media, layers, supports, dimensions, seals, quantity and acceptance.
For oil duty, also review the oil filtration mesh selection page. For general media procurement, see stainless steel mesh for filtration.
Make the Rating Verifiable in the RFQ
Attach the rating definition, test method, complete media or element construction, process data and acceptance requirement. If a supplier value comes from a different method, request clarification instead of converting it informally.
Nominal vs Absolute Micron Rating FAQ
A nominal micron rating generally indicates that a filter removes a stated proportion of particles around a stated size under defined conditions. The percentage, challenge material, fluid and test method must be identified because nominal has no single universal efficiency definition.
An absolute rating is intended to describe a stricter retention threshold, but the term alone is still incomplete. Ask for the efficiency or beta ratio, particle-size basis, test method and operating conditions behind the value.
It is normally intended to represent a higher retention threshold, but the two values cannot be compared reliably unless their definitions and tests are known. The same micron label can come from different procedures and media.
No. Aperture is a geometric opening. A filtration rating describes particle retention under a stated definition or test. Particle shape, pore path, loading, pressure and the complete assembly can make operating results differ from a simple opening value.
State the particle target, nominal or absolute basis, required efficiency or beta ratio, named test method, medium, viscosity, temperature, flow, differential pressure, media construction, finished dimensions, seals, quantity and acceptance requirements.
They may use different rating definitions, test dust or particles, fluid conditions, sample geometry, efficiency thresholds, pore estimates or production tolerances. Compare the test basis and complete construction, not only the micron number.
