Dutch Weave Mesh Micron Rating Guide
Dutch weave mesh micron rating is an important factor when selecting filter mesh for oil filtration, chemical processing, polymer filtration and industrial filtration systems. Understanding micron ratings helps buyers choose the right mesh specification for filtration accuracy and flow performance.
What Is Dutch Weave Mesh Micron Rating?
Micron rating refers to the approximate size of particles that a filter mesh can retain. One micron equals one millionth of a meter (0.001 mm). In filtration systems, micron rating is commonly used to describe filtration accuracy.

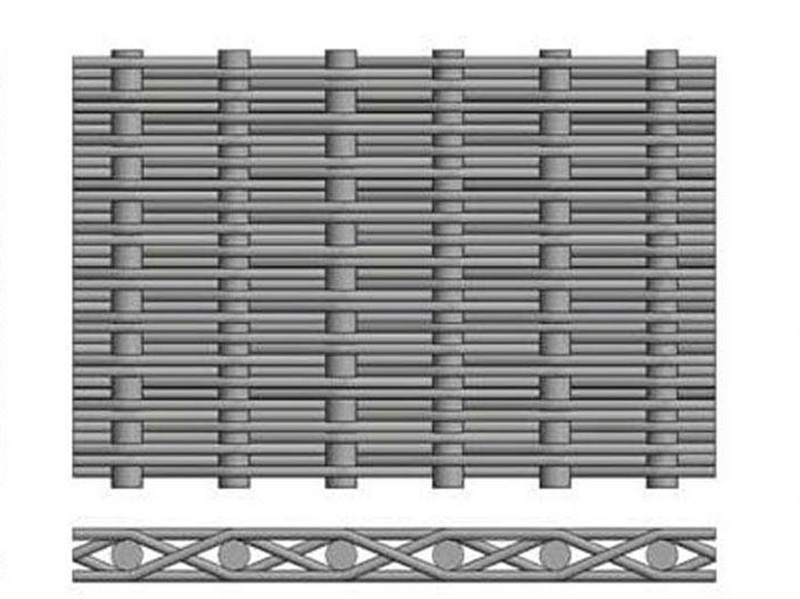

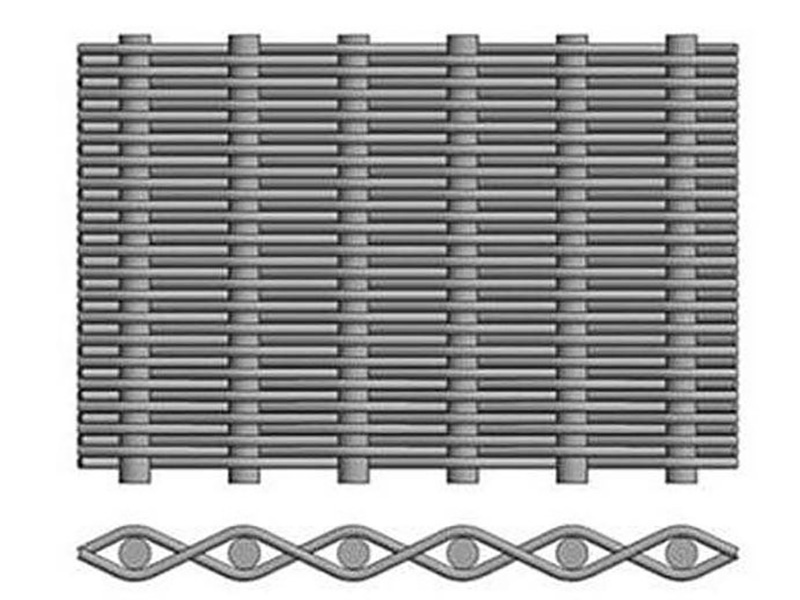

Dutch weave mesh achieves fine micron ratings through its dense woven structure. Compared with standard square woven mesh, dutch weave mesh provides smaller filtration openings and improved particle retention performance.
The actual micron rating depends on mesh count, wire diameter, weave type and operating conditions. Therefore, micron values should be used as a reference rather than an absolute filtration guarantee.
Common Dutch Weave Mesh Micron Ratings
Different dutch weave mesh specifications provide different filtration ranges. The actual micron rating depends on mesh count, wire diameter, weave structure and filtration conditions.
| Mesh Specification | Approximate Micron Rating |
|---|---|
| 24×110 Dutch Weave | 150 – 200 micron |
| 50×250 Dutch Weave | 70 – 100 micron |
| 80×700 Dutch Weave | 40 – 70 micron |
| 165×1400 Dutch Weave | 20 – 40 micron |
| 200×1400 Dutch Weave | 15 – 30 micron |
| 325×2300 Dutch Weave | 5 – 15 micron |
| 400×2800 Dutch Weave | 2 – 10 micron |
Micron ratings are approximate values and may vary depending on wire diameter, weave structure and operating conditions.
Micron Rating vs Mesh Count
Many buyers assume that mesh count and micron rating are the same, but they are different measurements.
- Mesh count refers to the number of openings per inch.
- Micron rating refers to the approximate particle size retained by the filter.
- Two meshes with similar mesh counts may have different micron ratings because of different wire diameters and weave structures.
Common Filtration Applications by Micron Rating
- 100–200 micron → Coarse liquid filtration
- 40–100 micron → Industrial oil filtration
- 20–40 micron → Chemical filtration
- 10–20 micron → Fine filtration systems
- 2–10 micron → Precision filtration and polymer filtration
How to Choose the Right Dutch Weave Mesh Micron Rating
Selecting the correct dutch weave mesh micron rating depends on the filtration accuracy required, the type of material being filtered and the operating conditions of the filtration system.
Consider the Filtration Target
The first step is to identify the particle size that needs to be removed from the process stream. Finer particles require lower micron ratings, while larger contaminants can be filtered using coarser mesh specifications.
For example:
- 100–200 micron → Coarse filtration
- 40–100 micron → General industrial filtration
- 10–40 micron → Fine filtration
- 2–10 micron → Precision filtration
Consider Flow Rate and Pressure
A lower micron rating usually means smaller openings and higher filtration efficiency. However, finer filtration may also reduce flow rate and increase pressure drop.
The correct balance between filtration accuracy and flow performance is important for long-term operation.
Consider the Application
Different industries typically use different micron ranges:
Oil Filtration
Usually 20–100 micron depending on the filtration stage.
Chemical Processing
Often 10–50 micron depending on product requirements.
Polymer Filtration
Commonly 2–20 micron for melt filtration and extrusion processes.
Fuel Filters
Usually 5–40 micron depending on filter design.
Need Help Selecting a Micron Rating?
If you are not sure which dutch weave mesh specification is suitable for your application, please provide:
- Filtration application
- Material being filtered
- Desired filtration accuracy
- Operating pressure
- Working temperature
- Flow rate requirements
Our team can recommend a suitable dutch weave mesh specification according to your filtration requirements.
Custom Dutch Weave Mesh Micron Solutions

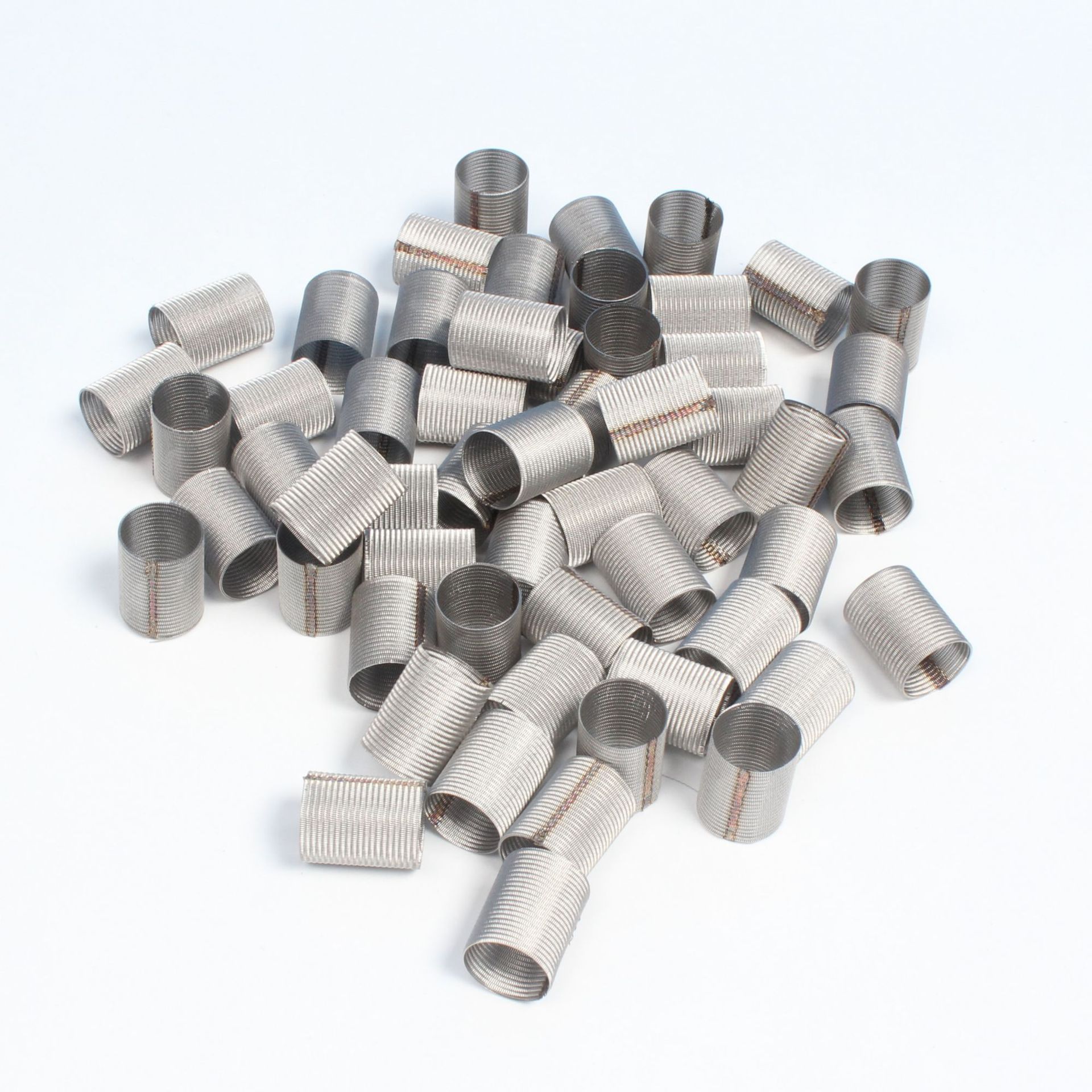

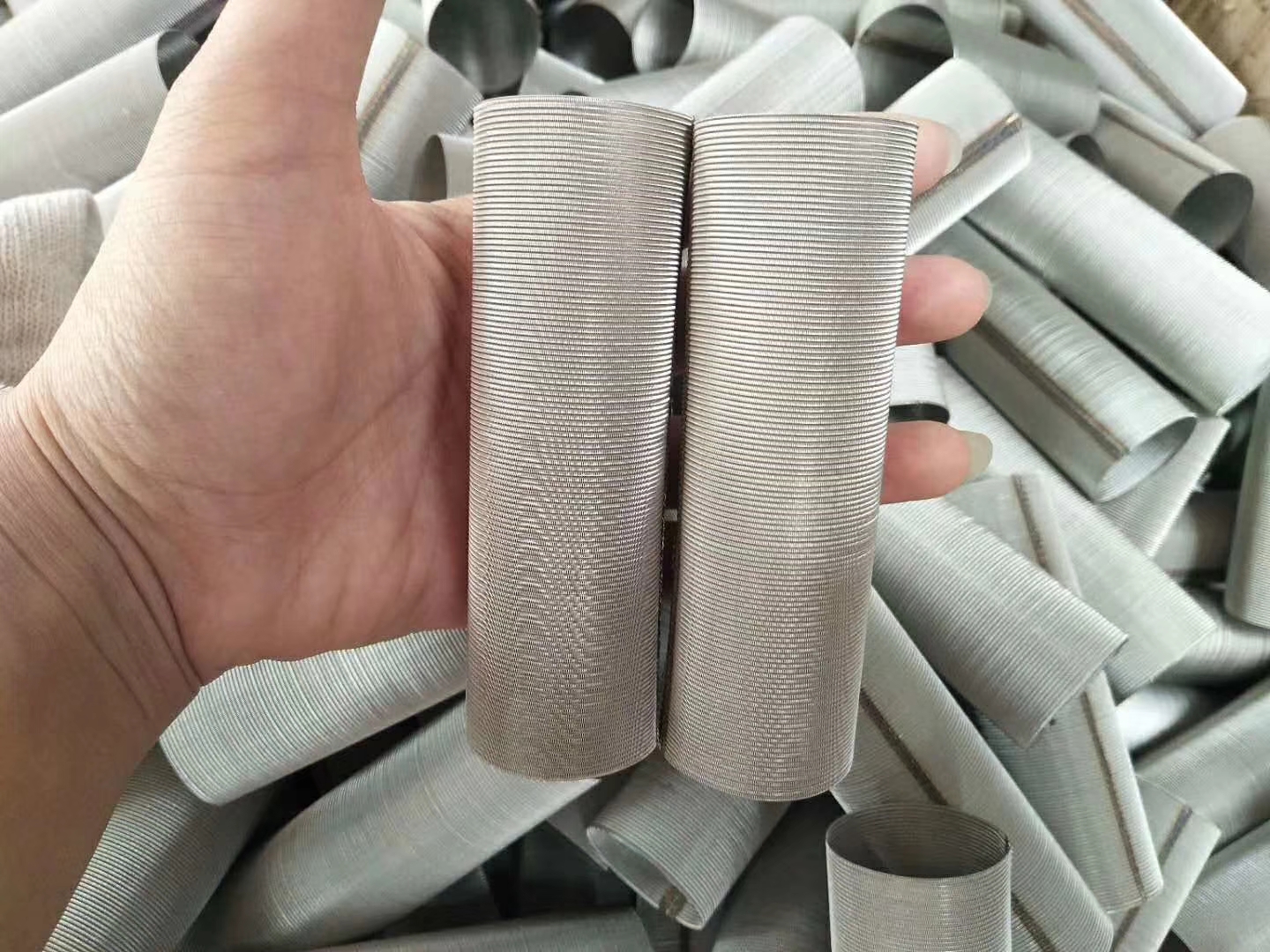

Dutch weave mesh can be supplied in different micron ratings according to filtration requirements. Depending on the application, the mesh can be supplied as rolls, sheets, filter discs, filter cylinders and custom fabricated filter components.
Common Micron Filtration Ranges
Coarse Filtration
- 100–200 micron
- Liquid filtration
- Pre-filtration systems
- Industrial screening
Medium Filtration
- 20–100 micron
- Oil filtration
- Chemical filtration
- Fuel filtration
Fine Filtration
- 5–20 micron
- Precision filtration
- Hydraulic oil filtration
- Industrial process filtration
Ultra Fine Filtration
- 2–10 micron
- Polymer melt filtration
- Extrusion screen packs
- High-precision filtration systems
Available Products
- Dutch weave mesh rolls
- Micron filter discs
- Filter cylinders
- Extrusion screen packs
- Multi-layer filter assemblies
- Custom fabricated filter components
Available Materials
- 304 stainless steel
- 316 stainless steel
- 316L stainless steel
Different material grades can be selected according to corrosion resistance, temperature and filtration requirements.
Need Help Choosing a Micron Rating?
Send us the following information:
- Filtration application
- Desired micron rating
- Material being filtered
- Working pressure
- Operating temperature
- Required quantity
- Drawing or sample if available
We can recommend a suitable dutch weave mesh specification based on your filtration requirements and help provide custom filter solutions.
