Differential Pressure Guide for Metal Filter Selection
Selecting a metal filter requires two different pressure checks: hydraulic resistance through the clean media and structural loading caused by differential pressure. State the fluid, flow, temperature, clean pressure drop, normal and maximum differential pressure, flow direction and reverse conditions on the same RFQ.
Direct Answer: Line Pressure, Pressure Drop and Differential Pressure Are Not Interchangeable
System line pressure
Absolute or gauge pressure at a system location; relevant to housings, joints and interfaces.
Clean pressure drop
Inlet-to-outlet loss through a clean element at a stated fluid, temperature and flow.
Operating differential pressure
Pressure difference across the element during normal contaminant loading.
Maximum / reverse differential
Highest stated load in normal, upset or reverse-flow direction.
Pressure Inputs Required in a Metal Filter RFQ
Every value needs its measurement condition. A pressure number without fluid, flow, temperature, direction and clean/loaded state cannot be compared reliably.
| Pressure input | How to state it | Selection effect |
|---|---|---|
| Clean pressure drop | Value at named fluid, viscosity/temperature, flow and clean condition | Media permeability, area and geometry comparison |
| Normal differential pressure | Expected working range and flow direction | Support side and routine structural load |
| Maximum differential pressure | Limit, direction, duration and event condition | Media span, support, seam and end-load review |
| Reverse / backwash differential | Reverse limit, pulse or duration and cleaning sequence | Bidirectional support and layer retention |
| Line pressure | Operating and design pressure where relevant to the assembly | Housing interface, caps, joints and seals |
| Acceptance point | Allowed pressure drop, deformation, integrity or flow criterion | Creates a verifiable requirement |
Fine Media and Structural Support Have Different Jobs

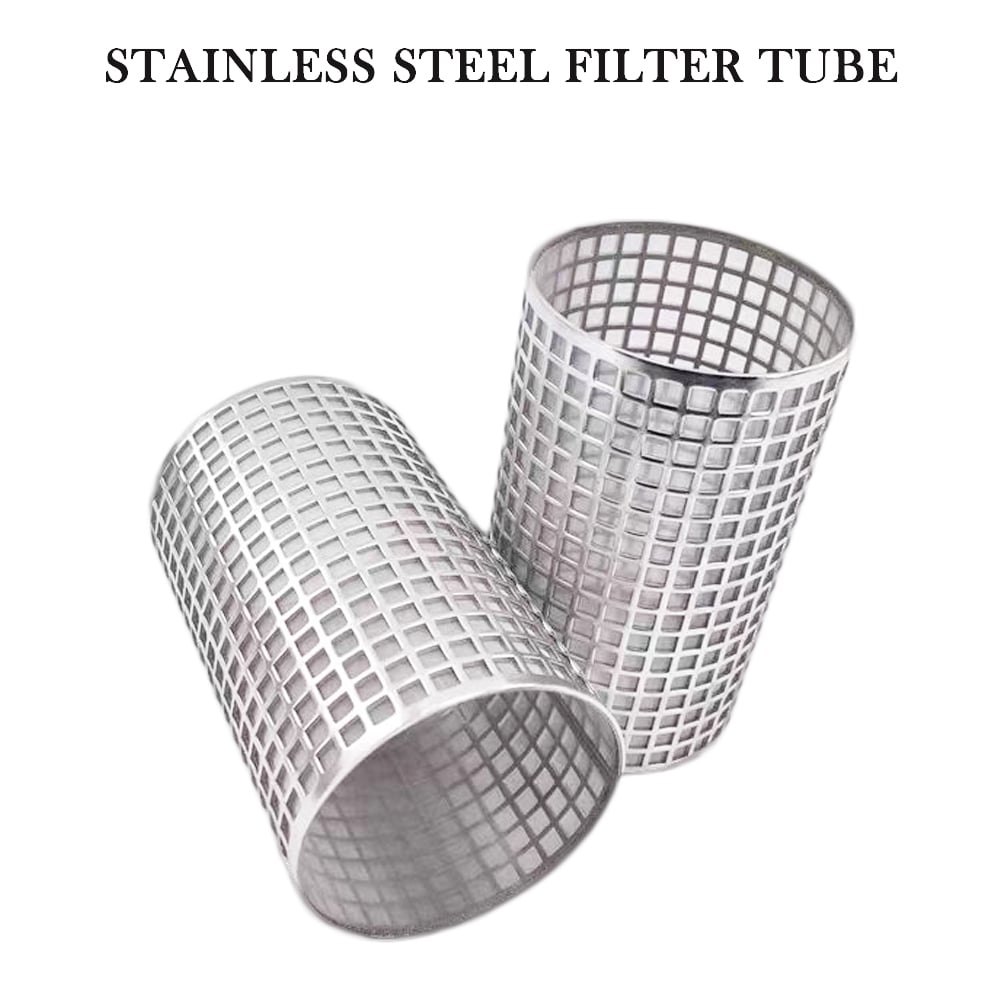

The woven mesh or porous layer controls retention and contributes flow resistance. A perforated tube, expanded metal or coarse mesh supports the fine media against pressure loading. Show layer order and which side sees higher pressure.
Use the filter flow-direction and support guide to mark inside-to-outside or outside-to-inside loading.
What Changes Clean Pressure Drop
Fluid properties
Viscosity, density, temperature and gas/liquid condition must be stated.
Media geometry
Aperture or pore structure, wire diameter, thickness and permeability affect resistance.
Effective area
Pleating and element dimensions change usable area, but supports and seals can mask part of it.
Contaminant loading
Pressure drop normally changes as material is retained; define the clean reference separately.
Clean Pressure Drop Test and Reporting Method
Measure a finished element as an installed flow component, not as an isolated mesh label. Use a clean element, a controlled fixture, stabilized test conditions and several flow points. Keep the upstream and downstream pressure taps fixed and far enough from local disturbances according to the agreed procedure.
| Test field | Record | Why it matters |
|---|---|---|
| Test medium | Fluid or gas identity, composition, density and viscosity where relevant | Resistance changes with fluid properties |
| Temperature | Stabilized medium and element temperature at each test series | Especially important for liquid viscosity |
| Flow points | Actual mass or volume flow, reference conditions and stabilization rule | Creates a comparable pressure-drop curve |
| Pressure measurement | Upstream/downstream tap locations, instrument range, units and calibration status | Separates element loss from uncertain measurement geometry |
| Fixture correction | Empty fixture or bypass tube loss and whether it was subtracted | Prevents housing and piping loss being assigned to the element |
| Element condition | Clean/dry or wetted state, orientation, flow direction, seals and drawing revision | Defines the tested article and boundary |
1. Baseline the fixture
Measure the empty fixture or a defined bypass tube over the same flow range.
2. Install the element
Use the specified seal, orientation, flow direction and assembly condition.
3. Stabilize each point
Record temperature, flow and inlet/outlet pressure only after the agreed stability rule.
4. Report the curve
Provide raw values, fixture correction, calculated element loss, units and drawing revision.
Media permeability helps explain resistance but does not replace a finished-element test. Compare the permeability vs micron-rating guide. Pressure-drop testing also differs from leak or integrity verification; use the metal filter element integrity testing guide for those acceptance questions.
What Changes Differential-Pressure Strength
Structural capacity is not a property of “stainless steel mesh” alone. It depends on unsupported span, diameter, length, media layers, support geometry, seams, welds, end connections, material condition, temperature and direction of load.
For a complete cross-product specification, see how to specify a custom wire mesh filter element. For drawing controls, use the filter element drawing checklist.
Pressure Questions by Filter Construction
Filter tube or cylinder
Check unsupported diameter/length, seam, support side, ends and bypass interface.
Pleated cartridge
Check media area, pleat stability, inner/outer cages, caps and end connections.
Filter disc
Check diameter, supported span, layers, edge/frame and seating direction.
Filter basket
Check open area, body support, bottom, seam, flange and debris loading.
Review the relevant product geometry: stainless steel filter tubes, pleated filter cartridges, filter discs and custom filter baskets.
Real Maidong Filter Examples: Pressure Duty Must Follow the Drawing
These are real Maidong filter forms, not universal pressure ratings. Each configuration needs its own media, support, seam, end and operating-duty review.

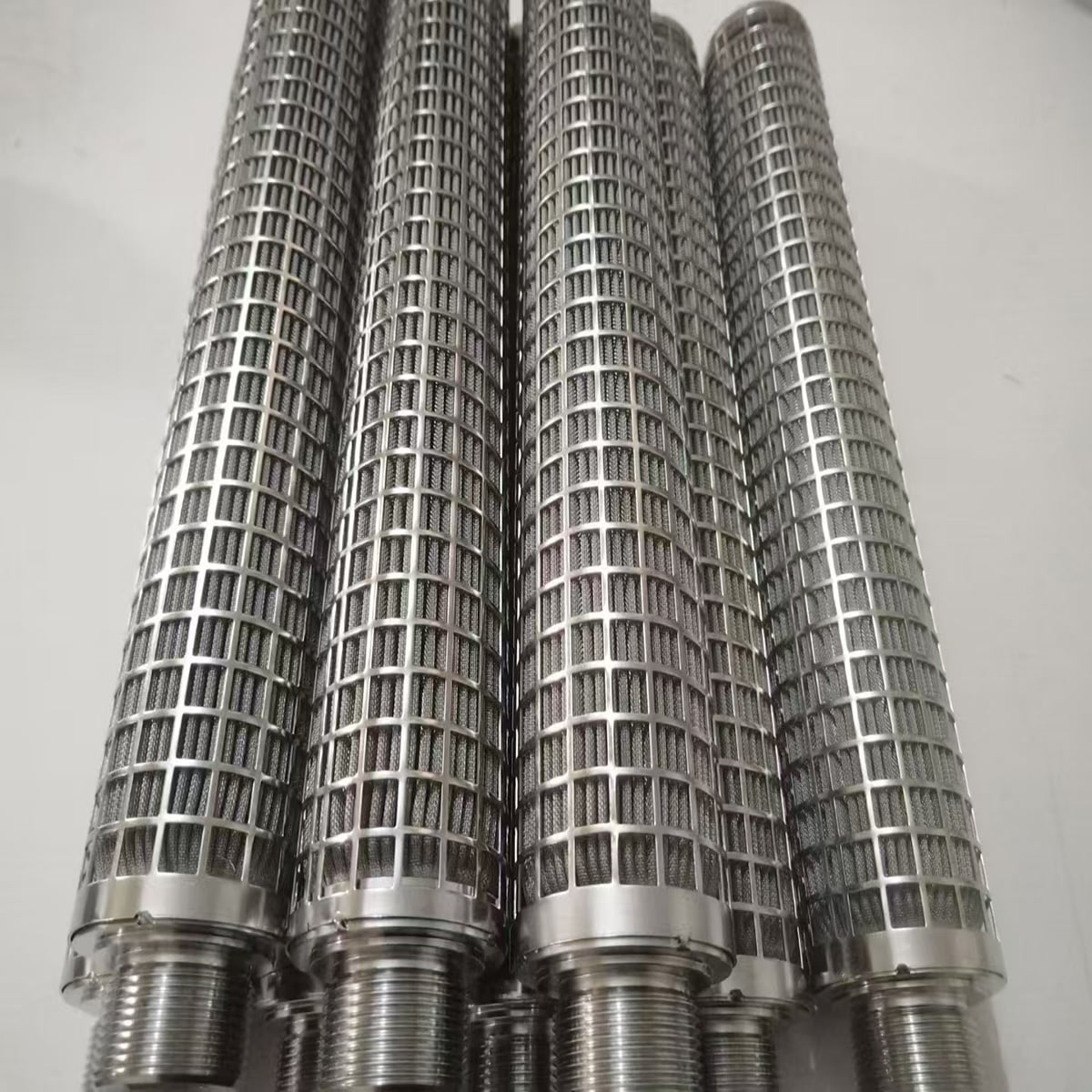

Supported cylindrical elements

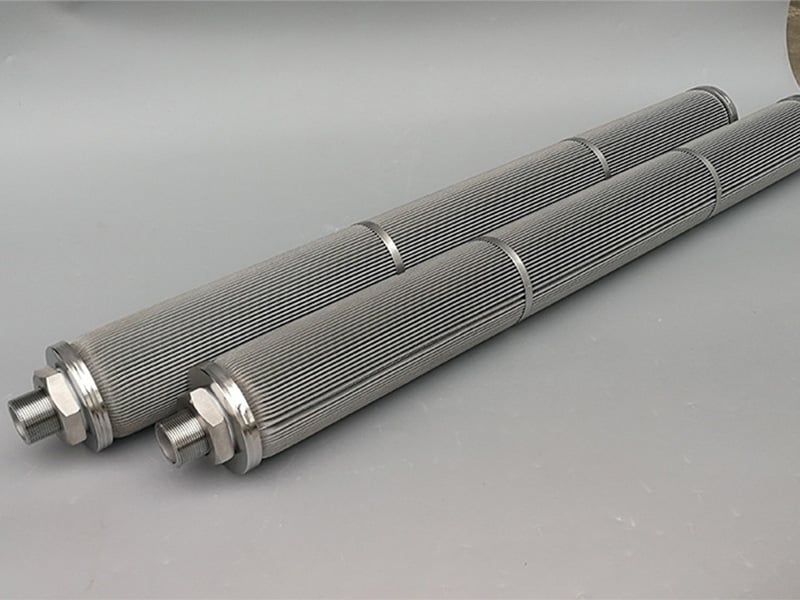

Pleated cartridge structures

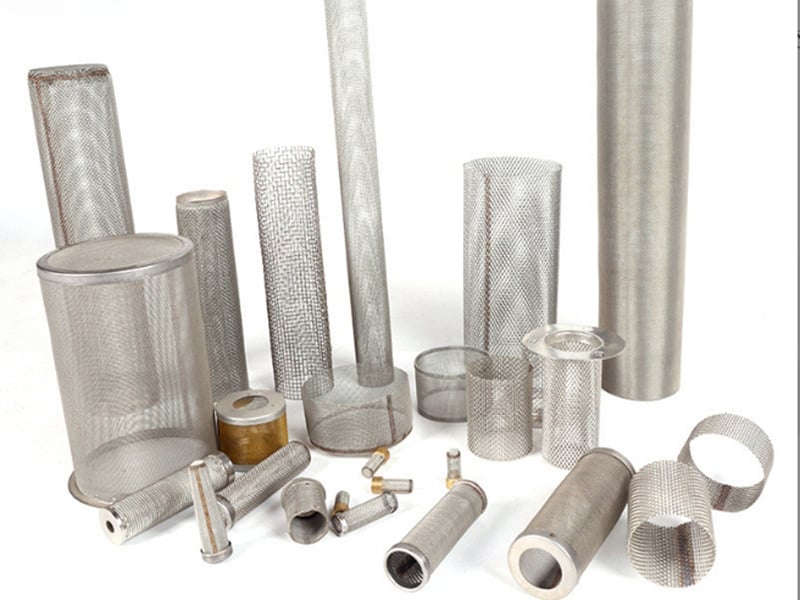

Mesh filter geometries

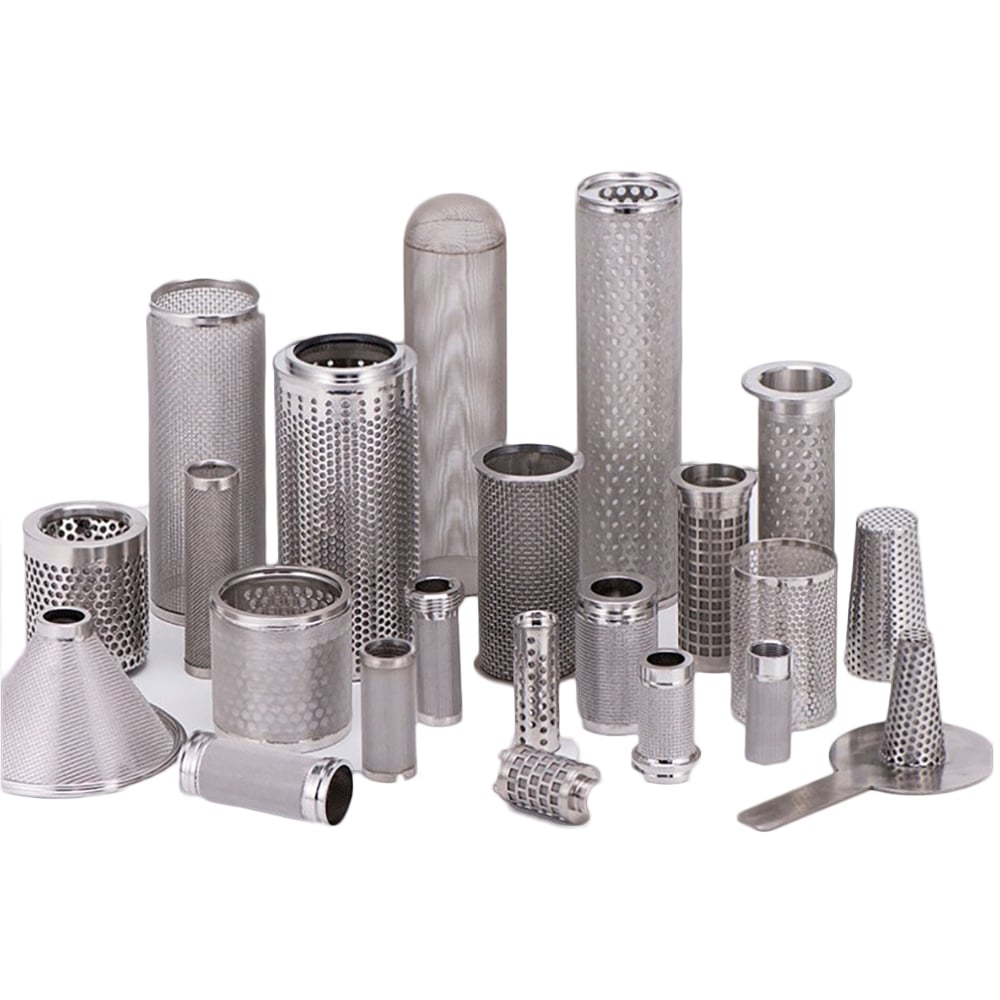

Drawing-based configurations
Common RFQ Mistakes
Giving only line pressure
It does not state the load acting across the filter media.
Giving only a micron value
Retention does not define flow resistance or structural support.
Omitting reverse flow
Backwash can load the media from the unsupported side.
Using an unqualified pressure limit
Direction, duration, temperature and element condition are missing.
Metal Filter Differential-Pressure RFQ Checklist
1. Define the process
Fluid/gas, viscosity, temperature, contaminants and flow.
2. Define filtration
Particle target, aperture or rating and test basis.
3. State pressure conditions
Clean drop, normal/max differential, line and reverse pressure.
4. Mark the structure
Flow direction, media, layer order, supports, seams and ends.
5. Define acceptance
Dimensions, pressure/flow criterion, inspection, quantity and drawing revision.
Metal Filter Differential Pressure FAQ
Differential pressure is the pressure difference between the upstream and downstream sides of the filter element. It is not the same as the system line pressure, although both may be needed for the complete equipment review.
Clean pressure drop describes flow resistance through a clean element at stated fluid and flow conditions. Maximum differential pressure is the highest pressure difference the element is expected to withstand in the stated direction and condition.
Flow direction identifies which side of the fine media sees the higher pressure and where structural support is needed. Inside-to-outside and outside-to-inside loading can require different layer arrangements.
Yes, whenever reverse flow, pulse cleaning or backwashing can occur. State the reverse differential pressure and duration separately because the normal-flow support arrangement may not protect the media in reverse.
No. Allowable load depends on media, wire and opening, diameter, unsupported span, supports, seams, end connections, flow direction, temperature and fabrication. A mesh designation alone is insufficient.
Provide line pressure where relevant, clean inlet and outlet pressure or clean pressure drop, normal and maximum differential pressure, upset and reverse conditions, flow direction, duration, fluid, viscosity, temperature and flow rate.
Use a defined test fluid, temperature, stabilized flow points, calibrated upstream and downstream pressure measurements, the installed flow direction and the complete element fixture. Report whether empty-fixture pressure loss was measured and subtracted; do not compare values collected under different conditions as though they were equivalent.
Prepare a Pressure-Duty Filter RFQ
Send the fluid, flow, temperature, filtration target, clean pressure drop, differential-pressure conditions, flow direction, support, drawing and quantity for review.
