Custom Stainless Steel Filter Cylinder Manufacturer
Maidong reviews custom stainless steel filter cylinders as complete assemblies: filtration media, support, diameter, length, seam, ends, flow direction and operating duty must work together.
A Filter Cylinder Is More Than Rolled Mesh
The filter medium controls particle passage; the cylindrical body, support and joining details control fit and mechanical stability. This page covers complete stainless steel cylinder assemblies. For wire-media terminology and OEM-focused variants, see wire mesh filter cylinders.
Filtration layer
Square mesh, Dutch weave or another specified metal medium.
Structural support
Perforated, expanded or coarse woven backing where required.
Cylinder geometry
OD/ID, length, roundness, seam and layer orientation.
Equipment interface
Open ends, caps, rings, flanges, collars or drawing features.
Stainless Steel Filter Cylinder Specification Checklist
Use complete assembly data when requesting a quotation; diameter and mesh count alone are not sufficient.
| RFQ field | What to provide | Why it matters |
|---|---|---|
| Dimensions | OD, ID, length, wall build-up, roundness and tolerances | Fit, sealing and effective area |
| Filter media | Weave, mesh count + wire diameter or aperture, alloy and layers | Filtration geometry |
| Support | Material, thickness, opening pattern, support side and open area | Resistance to deformation |
| Seam and ends | Longitudinal joint, caps, rings, flanges and joining method | Strength, bypass control and installation |
| Process duty | Fluid/gas, temperature, flow, differential pressure and cleaning | Construction and material review |
| Acceptance | Drawing revision, quantity, inspection and documentation | Verifiable purchase specification |
Media and Support Configurations
Unsupported woven mesh can suit appropriate lower-load duties. Supported mesh combines fine media with coarse mesh, perforated sheet or expanded metal. A perforated or expanded cylinder may also act as the primary screen where its opening matches the duty.
For dedicated perforated construction, review perforated filter tubes.
Available Cylinder End and Body Configurations
Open-end cylinder
Simple tubular screen with drawing-defined edges and seam.
Capped element
One or both ends closed by caps or formed mesh ends.
Flanged cylinder
Flange used for mounting, sealing or removal.
Conical or stepped form
Drawing-based geometry for equipment-specific interfaces.
Material and Filtration Selection
304, 316 and 316L are common stainless steel enquiries, subject to process compatibility. Review the 304 vs 316 guide.
For square mesh, specify mesh count and wire diameter together. For Dutch weave or multilayer media, provide construction-specific pore or retention data. The filtration mesh page explains the main media choices.
Real Stainless Steel Cylinder Examples

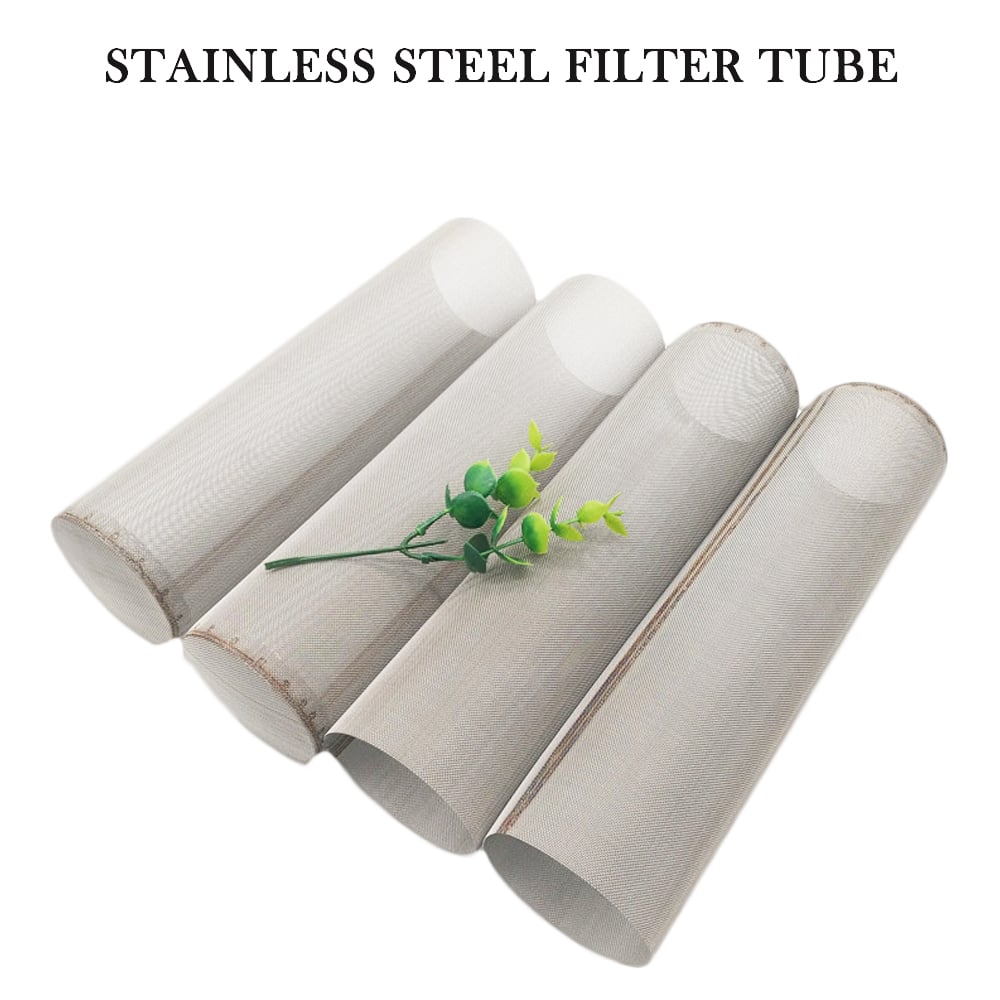

Woven mesh cylinders

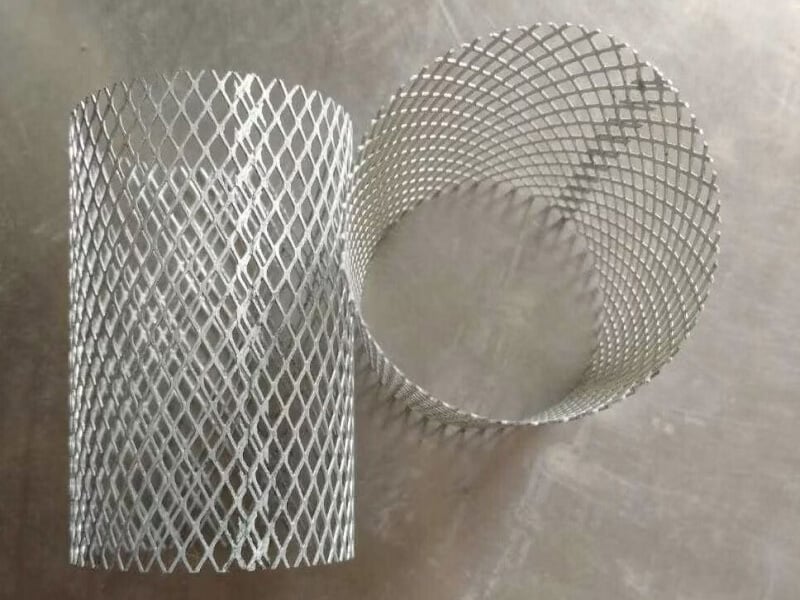

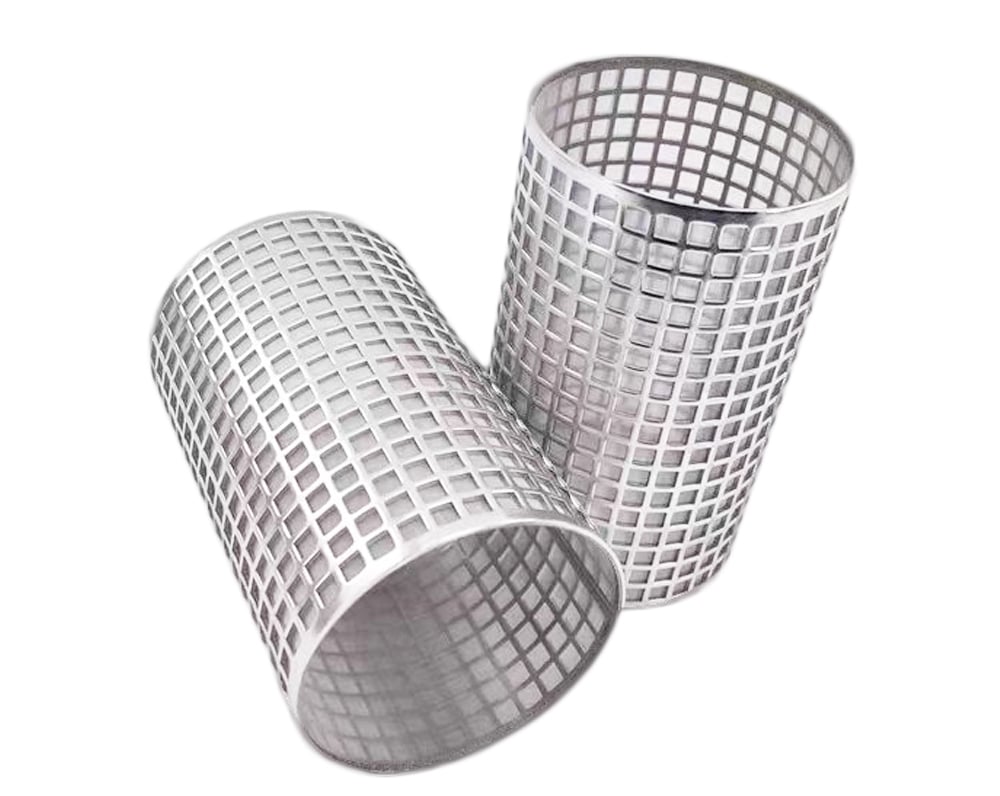

Perforated and supported forms

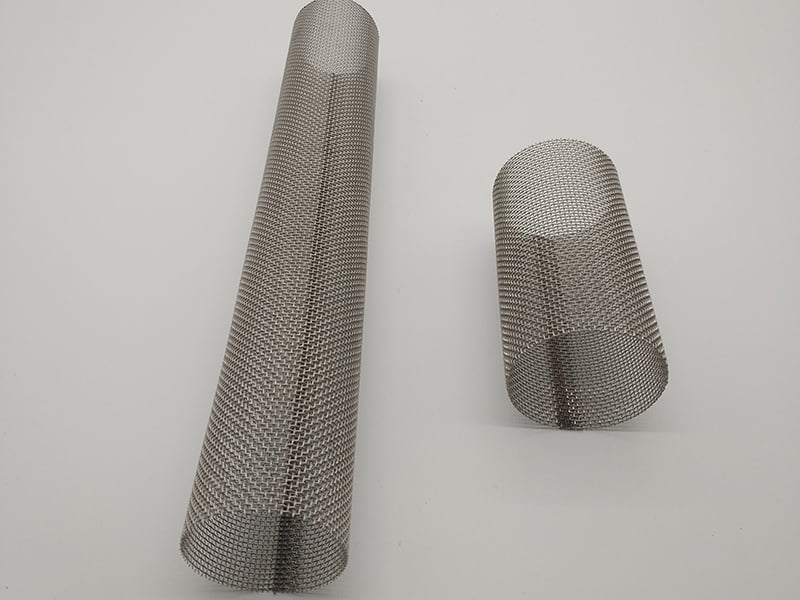

Conical drawing-based screens

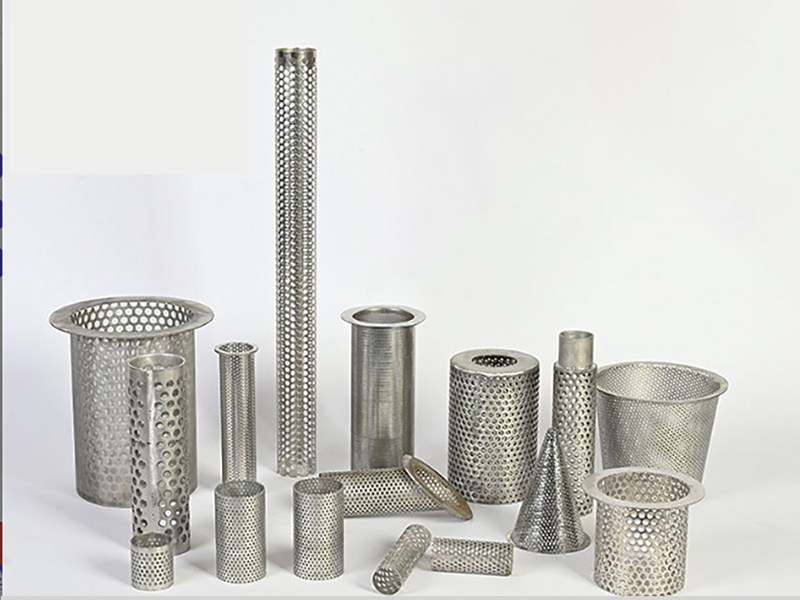

These real Maidong product examples show different media, supports, ends and geometries. They are configuration references; final construction must follow the approved drawing.
Typical Industrial Uses
Liquid process filtration
Cylinder assemblies used where the specified media and housing suit the liquid duty.
Gas and air screening
Metal screens reviewed for particle, temperature and pressure conditions.
Equipment protection
Upstream screens for passages, valves, pumps or nozzles.
Separation and straining
Cylindrical screens used where geometry and flow suit the process.
How to Prepare a Custom Filter Cylinder RFQ
1. Send the drawing
Include dimensions, tolerances, ends and equipment interface.
2. Define the media
State weave, aperture/rating, alloy and layer sequence.
3. Define support
Show support side, pattern, thickness and flow direction.
4. Define joining
Specify seam, caps, rings, flanges and acceptable method.
5. Add process data
Provide medium, temperature, pressure, cleaning and quantity.
Choose Cylinder or Tube Terminology by the Drawing
Industrial buyers use cylinder and tube interchangeably, but the drawing should control the quotation. For the broader tube family, see stainless steel filter tubes. For navigation product coverage, see mesh cylinders.
Stainless Steel Filter Cylinder FAQ
It is a cylindrical screening or filtration component made from woven mesh, perforated metal, expanded metal or a supported combination. The media, support, seam and ends must be specified as one assembly.
Provide OD or ID as applicable, length, media construction, mesh count and wire diameter or aperture, support, seam, end geometry, tolerances, flow direction, operating conditions and quantity.
Support should be reviewed when fine media may deform during pressure loading, cleaning, installation or handling. State which side sees the higher pressure and how the layers are joined.
Perforated and expanded metal can act as the screening body or as support for finer mesh, subject to the hole/opening pattern, thickness, open area and mechanical duty.
304, 316 and 316L are common enquiries. Final selection must consider the actual fluid, temperature, cleaning chemistry and corrosion conditions.
Drawing-based rings, caps, flanges, collars, handles and connection features can be reviewed. Include all interface dimensions, tolerances and joining requirements.
Request a Custom Filter Cylinder Quotation
Send the media, support, dimensions, seam, ends, flow direction, operating duty, tolerances and quantity for review.
