Precision Screening Mesh for Industrial Sieving
Precision screening starts with measurable requirements—not a generic accuracy claim. Define the clear aperture, wire diameter, weave, alloy, opening tolerance, screen dimensions, edge construction, tensioning and operating duty before requesting a quotation.
What Makes a Screening Mesh Precise?
A useful precision specification tells the supplier what is to be controlled and how it will be checked. For particle classification, the mesh opening and its distribution matter; for installation, overall dimensions, edge form, flatness and tension can be equally important.
Defined aperture
State clear opening or complete mesh-count and wire-diameter data.
Controlled construction
Identify weave, alloy, wire condition and applicable dimensional standard.
Agreed inspection
Define sampling, measurement method, report and acceptance criteria.
Correct installation
Specify frame, hooks, edge preparation, tension and flow or vibration duty.
Precision Screening Mesh Specification Matrix
Use one controlled drawing or purchase specification. Where a value is not yet known, identify it for review instead of replacing it with a marketing adjective.
| RFQ field | What to provide | Why it matters |
|---|---|---|
| Separation target | Particle size, shape, distribution and what must pass or be retained | Connects mesh geometry to the actual duty |
| Mesh geometry | Aperture, wire diameter, mesh count and open area where applicable | Prevents ambiguity from mesh count alone |
| Material and weave | Alloy/standard and plain, twill or agreed construction | Defines corrosion context and fabric geometry |
| Finished format | Roll, cut panel, disc, cylinder or framed screen; dimensions and tolerances | Controls fit and conversion requirements |
| Operating duty | Dry/wet, temperature, vibration, loading, cleaning and pressure differential | Supports selection of wire, support and edge construction |
| Inspection | Standard, sampling, measurement, records and acceptance limits | Turns “precision” into verifiable criteria |

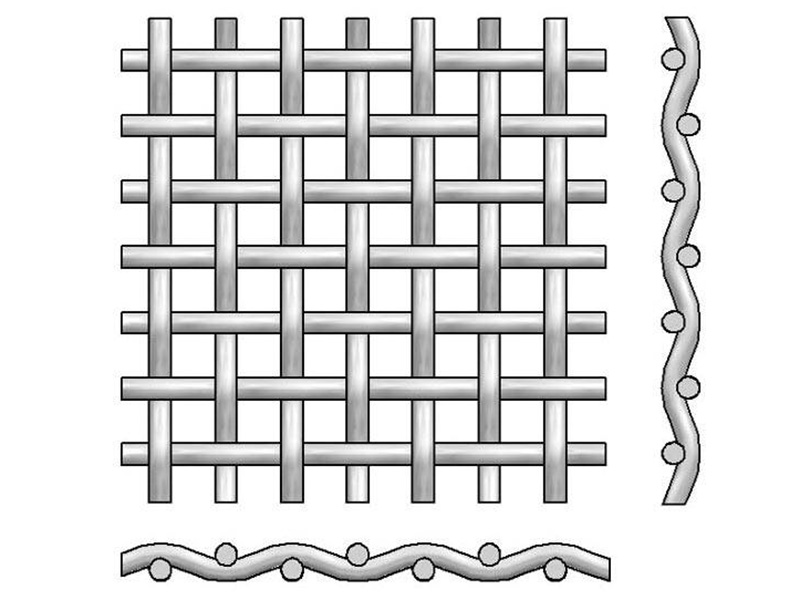

Mesh, Aperture, Wire Diameter and Open Area
For ideal square woven mesh, aperture (mm) ≈ 25.4 ÷ mesh count − wire diameter (mm). Open area is then related to the square of aperture divided by pitch. These calculations are useful for preliminary selection, but actual supplied mesh remains subject to weave geometry, wire tolerances and the agreed inspection method.
Use the stainless steel wire mesh size chart and mesh-to-micron calculator for early comparison.
Available Screening Mesh Supply Formats
Woven mesh rolls
Specify width, length, edge condition, winding and packing requirements.
Cut sheets and panels
Provide finished length, width, squareness, flatness and edge treatment.
Discs and shaped screens
Send drawing, outside dimensions, central holes, rim or layer details.
Cylinders and framed screens
Define seam, support, ends, frame interface, flow direction and tolerances.
Industrial Screening Applications
Powder classification
Dry screening where particle distribution, loading and blinding tendency must be described.
Granule sizing
Separation or protection duties requiring a defined pass/retain target.
Process-liquid straining
Wet screening where viscosity, temperature, chemistry and cleaning affect selection.
Equipment protection
Screens used upstream of nozzles, valves, pumps or process equipment to retain debris.
Application examples describe possible duties, not guaranteed performance. Screening efficiency and service life depend on the complete machine, feed, loading, installation and operating conditions.
How to Choose a Screening Mesh
1. Define the cut objective. State what must pass and what must be retained.
2. Select geometry. Compare aperture, wire diameter, open area and weave.
3. Review material. Match the alloy to process and cleaning chemistry; see 304 vs 316 stainless steel mesh.
4. Engineer the finished screen. Add dimensions, edges, supports, seams and tensioning.
5. Agree verification. Put the inspection and acceptance criteria on the RFQ.
Real Maidong Screening Mesh Examples

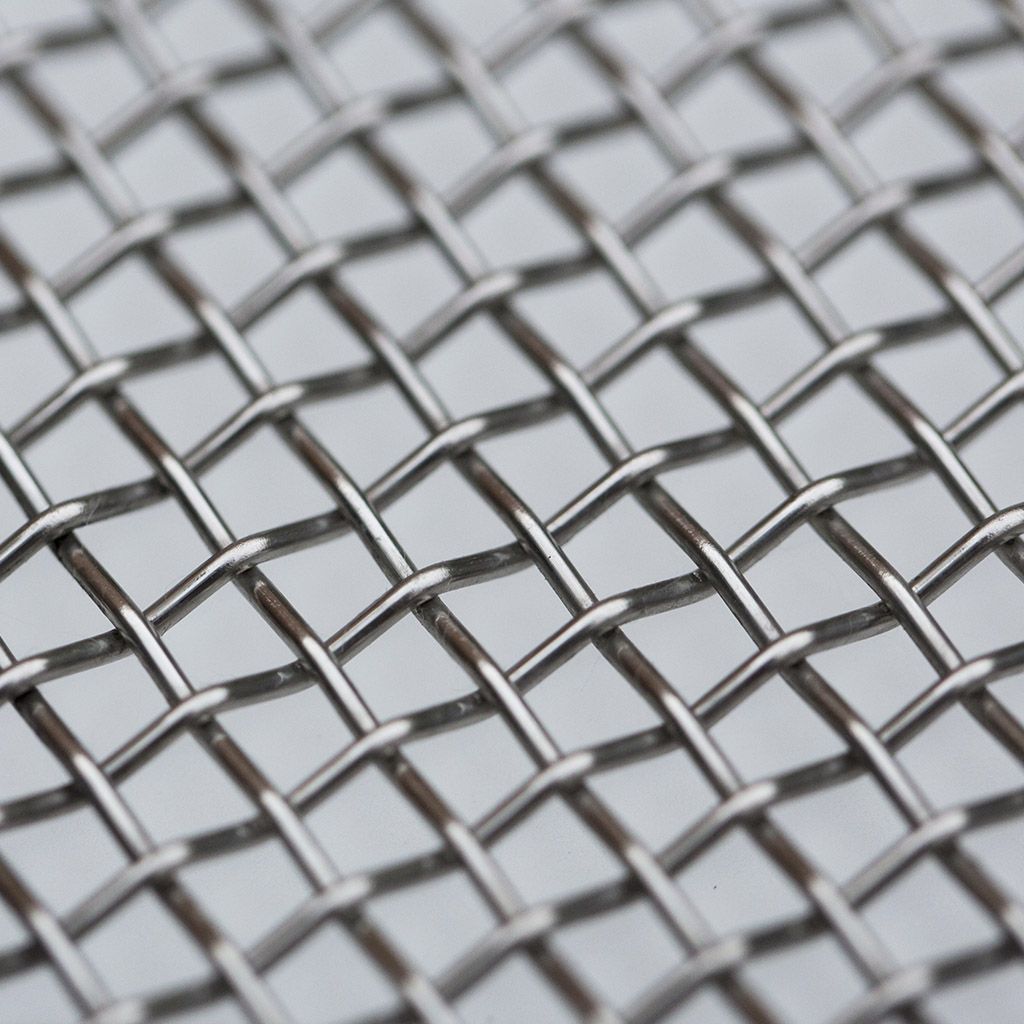

Opening detail

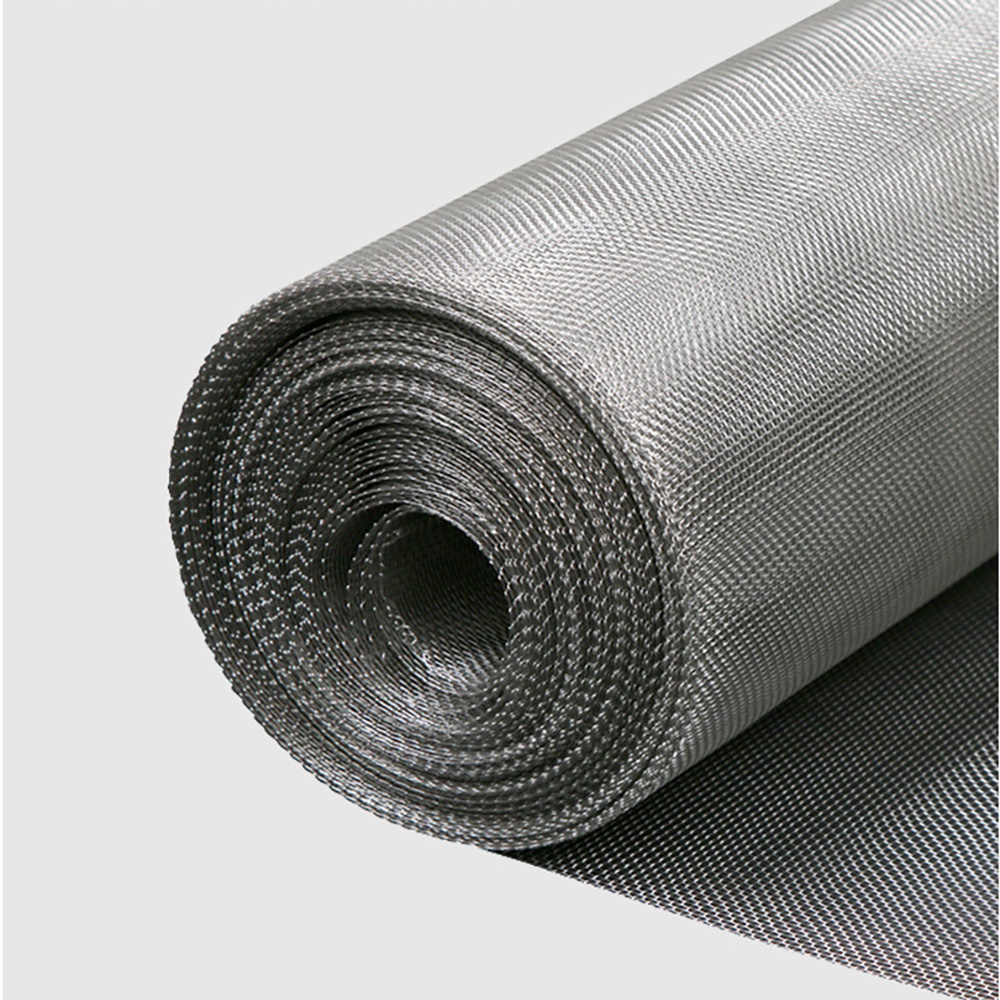

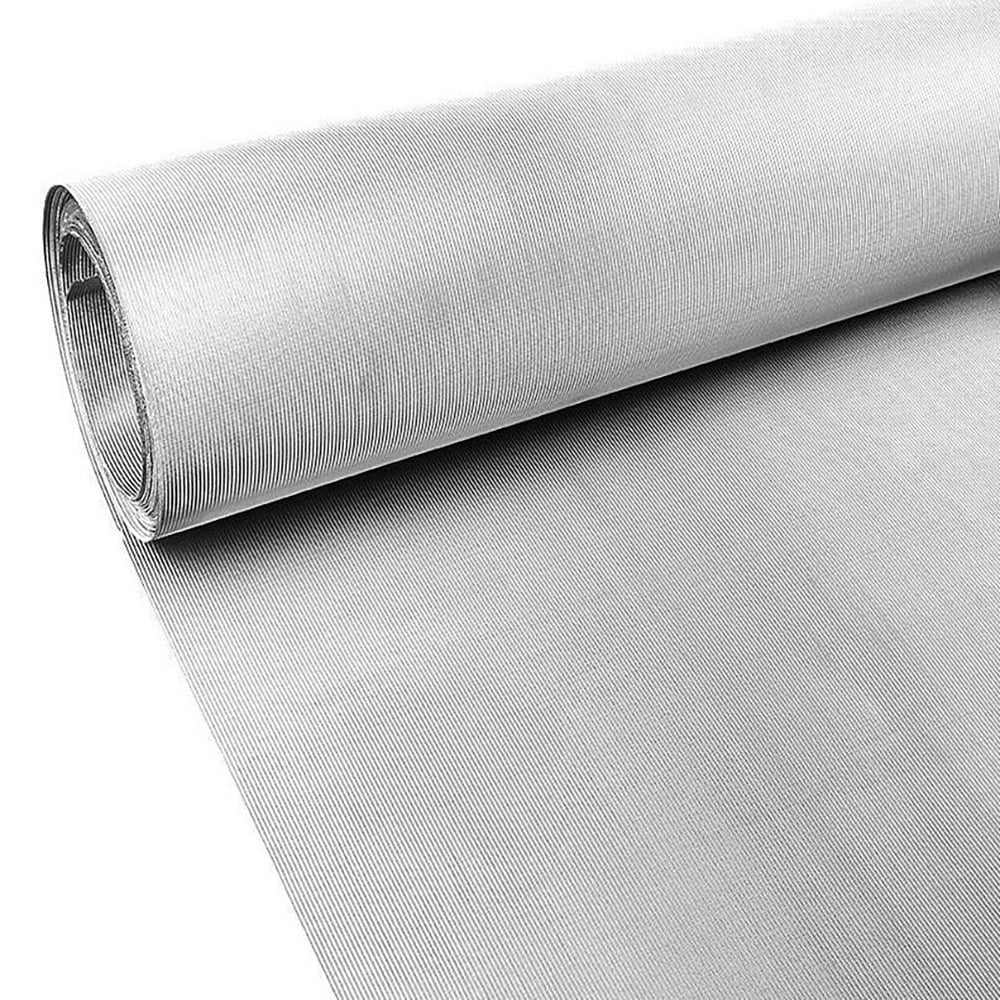

Woven mesh roll

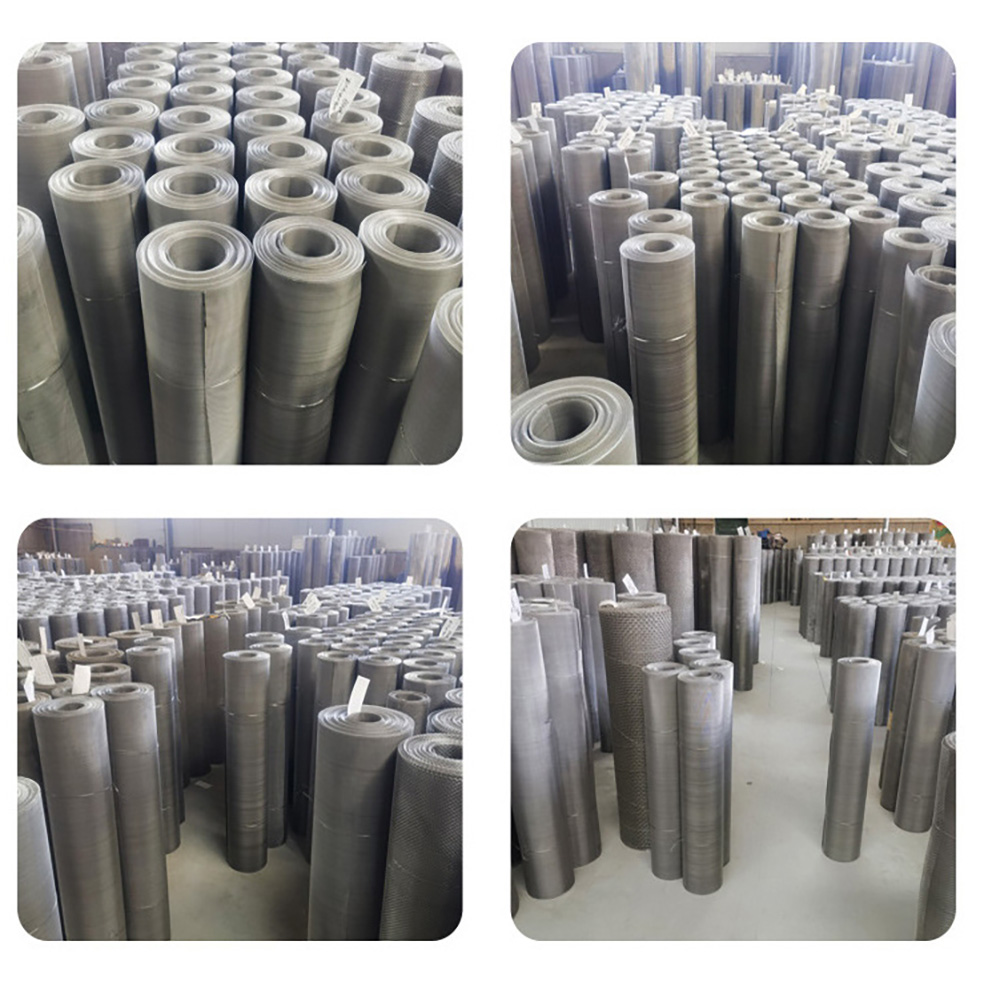

Industrial mesh rolls
These photos show real Maidong woven mesh materials and supply forms. Final aperture, wire, alloy, dimensions and inspection requirements must be confirmed for each order.
Prepare a Complete Screening Mesh RFQ
Particle data
Target size, distribution, shape, moisture and loading.
Mesh data
Aperture/rating basis, wire diameter, count, weave and alloy.
Finished screen
Roll/panel size, frame, hooks, edges, support, seams and tolerance.
Duty and inspection
Dry/wet duty, vibration, temperature, cleaning, standard and quantity.
For base material options, review stainless steel wire mesh and stainless steel mesh rolls. For fabricated cylindrical forms, see wire mesh filter cylinders.
Precision Screening Mesh FAQ
It means the screen is specified and evaluated against defined opening, wire, weave, dimensional and inspection requirements. The word precision alone is not a measurable purchase specification.
No. Mesh count must be paired with wire diameter or clear aperture. Two meshes with the same count can have different openings and open areas.
For an ideal square mesh, aperture in millimetres is approximately 25.4 divided by mesh count minus wire diameter in millimetres. Actual supplied mesh should be confirmed by the agreed standard and inspection method.
Select the alloy from the process environment, temperature, cleaning chemistry and corrosion exposure. The grade name does not replace a compatibility review.
Opening distribution, wire diameter, weave, tension, flatness, edge condition, frame support, particle shape, loading, vibration and blinding can all affect screening behaviour.
Provide particle target, required aperture or rating basis, mesh and wire data, alloy, weave, roll or panel size, edge or hook details, tensioning method, operating conditions, inspection requirements and quantity.
Request a Screening Mesh Specification Review
Send particle data, aperture or mesh/wire requirements, alloy, finished dimensions, edge or frame details, operating conditions, inspection criteria and quantity.
