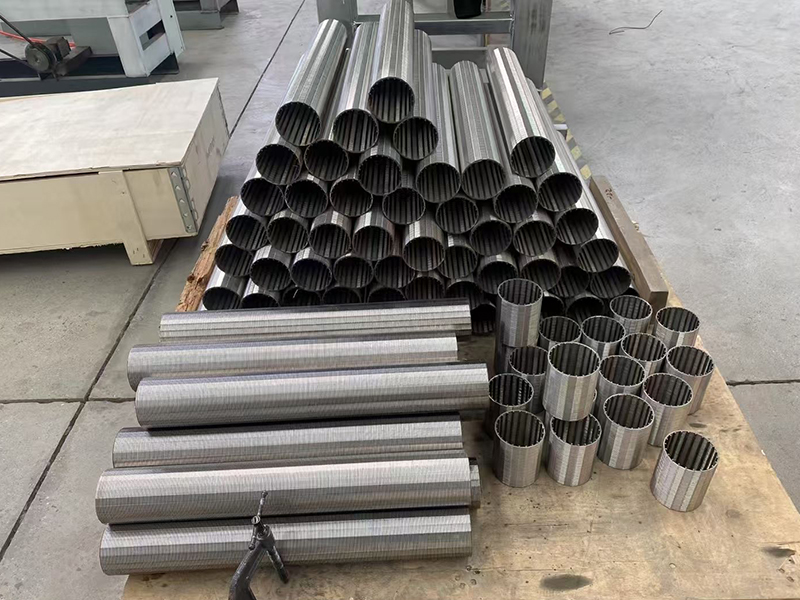

Wire Mesh Filter Tubes
Precision manufactured wire mesh filter tubes for liquid, gas and solid filtration applications.
Custom Wire Mesh Filter Tubes for Industrial Filtration
Maidong Metal manufactures custom wire mesh filter tubes using stainless steel woven wire mesh for demanding industrial filtration applications.
Available in various mesh counts, micron ratings and welding structures, our filter tubes are widely used in hydraulic systems, water treatment, chemical processing and food production equipment.
✔ Stainless Steel 304 & 316 Materials
✔ 1μm – 1000μm Filtration Rating
✔ Custom Diameter & Length
✔ OEM Manufacturing Service
Technical Specifications
Our wire mesh filter tubes are manufactured from stainless steel woven wire mesh and are available in various mesh counts, micron ratings and fabrication options for industrial filtration applications.
Custom dimensions, mesh specifications and welding methods are available according to customer drawings and filtration requirements.
| Item | Specification |
|---|---|
| Material | Stainless Steel 304, 304L, 316, 316L |
| Filter Media | Plain Weave Mesh, Twill Weave Mesh, Dutch Weave Mesh |
| Mesh Count | 2 Mesh – 635 Mesh |
| Filtration Rating | 1μm – 500μm |
| Tube Diameter | 10mm – 500mm |
| Tube Length | 20mm – 2000mm |
| Structure Type | Single Layer, Double Layer, Multi-layer |
| Welding Method | Spot Welding, Seam Welding, TIG Welding |
| Edge Treatment | Plain Edge, Rolled Edge, Flanged Edge |
| Surface Finish | Cleaning, Polishing, Electrolytic Polishing |
| Custom Service | OEM & ODM Available |
Need a custom filter tube? Send us your drawing or sample for evaluation.
Applications of Wire Mesh Filter Tubes
Wire mesh filter tubes are widely used in industrial filtration systems where precise particle retention, high flow rates and long service life are required.
Manufactured from stainless steel woven wire mesh, these filter tubes provide reliable filtration performance for liquid, gas and solid separation applications.
Hydraulic Filtration
Used for hydraulic oil filtration and equipment protection in hydraulic systems.
Water Treatment
Suitable for water purification, wastewater treatment and desalination systems.
Chemical Processing
Provides reliable filtration performance in corrosive and high-temperature environments.
Food & Beverage
Used in food processing, beverage production and sanitary filtration systems.
Air & Gas Filtration
Applied in compressed air systems, gas purification and dust collection equipment
Petrochemical Industry
Used for catalyst recovery, process filtration and refinery applications.
For complete filtration solutions, please also explore our stainless steel filter tubes, filter discs and sintered filter elements.
Wire Mesh Filter Tube Manufacturing Process
From raw material selection to final inspection, every wire mesh filter tube is manufactured under strict quality control procedures to ensure filtration accuracy, dimensional consistency and reliable performance.
01 Material Selection
Selection of stainless steel woven wire mesh according to filtration requirements and operating conditions.
02 Precision Cutting
Wire mesh is cut accurately according to required dimensions and tolerances.
03 Rolling & Forming
The mesh is rolled into cylindrical or custom shapes with precise diameter control.
04 Welding Assembly
Spot welding, seam welding or TIG welding processes are applied according to product specifications.
05 Surface Treatment
Deburring, cleaning and polishing improve product appearance and performance.
06 Quality Inspection
Each filter tube is inspected for dimensions, welding quality and filtration performance before shipment.

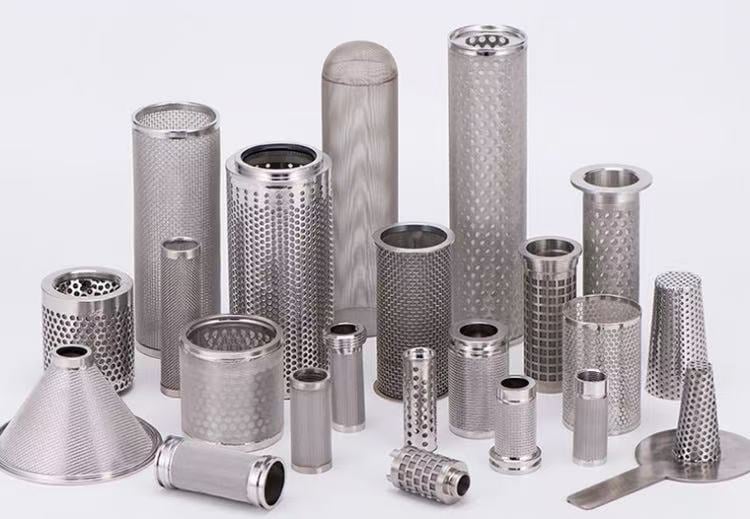

Custom Manufacturing Options
Maidong Metal provides fully customized wire mesh filter tube solutions according to customer drawings, samples and filtration requirements.
Our engineering team can assist with material selection, mesh specification optimization and manufacturing solutions for various industrial applications.
Material Options
304, 304L, 316 and 316L stainless steel materials are available for different operating environments.
Mesh Specifications
Plain weave, twill weave and Dutch weave wire mesh can be selected according to filtration requirements.
Diameter & Length
Custom tube diameters and lengths are available according to customer drawings or equipment requirements.
Welding Methods
Spot welding, seam welding and TIG welding are available for different structural requirements.

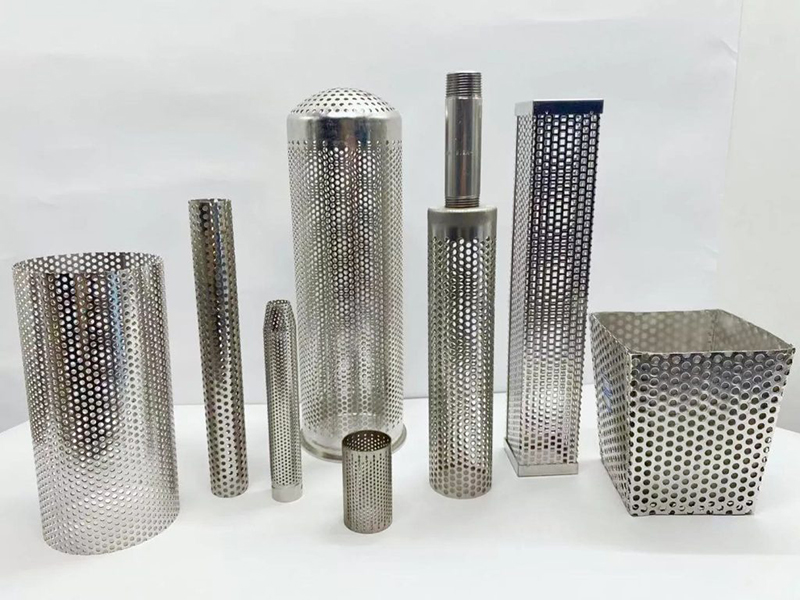

End Configurations
Plain edge, rolled edge, flanged edge and customized end fittings are available.
Filtration Accuracy
Filtration ratings can be customized from 1μm to 500μm depending on mesh specifications and applications.

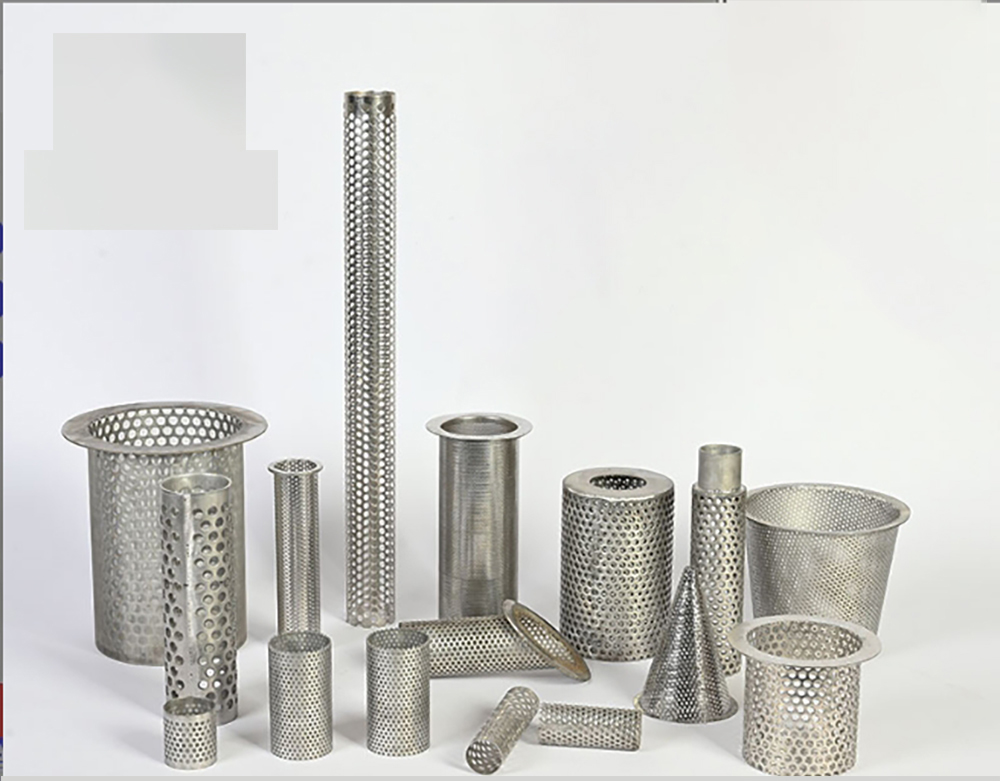

OEM and ODM manufacturing services are available for prototype samples, small batch production and large volume orders.
Frequently Asked Questions
What materials are available for stainless steel filter tubes?
We commonly manufacture filter tubes using stainless steel 304, 304L, 316 and 316L materials. Other alloys can also be supplied upon request.
Can you manufacture according to drawings or samples?
Yes. We provide OEM and ODM manufacturing services based on customer drawings, samples or technical requirements.
What filtration ratings are available?
Our stainless steel filter tubes can be manufactured with filtration ratings ranging from 1μm to 1000μm depending on the selected filter media and structure.
Can you provide samples before mass production?
Yes. Sample production is available for testing and approval before bulk manufacturing.
What is your minimum order quantity?
The MOQ depends on the product structure, dimensions and manufacturing process. Please contact us for detailed information.
What is the production lead time?
Standard production lead time is typically 7-20 working days depending on order quantity and customization requirements.
What industries use stainless steel filter tubes?
Stainless steel filter tubes are widely used in hydraulic filtration, water treatment, chemical processing, food production, petrochemical and gas filtration industries.
Looking for a Reliable Wire Mesh Filter Tube Manufacturer?
Whether you need standard wire mesh filter tubes or fully customized filtration solutions, Maidong Metal is ready to support your project with professional manufacturing experience and fast response service.
Send us your drawings, specifications or application requirements, and our engineering team will provide the most suitable solution for your filtration needs.
For complete filtration solutions, please also explore our Stainless Steel Filter Tubes, Filter Discs and Sintered Filter Elements.
