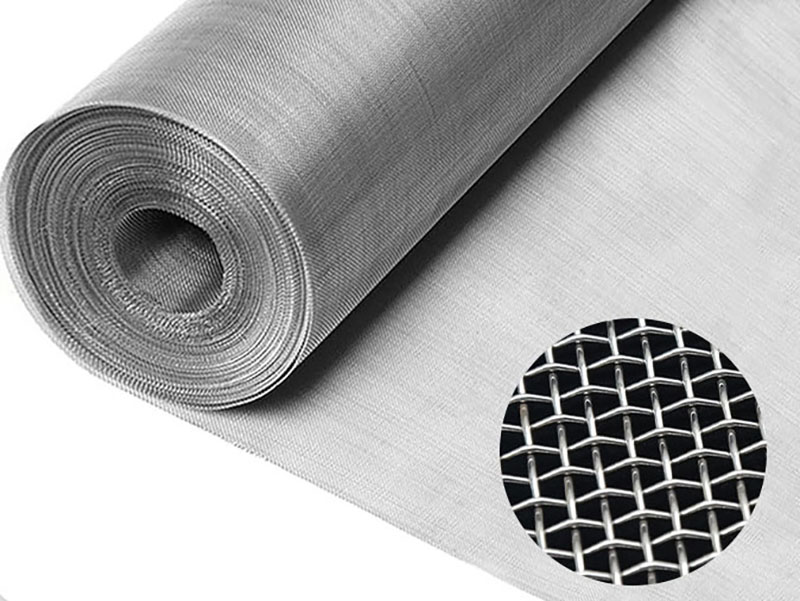

304 Stainless Steel Wire Mesh for Industrial Screening
304 and 304L stainless steel wire mesh are practical starting materials for general industrial screening, separation and filtration when their corrosion resistance is suitable. A complete enquiry should combine the material grade with weave, mesh geometry, dimensions, tolerances and operating conditions.
When 304 Stainless Steel Mesh Is the Right Starting Point
304 stainless steel wire mesh is commonly evaluated for general industrial service, but the grade name alone does not confirm suitability. Review the process medium, temperature, moisture, cleaning chemistry and finished component design. For the broader product range, see stainless steel wire mesh; use the 304 vs 316 wire mesh guide when corrosion conditions require a material comparison.
Process chemistry
Identify liquids, gases, solids, concentration and possible contaminants.
Temperature
State normal and upset temperatures because corrosion behaviour can change with heat.
Fabrication
Welding, forming, edges and multilayer construction can affect grade selection.
Cleaning method
Include chemicals, backwashing, ultrasonic cleaning or other maintenance conditions.
304 Wire Mesh Purchasing Specification
Use a complete mesh specification when comparing suppliers. Avoid approving material from a title, mesh count or micron value alone.
| RFQ field | What to specify | Why it matters |
|---|---|---|
| Material | 304, 304L or governing material designation | Prevents an informal grade name from replacing the required specification |
| Mesh geometry | Mesh count and wire diameter, or aperture requirement | Defines square-opening geometry and influences open area |
| Weave | Plain, twill, Dutch or drawing-specific construction | Determines pore structure, wire path and specification method |
| Dimensions | Roll width/length, cut size or finished-part drawing | Controls fit, edge condition and fabrication planning |
| Tolerances | Wire, opening, dimensions, flatness and edge requirements | Defines what will be inspected and accepted |
| Service data | Medium, temperature, pressure differential and cleaning | Supports material and structure review for real operation |
304 vs 304L: A Practical Purchasing Distinction
304 and 304L belong to the same alloy family, while 304L has a lower carbon limit. The L grade may be specified for welded or fabricated components when the design and corrosion review make the lower-carbon composition relevant.
State the exact grade on the RFQ. If the application involves chlorides or more demanding chemistry, compare the dedicated 316 stainless steel wire mesh page before final material selection.
Available Woven Structures

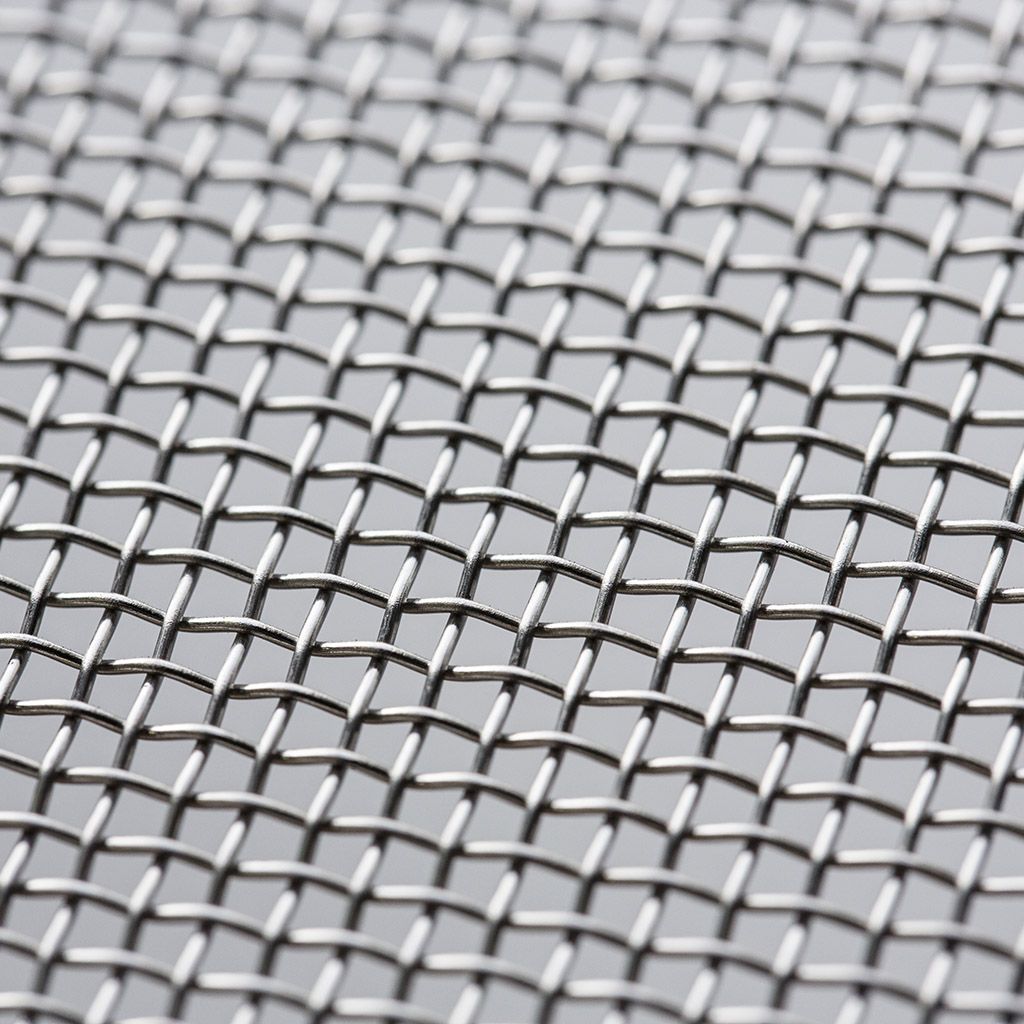

Plain square weave
Direct square openings defined by mesh count and wire diameter.
Twill square weave
A paired over-under wire path used for selected fine-wire combinations.
Dutch weave
Different warp and weft geometry creates an indirect pore path for filtration.
Fabricated media
Mesh can be reviewed with support layers, edges or drawing-based shapes.
Separate material grade from pore structure
“304” identifies the requested material family; it does not define filtration performance. For square mesh, calculate nominal opening from mesh count and wire diameter with the mesh-to-micron calculator. For an indirect pore path, review Dutch weave wire mesh as a separate construction.

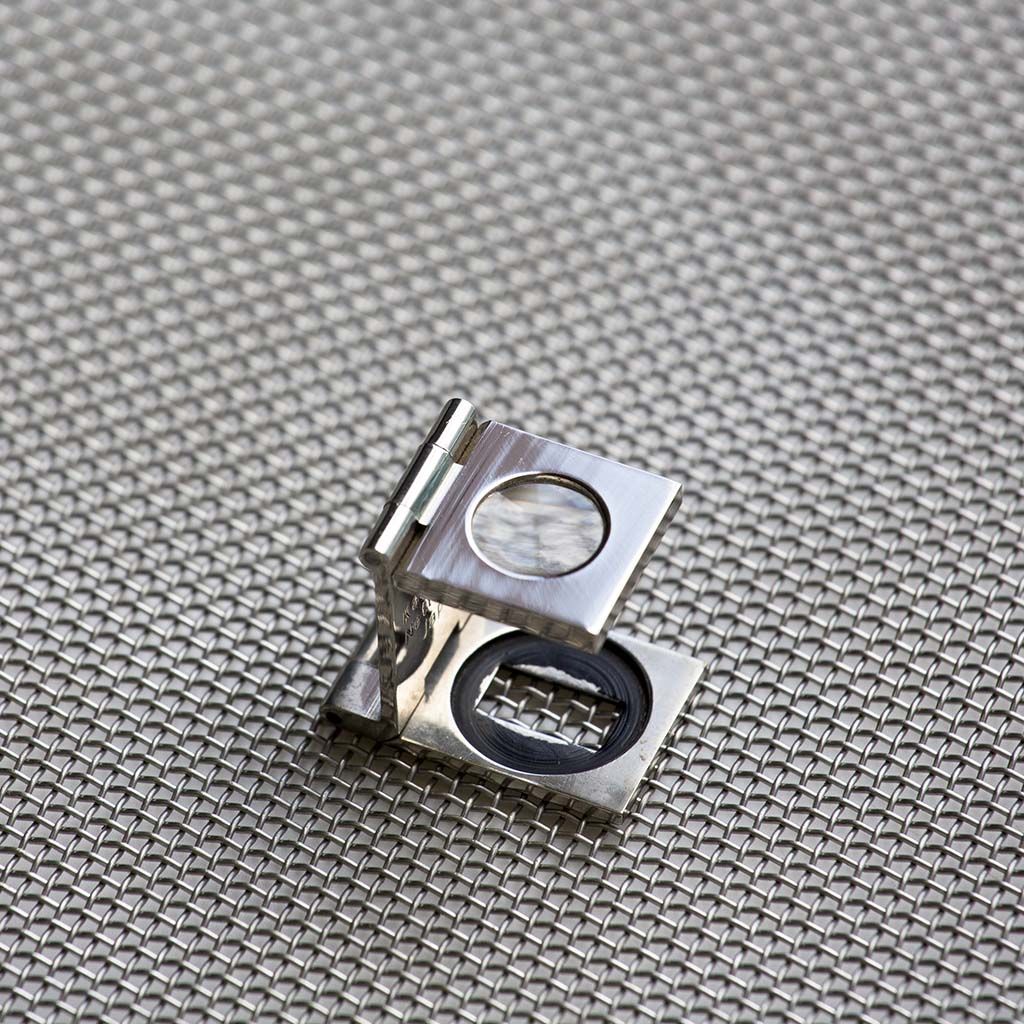

Mesh Count, Aperture and Open Area
For square woven mesh, nominal aperture depends on mesh count and wire diameter together. Open area also changes when wire diameter changes at the same mesh count. Do not use a mesh number as a universal micron rating.
For small square openings and fine-wire purchasing details, see fine stainless steel wire mesh.
Supply Forms and Custom Processing

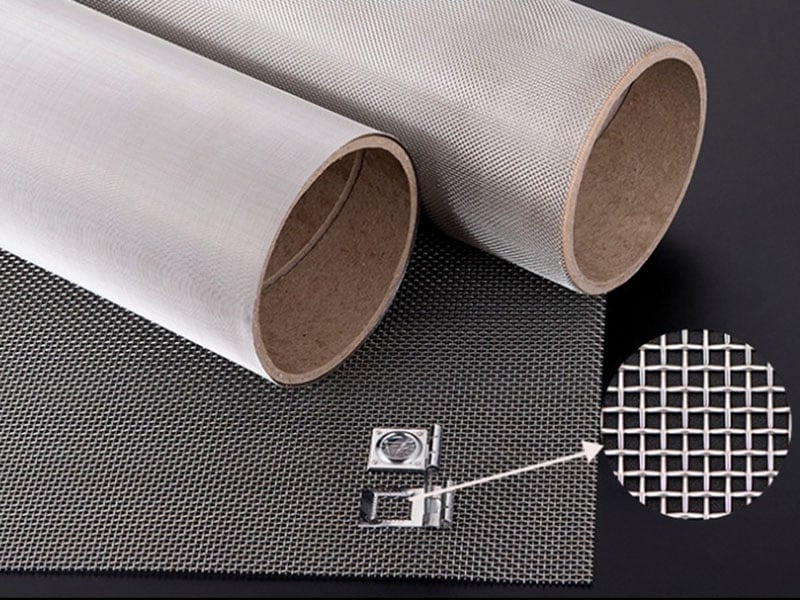

Rolls and slit widths
Define width, length, weave, edge condition and handling requirements.
Cut mesh pieces
Provide finished dimensions, outline, tolerances and quantity.
Filter discs
Specify diameter, layers, support and edge or rim construction.
Tubes and formed parts
Send a drawing with seam, end and support details for review.
Dimension and inspection planning
Finished parts require more than a mesh specification. Add the drawing dimensions, tolerances, flow direction, layer sequence and joining details. Compare stainless steel filter discs and stainless steel filter tubes when the mesh will be fabricated into a component.
Typical Industrial Uses
General filtration
Liquid or gas screening where 304 material compatibility has been reviewed.

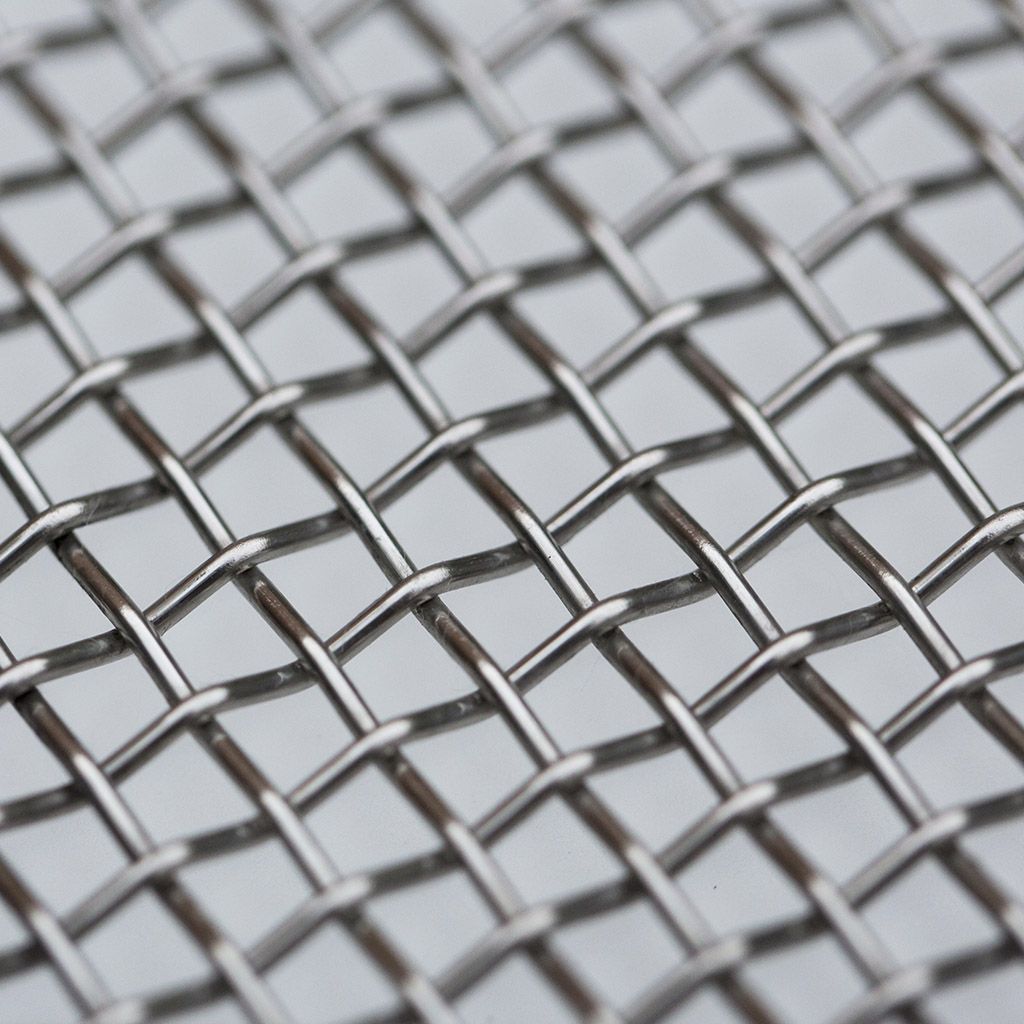

Particle screening
Classification and separation using a defined square aperture and open area.
Equipment protection
Debris screens installed before passages, components or process equipment.
Fabricated mesh parts
Cut, formed or supported mesh used in drawing-based filter components.
These are application categories, not universal suitability claims. Confirm the grade and mesh construction against the actual medium, temperature and cleaning conditions.
How to Select and Quote 304 Wire Mesh
1. Define the environment
List the process medium, concentration, contaminants and temperature.
2. Confirm the grade
State 304 or 304L and the governing material requirement.
3. Define the mesh
Provide weave, mesh count, wire diameter, aperture or filtration basis.
4. Add dimensions
Specify roll, cut piece or finished drawing geometry and tolerances.
5. Set acceptance criteria
Identify required dimensional inspection or material documentation.
What to Send With Your RFQ
- 304 or 304L material requirement
- Weave, mesh count and wire diameter or aperture
- Roll dimensions, cut size or finished drawing
- Edge, layer, support and joining requirements
- Process medium, temperature and pressure differential
- Quantity, tolerance and inspection requirements
Where a value is unknown, describe the function and operating conditions rather than guessing.
304 Stainless Steel Wire Mesh FAQ
304 stainless steel wire mesh is woven from wire specified to the 304 alloy family. It is widely considered for general industrial screening, separation and filtration when its corrosion resistance is suitable for the actual process environment.
304L has a lower carbon limit than standard 304 and may be specified where welding or fabrication makes the lower-carbon composition relevant. The required grade should be stated on the RFQ and drawing.
316 or 316L may be considered when chlorides or process chemistry require additional corrosion-resistance review. Material suitability still depends on concentration, temperature, cleaning, crevices and service conditions.
State mesh count and wire diameter together, or give the required nominal aperture. Two meshes with the same count can have different openings and open areas when wire diameters differ.
A drawing can be reviewed for cut sheets, strips, discs, tubes, baskets and other mesh parts. Include dimensions, tolerances, edge condition, layer sequence and joining details.
Provide grade, weave, mesh count and wire diameter or aperture, roll or finished dimensions, quantity, edges, operating medium and any dimensional inspection or material-document requirement.
Request a 304 Mesh Specification Review
Send the grade, mesh geometry, dimensions, operating conditions and quantity. Maidong can review the requirement for woven mesh or a drawing-based filter component enquiry.
