Pellet Dryer Replacement Screen Components
Send Maidong the drawing for the replacement screen used in your pellet drying equipment. Define the approved screen construction, opening pattern, section dimensions and retaining interfaces.
Identify the machine and process stage alongside the part reference. Fabrication scope and suitability for the requested interface are reviewed before quotation; no universal OEM interchangeability is implied.
Confirm the Screen Type Before the Dimensions
In centrifugal pellet drying equipment, screens can retain pellets while allowing separated water to leave the pellet path. Construction depends on the equipment and product specification; perforated and other specialised screen types are used.
Provide the approved construction instead of assuming that woven mesh is an equivalent replacement. Identify any multilayer arrangement, supporting member or special surface requirement for separate review.
This is a component enquiry, not a proposal for a complete dryer, rotor or process upgrade.
Link the Screen Drawing to the Retaining Parts

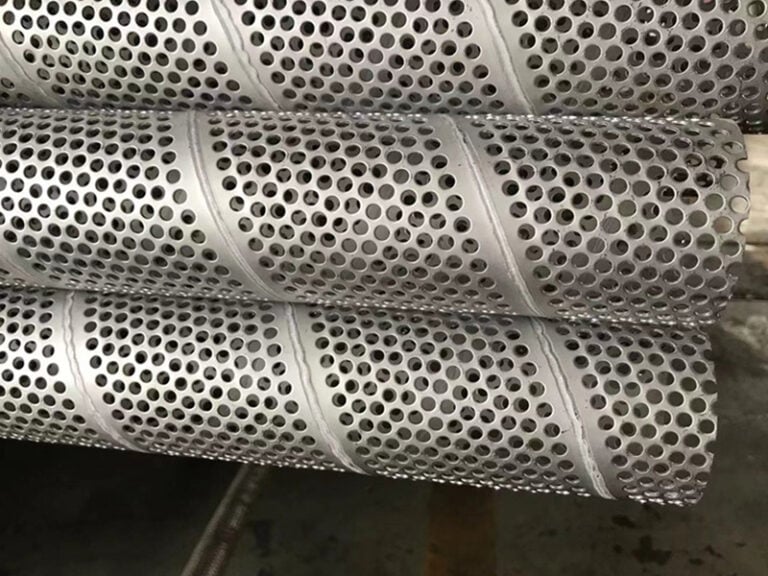

State whether the requested part is a complete cylindrical section, an open formed section or another drawing-defined shape. Show the axial length, controlling diameter and the condition in which dimensions are checked.
Identify joints, overlaps, retaining bands and locating features. Provide the designer-specified clearances to neighbouring components where they control the fit; do not estimate them from a photograph.
Provide the Approved Opening and Material Specification
| Equipment reference | Machine model, screen part number, drawing revision and process location. |
|---|---|
| Product information | Polymer, pellet size/shape distribution and relevant fillers or additives. |
| Process conditions | Pellet and water feed conditions, temperature and specified operating envelope. |
| Screen construction | Approved material, thickness, opening geometry and any supporting layers. |
| Section dimensions | Length, diameter reference, formed profile and tolerances. |
| Mounting | Joint arrangement, straps, fixing details and mating clearances. |
| Surface and cleaning | Specified finish or coating, edge condition and approved cleaning exposure. |
| Acceptance | Inspection fixture, trial fit, required records, quantity and qualification scope. |

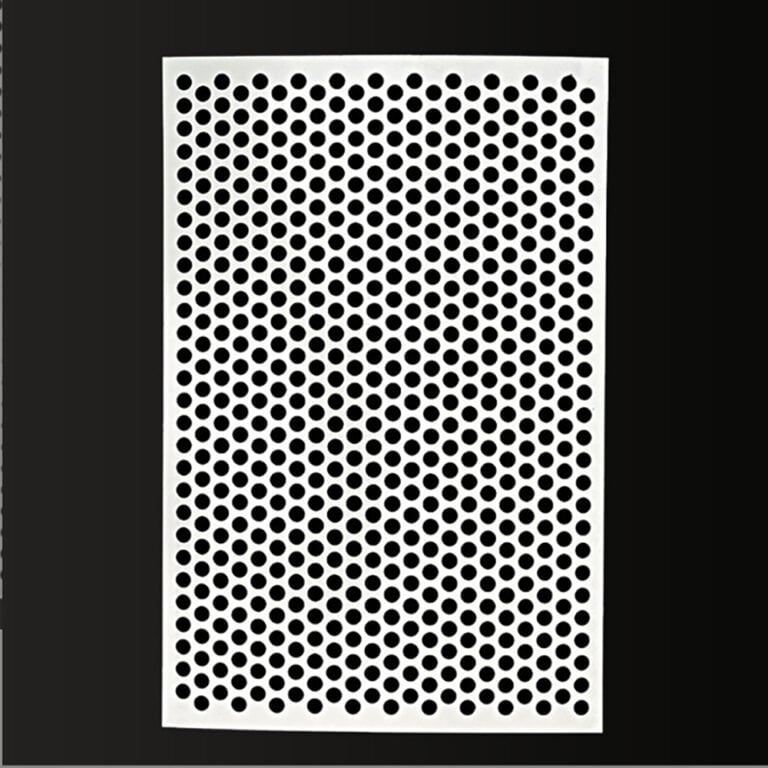

For perforated parts, include hole shape, dimensions, pitch, pattern and solid margins. A nominal hole size alone does not define the full screen.
Use the hole size and pitch guide to organise perforation details without replacing the machine requirement.
Include Unperforated Mounting Regions
Show where openings start and stop, along with any solid edge used for fastening or joining. Keep the mounting holes distinguishable from process openings.
Where a coating or special wear-related material is required, supply its reference and acceptance criteria. Availability must be confirmed; it should not be inferred from a generic stainless steel part.
For related drawing-defined sheet components, see perforated panels with solid margins.
Separate Replacement Fit from Dryer Performance
For a worn sample, identify the original required dimensions separately from wear, deformation or enlarged openings. Supply the approved part drawing where available.
Agree any trial fit with the identified fixture or mating parts. Component dimensional acceptance does not establish pellet quality, residual moisture, throughput or service life.
Installation and operational acceptance should follow the responsible equipment procedures. This quotation scope does not include changes to rotor settings, safeguards or machine operation.
English Replacement Screen Enquiry
Please review replacement screen [part/drawing/revision] for pellet dryer [equipment reference]. Required quantity [ ].
Approved screen material, opening pattern and thickness [ ]. Section dimensions, joints and retaining interfaces are shown in the drawing.
Polymer/pellet and operating information [ ]. Surface, cleaning and inspection requirements [ ]. Trial-fit responsibility [ ]. Please identify fabrication limits and proposed exceptions before quotation approval.
Pellet Dryer Screen FAQ
Replacement screen components for a specified wet pellet drying or dewatering arrangement. Identify the actual machine and process stage; it is not a universal dryer spare.
No. Dryer screen construction varies. Provide the existing approved construction and drawing rather than substituting woven mesh for a perforated or other screen.
A model reference can help identify the application but does not replace the component drawing, revision and mating dimensions. Compatibility must be reviewed.
Supply the approved opening specification and pellet information. This page assigns no universal hole size or pellet-retention guarantee.
Only when specified and confirmed in the quotation. List these items and their requirements separately from the screen body.
No. Screen supply alone does not establish dryer output, residual moisture or service life. Any required system-level acceptance must be agreed separately.
Request a Screen Component Review
Send the approved screen drawing and mating-interface details for quotation review.
