Metal Filter Element End Connections & Sealing Guide
A metal filter element end connection must locate the element, transfer mechanical load and control the intended sealing path. Specify the mating component, connection geometry, seal location, tolerances, flow direction and allowable bypass—not only “threaded” or “flanged.”
What the End Connection Must Do
Locate the element
Control radial and axial position inside the housing.
Carry assembly load
Transmit tightening, pressure, handling and removal forces.
Create the seal
Define the face, O-ring, gasket, cone or thread-seal interface.
Prevent bypass
Close unintended paths around the media and end attachment.
Metal Filter Element End Connection Comparison
Connection names are only categories. The controlled drawing must show the exact mating geometry, the surface that seals and the dimensions that remain critical after welding or assembly.
| Connection type | Drawing details | Seal questions |
|---|---|---|
| Male / female thread | Standard, size, pitch, class, length, lead-in and shoulder | Thread seal, O-ring, gasket or separate face? |
| Flange or collar | OD/ID, thickness, bolt pattern, seating face and flatness | Gasket location, compression and bypass path? |
| Open / slip-fit end | Controlling diameter, insertion depth, stop, clearance and retention | Housing O-ring, interference fit or no seal? |
| Closed end cap | Cap form, depth, attachment, pressure side and unsupported area | Is the media-to-cap joint a bypass boundary? |
| Welded interface | Joint location, weld scope, distortion limits and post-weld dimensions | What leakage or inspection requirement applies? |
Threaded Filter Element Connections
State the thread system and designation completely. Include male or female form, pitch, tolerance/class, engagement length, runout or relief, lead-in, shoulder position and installation feature. A photograph cannot define a thread.
Do not assume the thread is the seal. Show whether sealing occurs on the thread, an O-ring groove, a gasket face, a cone or a separate shoulder.
Flanges, Collars and Open Ends
For a flange or collar, define OD, ID, thickness, bolt pattern if present, locating diameter, seating face and flatness. For an open slip-fit end, define insertion depth, controlling diameter, clearance, stop and retention method.
The housing drawing should show where the element seats and how it is removed without damaging the media or seal.
Seal Interface and Bypass Checklist
Seal position
Mark the exact face, groove or thread region that creates the barrier.
Seal specification
State gasket/O-ring standard, material requirement and service conditions.
Compression control
Define groove, shoulder, torque or clamp travel that controls compression.
Adjacent leak paths
Review media-to-cap joints, seams, welds and housing clearances.
A micron rating describes the intended filtration medium, not leakage around the element. Seal integrity and media retention must be specified as separate requirements.
Connection Loads and Finished Tolerances
Threading, end-cap welding and pleat assembly can affect concentricity, length, face position and sealing geometry. Put functional dimensions on the finished element drawing rather than controlling only separate parts.
State normal and reverse flow, differential pressure, installation torque or clamp load, temperature, cleaning method and removal frequency. Do not infer a pressure rating from appearance.
Real Maidong End-Connection Examples
These images show real Maidong metal filter components with several end concepts. They are visual references only; the approved drawing controls every thread, flange, seal and tolerance.

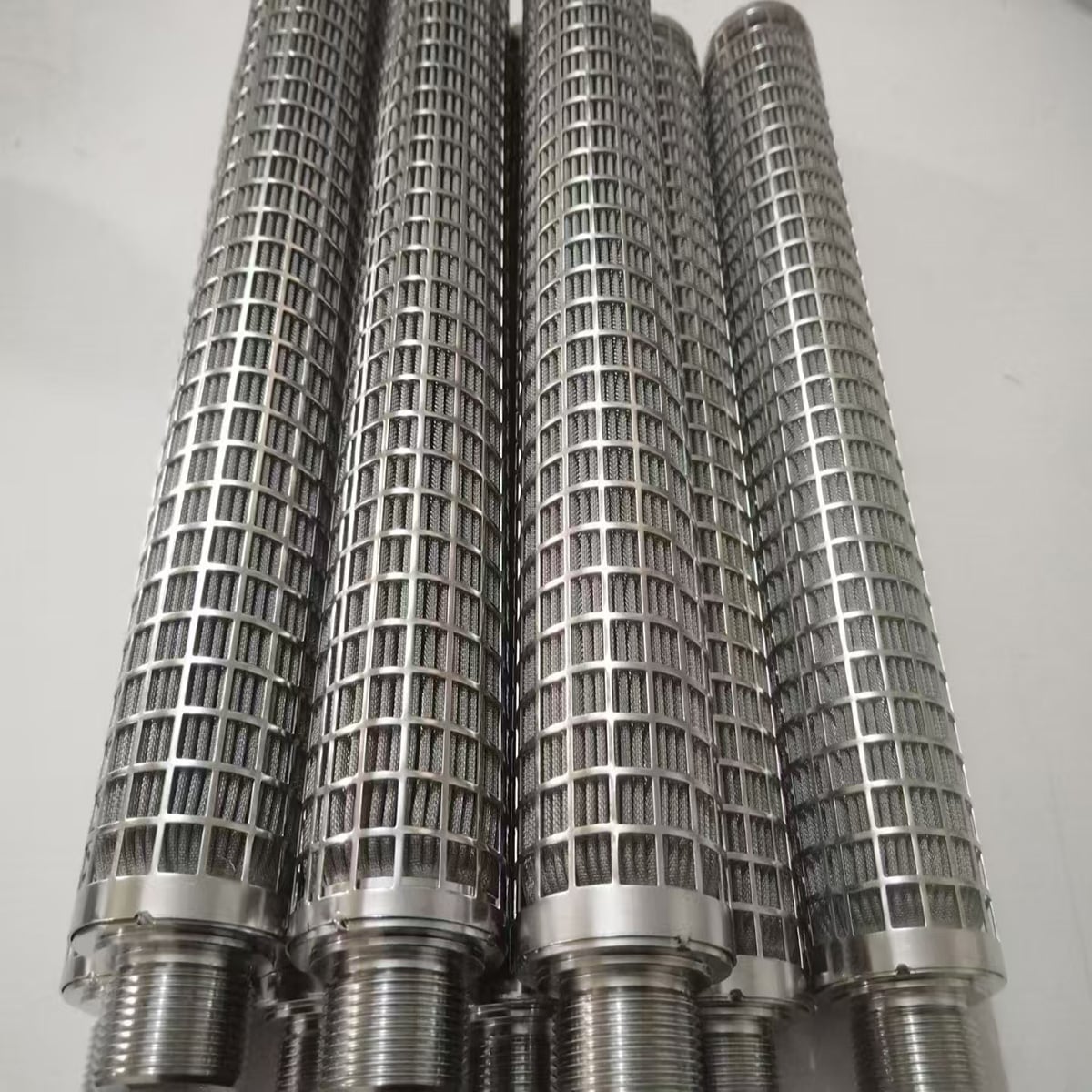

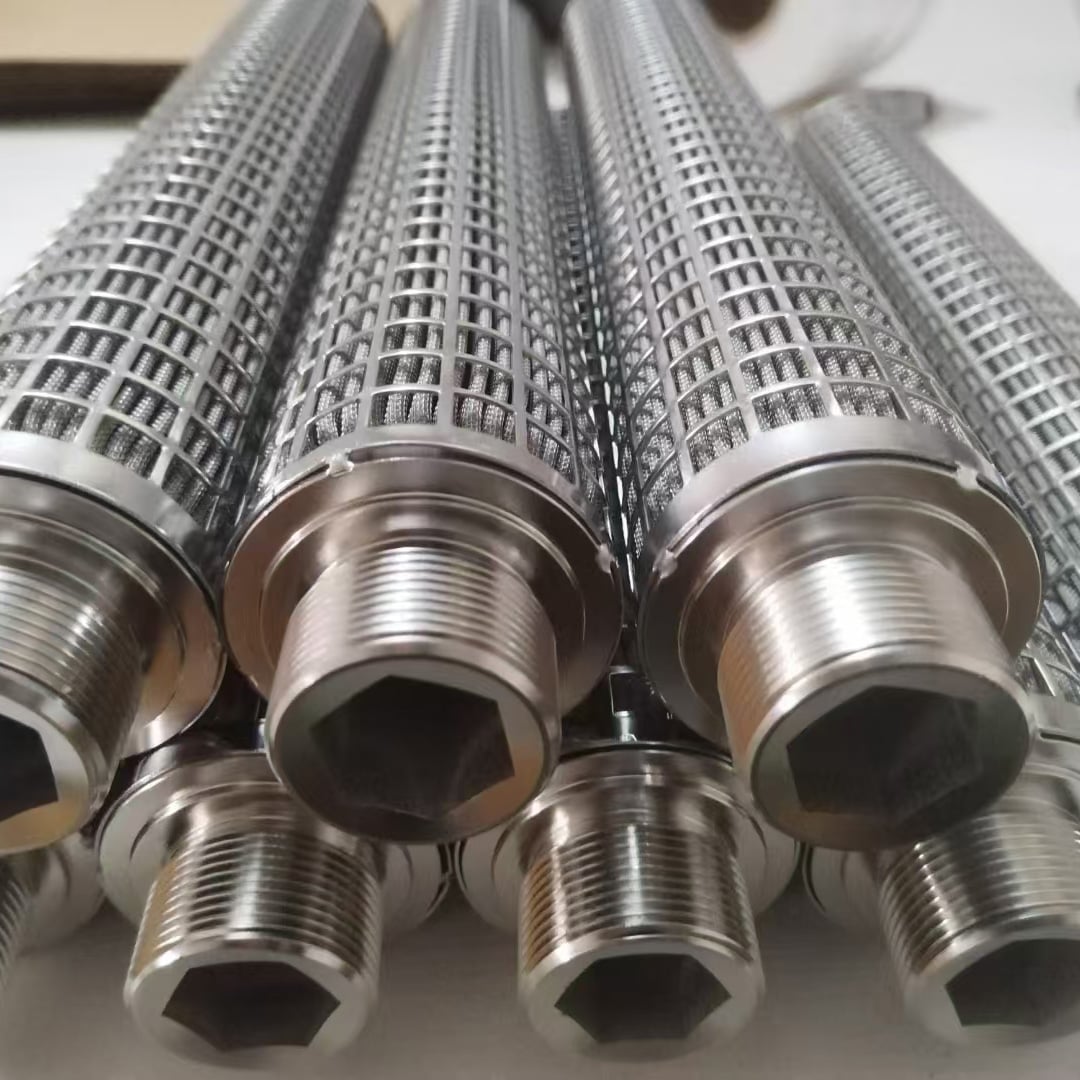

Threaded supported elements

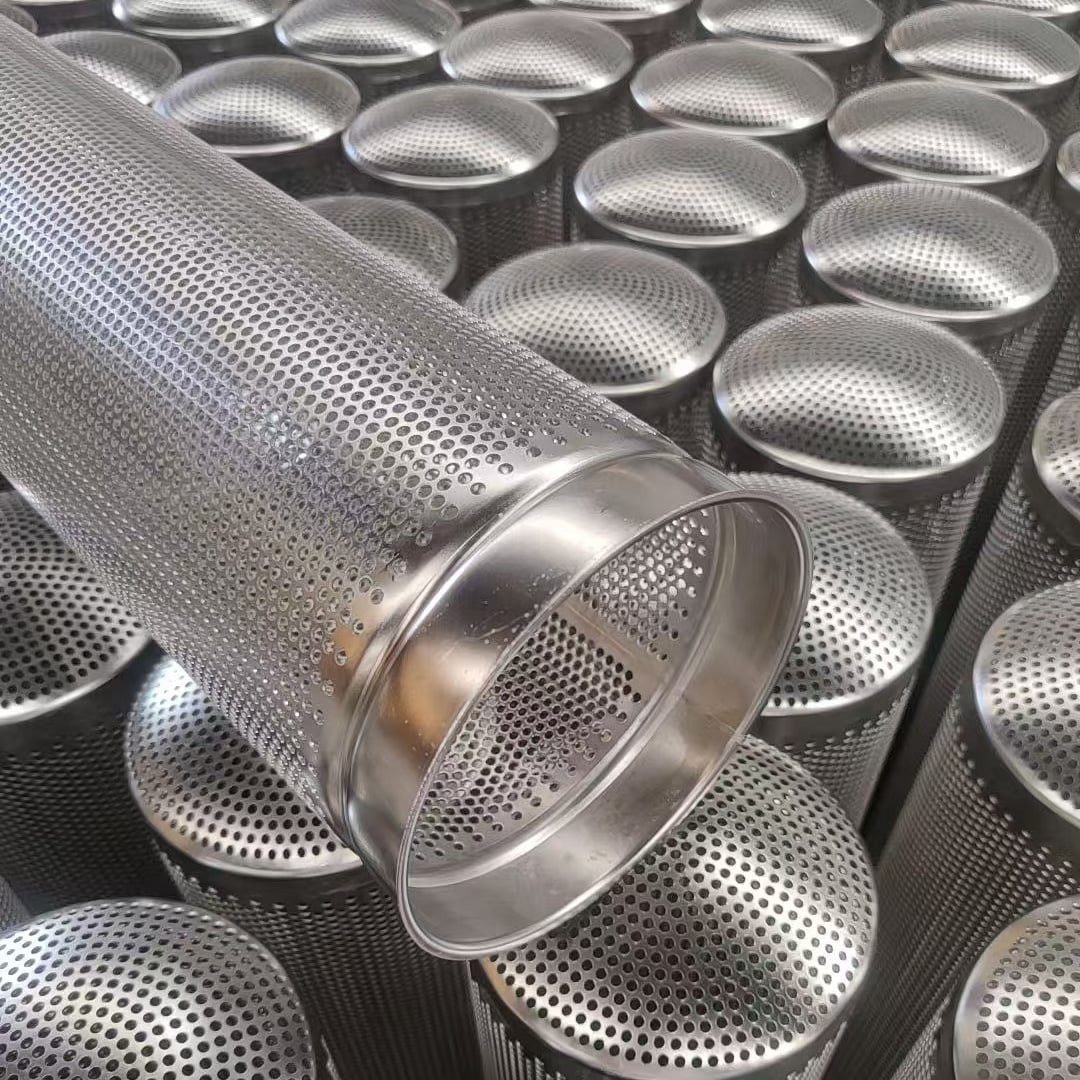

Open and closed ends

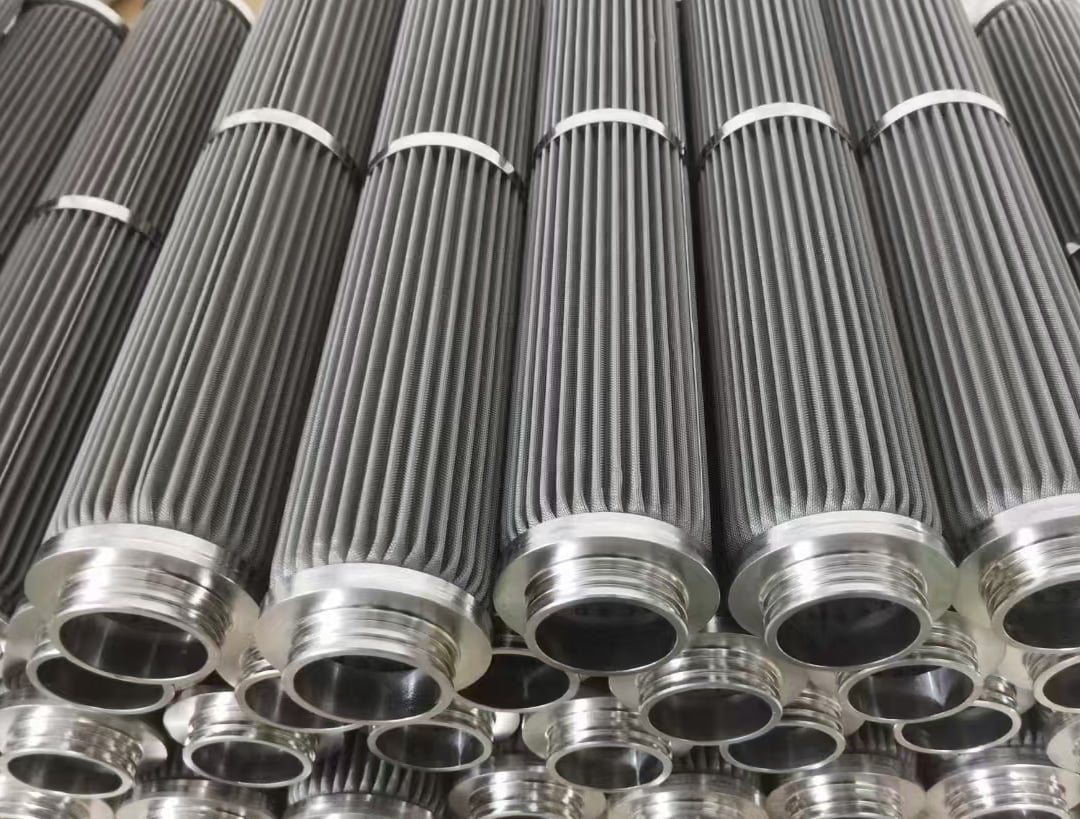

Pleated threaded cartridges

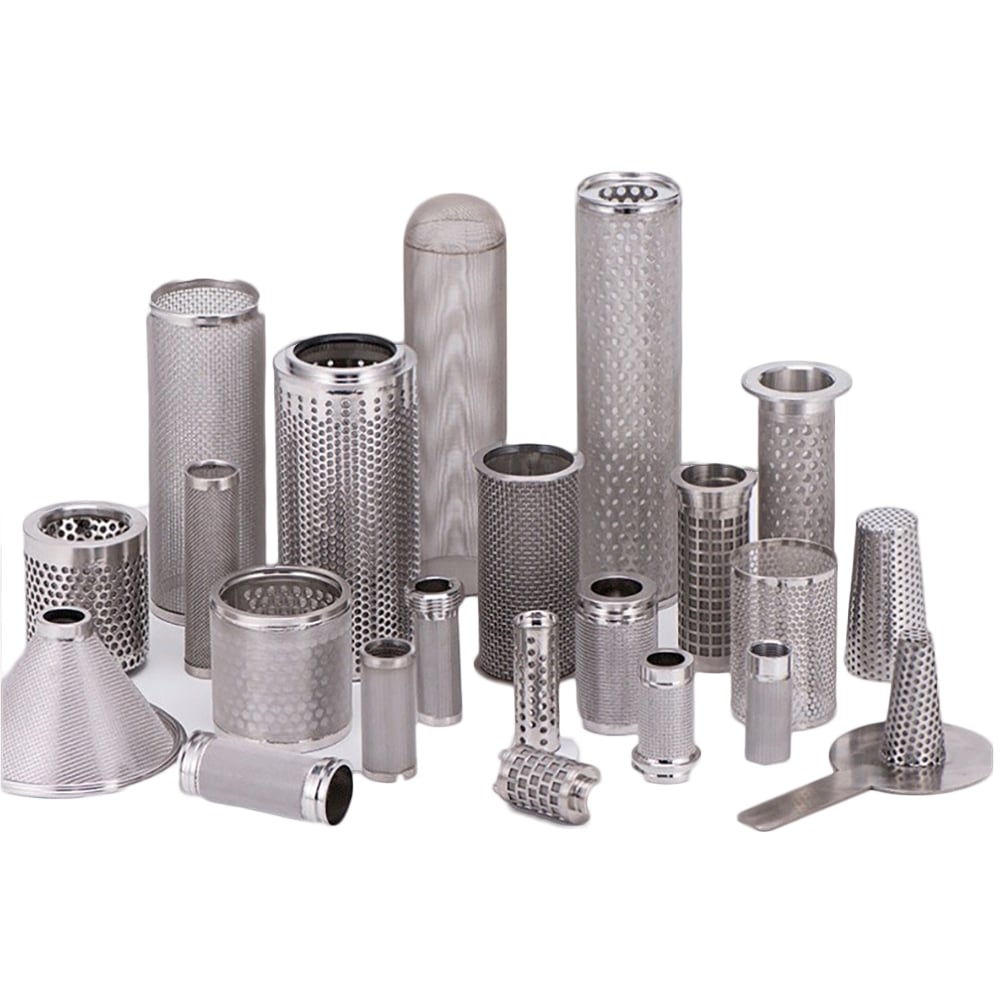

Custom end configurations
Match the Interface to the Filter Structure
Wire mesh cylinder
End hardware must retain the woven medium and close seam or edge bypass paths.
Pleated cartridge
End caps must locate and seal the pleated pack without obscuring the intended flow path.
Sintered element
Porous medium attachment, end machining and seal surfaces are separate drawing controls.
Perforated support body
Open area, welds and end rings must be coordinated with the fine media and housing.
Review related product structures: stainless steel filter tubes, wire mesh filter cylinders, sintered filter cartridges, pleated stainless steel cartridges and welded filter tubes.
End Connection and Sealing RFQ Checklist
1. Send both mating parts
Show the filter end and housing or receiver geometry.
2. Define the connection
Thread, flange, collar, open end, cap or welded joint.
3. Mark the seal
Identify groove/face, seal type, compression and bypass boundary.
4. Add service data
Flow, pressure, temperature, fluid, cleaning and assembly method.
5. State inspection
Critical dimensions, leakage or inspection records and quantity.
Metal Filter Element Connection FAQ
There is no universal best connection. Select the interface from the housing, assembly method, pressure direction, removal access, cleaning procedure and seal requirement. The mating part and critical dimensions must be defined.
State thread standard, size, pitch, class or tolerance, male or female form, thread length, lead-in, shoulder, tightening feature, seal method, material and mating component.
Not necessarily. Some designs use a thread seal, while others use an O-ring, gasket, cone, shoulder or separate face. Mark the actual sealing surface and leakage path on the drawing.
Bypass can occur through an incorrect seal position, damaged sealing surface, unsuitable compression, dimensional mismatch, an unsealed joint or a leak path around the media-to-end-cap attachment.
Define O-ring standard and material requirement, groove geometry, mating diameter, surface condition, compression direction, assembly movement, temperature, fluid and allowable extrusion gap.
Maidong can review drawing-based threaded, open, capped, collared and flange-style metal filter element enquiries. Feasibility, material, tolerances and inspection scope must be confirmed from the actual drawing.
Request an End-Connection Drawing Review
Send the filter construction, mating component, connection and seal geometry, service conditions, critical tolerances, inspection requirements and quantity.
Assembly Handoff and Enquiry Example
| Quotation review | Information to provide |
|---|---|
| Locate | Mating part, datum and connection dimensions |
| Seal | Defined sealing boundary and included seal components |
| Verify | Separate fit, attachment and leakage acceptance requirements |
Example RFQ Line to Complete
Replace the bracketed fields with your order requirements:
Interface review; mating drawing [reference]; connection [specification]; locating datum [feature]; seal boundary [section]; supplied seals [scope]; installed condition [reference]; inspection [separate requirements].
Related selection resources: Mesh Cylinders; Pleated Filter Cartridge; Filter Element Drawing and Tolerance Checklist.
Send the current drawing or complete specification, quantity, application and delivery destination through our contact page. Identify any required inspection or material records before quotation; availability and acceptance requirements are confirmed for the actual order.
