What Is Woven Wire Mesh? A Complete Guide for Industrial Applications
Woven wire mesh is one of the most widely used metal mesh products in industrial filtration, screening, and protection systems. It is made by weaving metal wires together in specific patterns to create a uniform, stable, and high-precision mesh structure.
Whether used for liquid filtration, solid separation, airflow control, or equipment protection, woven wire mesh plays an essential role across multiple industries.
1. What Is Woven Wire Mesh?

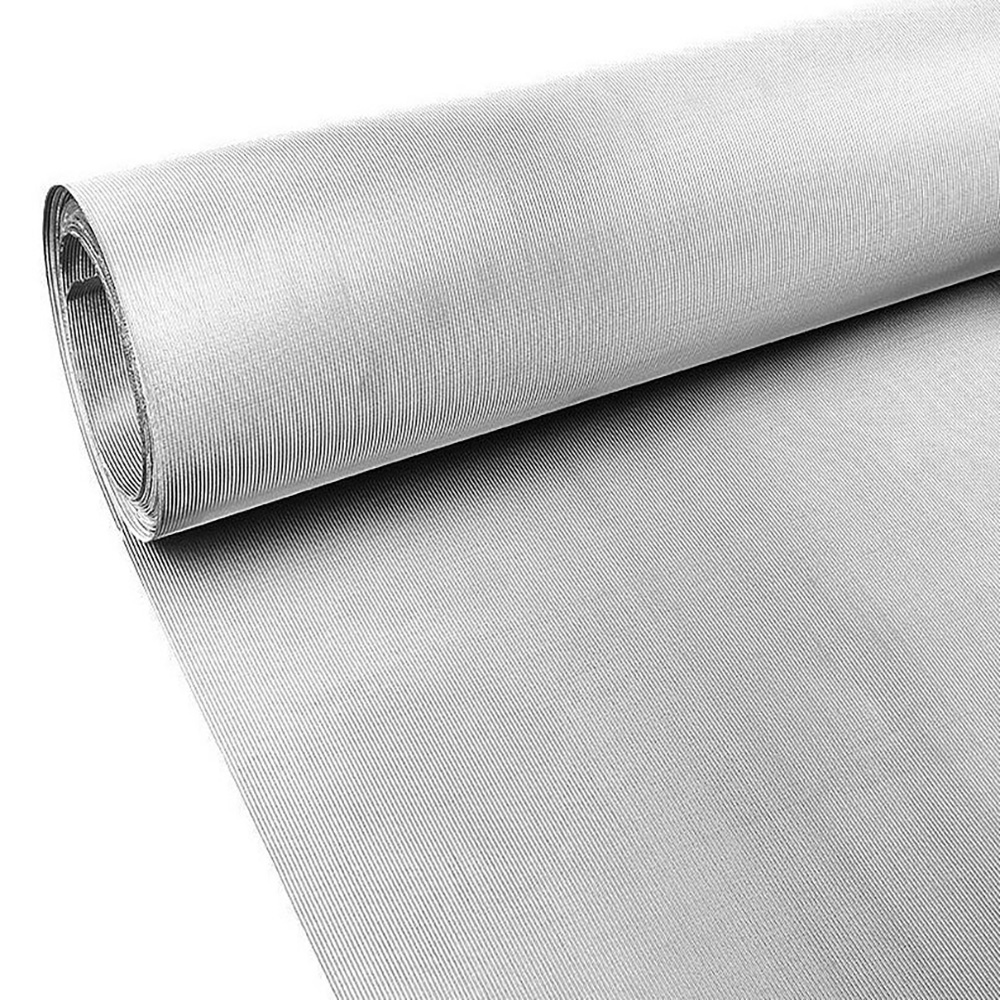

Woven wire mesh is produced by interlacing warp and weft wires through high-precision weaving equipment. The result is a strong, flexible, and dimensionally accurate mesh that offers excellent filtration and durability.
Common materials include:
Stainless Steel (304 / 316 / 316L)
Copper / Brass / Phosphor Bronze
Galvanized Steel
Nickel Alloys
Among these, stainless steel woven mesh is the most widely used due to its corrosion resistance and long service life.
2. Advantages of Woven Wire Mesh
Woven wire mesh is preferred in industrial applications because it offers:
✔ High filtration accuracy
✔ Excellent mechanical strength
✔ Corrosion and heat resistance
✔ Uniform aperture and stable performance
✔ Easy to cut, form, and weld
✔ Reusable and cost-effective
These characteristics make woven mesh ideal for harsh environments and continuous operation.
3. Common Weave Types
Different weave structures provide different filtration performance and mechanical properties.
● Plain Weave
The most common and economical type for general filtration and screening.
● Twill Weave
Allows thicker wires and higher strength while maintaining fine aperture size.
● Dutch Weave
Used for precision filtration with very fine micron ratings (e.g., 5–100 microns).
● Reverse Dutch Weave
Higher flow rate and excellent pressure resistance for heavy-duty filtration.
4. Industrial Applications of Woven Wire Mesh
Woven mesh is widely used in:
Liquid filtration (oil, water, chemical processing)
Air and gas filtration
Mining & aggregate screening
Machinery protection & ventilation
Food processing & separation
Plastic recycling & extrusion filtration
Pharmaceutical filtration
From fine micron-level filters to heavy screening meshes, woven wire mesh provides stable and reliable performance.
5. Why Choose MD Wire Mesh?
We manufacture high-precision woven wire mesh with strict quality control and customized options:
Custom mesh sizes & aperture
Various materials and weave types
Deep processing: cutting, slitting, welding, punching, pleating
Fast delivery and professional export service
Contact us for industrial-grade woven mesh solutions tailored to your needs.
