Wire Mesh Filter Edge Types: Selection and Drawing Guide
A wire mesh filter edge controls handling, layer containment, installation fit and the path where fluid could bypass the media. Choose the edge from the housing interface and sealing method—not from the filter shape alone.
Direct Answer: Match the Edge to the Interface
Housing-captured mesh
Plain cut or a simple contained edge may be sufficient when the housing controls the perimeter.
Handled component
A folded, welded or rimmed edge can contain cut wires and stabilize the finished outline.
Multilayer screen
The edge must keep every layer aligned and define how the stack terminates.
Sealing surface
Rim, gasket and housing contact must form one defined anti-bypass path.
Wire Mesh Filter Edge Type Comparison
| Edge type | Typical role | Drawing fields | Main risk if vague |
|---|---|---|---|
| Plain cut | Mesh captured completely by another component | Outline, tolerance, exposed-wire rule and handling | Fraying, distortion or uncovered bypass path |
| Folded / hemmed | Mesh perimeter turned back to contain cut wires | Fold width, direction, layers and finished thickness | Uneven thickness or reduced active area |
| Welded perimeter | Edge stabilized or layers joined around the outline | Weld location, width, continuity and distortion limit | Uncontrolled heat effect, gaps or dimensional change |
| Bonded edge | Layers or edge member joined by a specified validated process | Material/process specification, bond zone and service limits | Compatibility or integrity assumed without evidence |
| Metal rim / frame | Cut wires contained and a repeatable interface created | Material, profile, width, joint, OD/ID and thickness | Wrong fit, active area or seal contact |
| Gasket-captured | Mesh or rim compressed within a defined sealing stack | Gasket, compression, contact width, groove and surface datum | Media bypass despite correct mesh rating |
Plain-Cut vs Metal-Rimmed Screens
Plain-cut mesh preserves more usable area and can be efficient when another part captures the perimeter. A metal rim contains wire ends, helps align layers and creates a controlled finished outline, but it also occupies area and adds thickness.
For a commercial rimmed-screen specification, see stainless steel edged filter discs.
Edge Selection by Installation Condition
Clamped between faces
Define the clamped width, surface datum, gasket and compression path.
Located in a recess
Control finished outline, thickness, corner or diameter tolerance and removal clearance.
Inserted as a loose screen
Control handling stiffness, exposed wires and orientation features.
Joined into an assembly
Define edge member, attachment, heat or bond zone and bypass requirement.
Sealing and Bypass: Follow the Complete Path
A correct mesh opening does not prevent fluid from travelling around the mesh. Trace the path from filtration media to edge treatment, rim or frame, gasket and housing. Identify every joint and contact surface that is expected to block bypass.
Use the filter element drawing and tolerance checklist to mark sealing faces, critical dimensions and acceptance requirements.
Edge Details for Different Filter Shapes
Round disc
OD, rim profile, joint position, flatness and active diameter.
Annular disc
OD, ID, concentricity, inner and outer edges and active radial band.
Rectangular screen
Length, width, corners, frame joints, squareness and sealing perimeter.
Cylinder or formed cap
Open-edge ring, flange, seam intersection, roundness and mating interface.
Media, Layers and Edge Joining
Single woven layer
State weave, mesh/wire or aperture, alloy and cut-edge rule.
Fine plus support layers
List layer order, alignment and which layer reaches the perimeter.
Rimmed composite
Define how the rim captures media, drainage and support without an open bypass channel.
Compare the broader stainless steel filter disc family and the filter disc selection guide before choosing the finished edge.

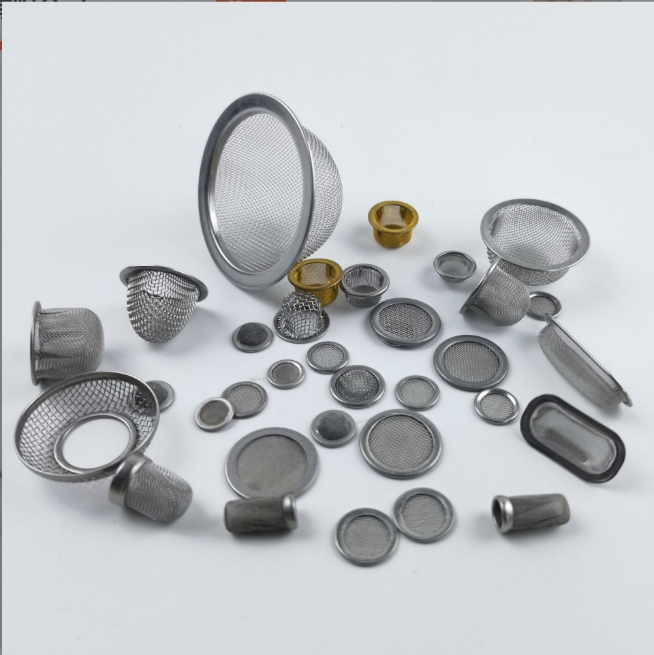

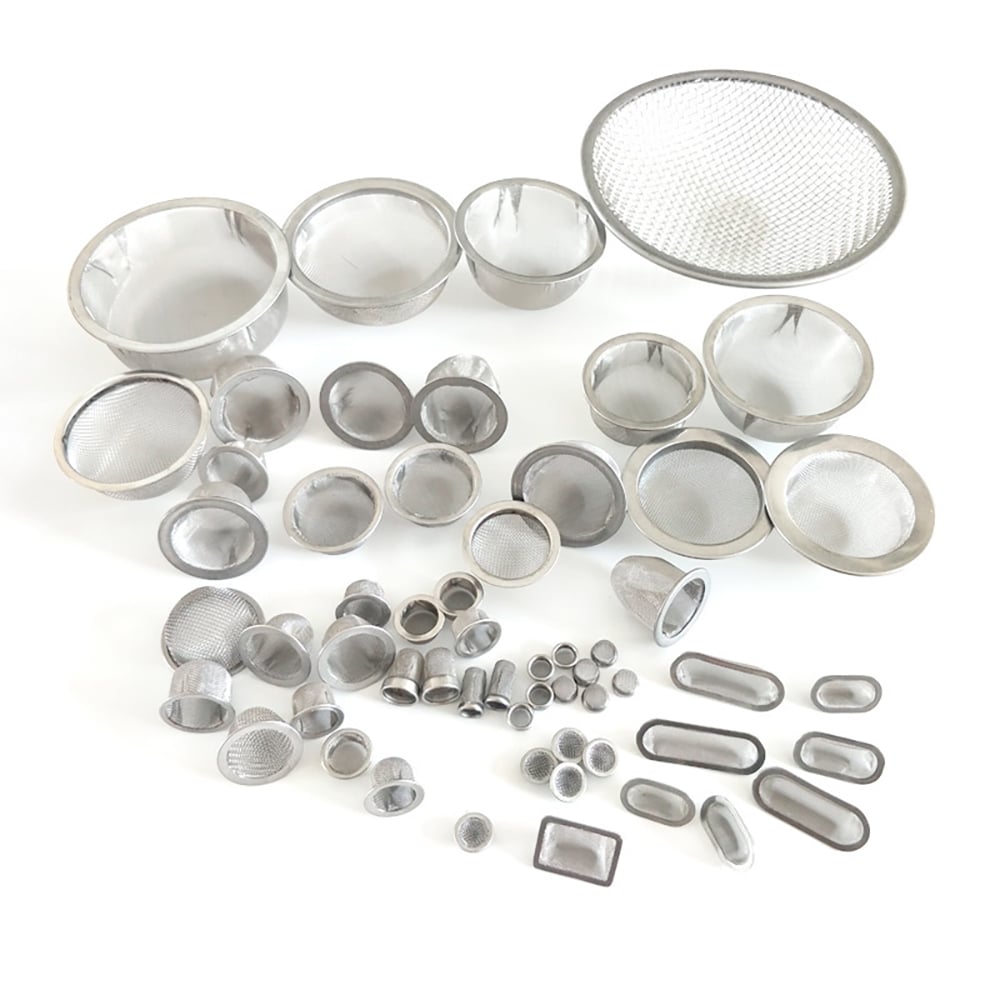

Real Maidong Edge and Frame Examples
These Maidong material-library images show plain discs, metal-rimmed screens, formed components and rectangular frames. They illustrate edge directions only; the approved drawing controls the final joining, sealing and inspection requirements.

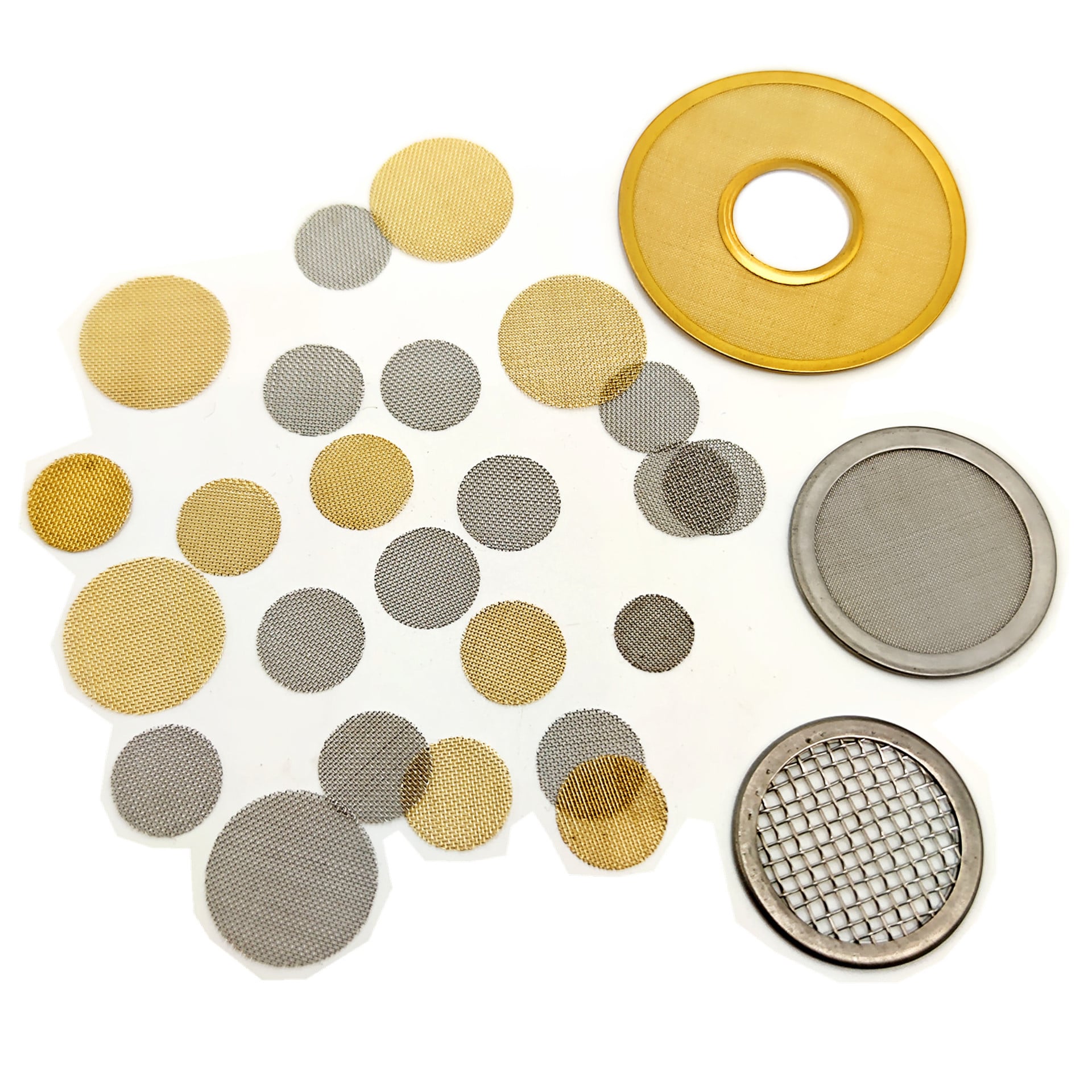

Plain and rimmed discs

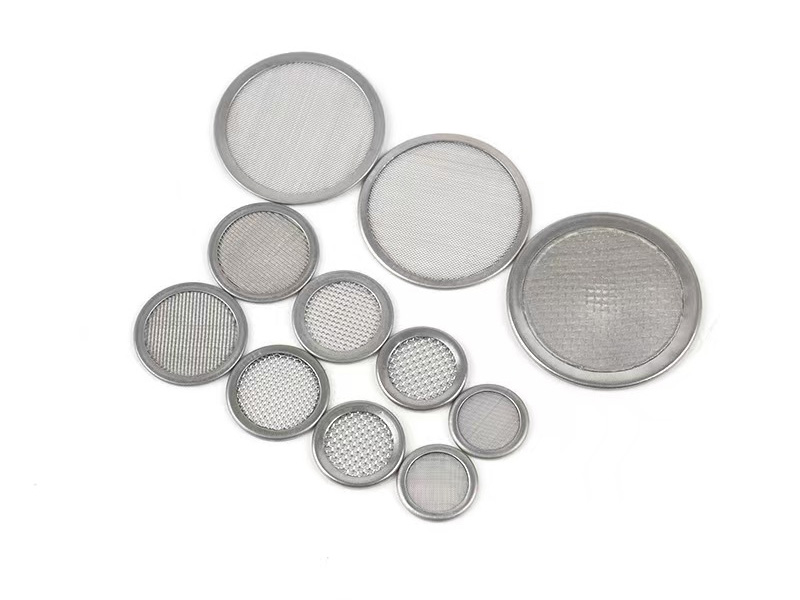

Round rimmed screens

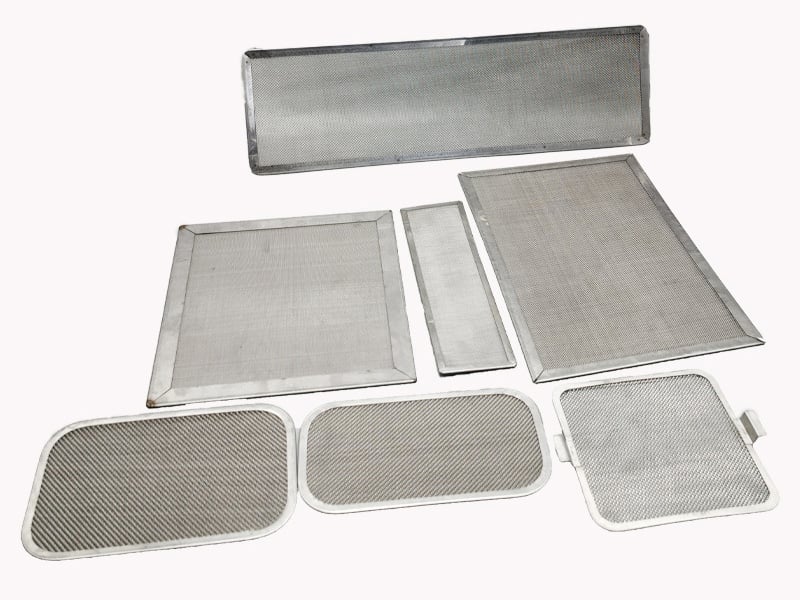

Rectangular frames
Edge Detail Drawing Checklist
1. Show the section
Draw how mesh, layers, edge member and gasket meet.
2. Mark datums
Identify the locating and sealing surfaces.
3. Dimension the edge
Add width, profile, OD/ID, thickness and tolerances.
4. Define joining
State fold, weld, bond or capture requirements and joint location.
5. Define acceptance
Add exposed-wire, bypass, dimensional and inspection criteria.
Wire Mesh Filter Edge FAQ
A plain-cut edge is the simplest when the receiving housing fully captures the mesh and loose wires, distortion and bypass can be controlled. Finished outline, tolerance and handling requirements still need definition.
A metal rim is useful when the perimeter must contain cut wires, align layers, improve handling or create a repeatable installation surface. State rim material, profile, width, joint, total thickness and contact surfaces.
Not automatically. Bypass depends on the entire sealing path: mesh-to-rim joining, rim geometry, gasket or housing contact, compression and dimensional fit. The drawing should identify the intended seal and acceptance requirement.
A folded edge uses the mesh itself or an integral material fold to contain the perimeter. A separate rim adds another formed member around the mesh. They differ in thickness, rigidity, active area and equipment interface.
Yes, but the drawing should list every layer, order, alignment and joining method. State whether layers are only perimeter-contained, spot joined or bonded by another validated process.
Include finished outline, OD/ID or profile, edge cross-section, rim or fold width, total thickness, joint position, layer termination, sealing face, datums, tolerances, burr or exposed-wire rules and inspection criteria.
Review the Edge Before Finalizing the Mesh Screen
Send the media, layer order, finished outline, edge section, sealing path, housing interface, tolerances, service conditions, quantity and drawing revision.
Specification Handoff and Enquiry Example
| Quotation review | Information to provide |
|---|---|
| Locating function | Identify the rim/frame feature that positions the component |
| Dimensions | Outside outline, corner details, section height and clear window |
| Acceptance | Installed restraint, edge condition and any defined sealing interface |
Example RFQ Line to Complete
Replace the bracketed fields with your order requirements:
Filter edge review; component [drawing]; edge [rim/frame/plain]; seating datum [reference]; outside profile [dimensions]; section [detail]; clear mesh window [dimensions]; mating recess [reference]; edge and seal acceptance [requirements].
