Stainless Steel Mesh Filter Cartridges for Winery Transfer Lines
Supported woven mesh cartridges for winery liquid-transfer housings. Specify wine stage, wanted constituents, particle target, metal ends and cleaning.

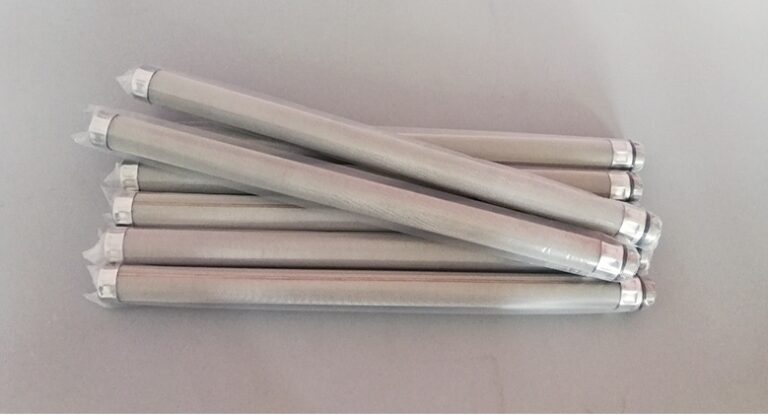

Supported Cartridge in the Winery Transfer Housing
Supply is a drawing-defined woven metal cartridge with support and agreed metal ends in an approved winery transfer housing. It is separate from a grape crusher screen, a pressure leaf and a final microbial membrane. Identify the wine stream and particle stage before selecting the working cloth.
Explore the main custom mesh cylinders showcase for related metal mesh constructions.
Metal-only supply covers the component body and metal fittings expressly agreed in the quotation. Seals, gaskets and complete equipment are separate.
Wine Stage and Constituents to Preserve
State wine composition and stage, temperature, flow and suspended solids. Distinguish wanted yeast or other constituents from debris to intercept. Include cleaning exposure and permissible clean/loaded restriction. A woven cartridge does not guarantee clarity, biological stability, sensory neutrality or shelf life.
Specify the Complete Component
Provide body diameters, active length, seam, core or backing and end seats. Show flow direction, housing bypass boundary and withdrawal access. Define mesh and support independently; a similar outside diameter does not prove that an element seats in the existing holder.
Include the component revision, mating-interface drawing and the required exposed flow area. Agree the joints, support relationship and any purchaser-provided fitting sample before fabrication.
Information for a Comparable Quotation
| Requirement | Details to provide |
|---|---|
| Cartridge | Woven mesh, backing, seam and metal ends |
| Housing | Seats, direction, bypass and removal |
| Wine | Stage, particles, flow and wanted constituents |
| Trial | Passage, restriction, drainage and cleaning |
Particle Passage and Cleaning Trials
Trial passage, restriction, drainage and residue removal with representative wine. Agree material/contact records and joint inspection. Related cylinders are fabrication references, not qualified winery installations or approved branded replacements.
Use the intended mating assembly and purchaser-approved test plan. Agree dimensional inspection and operating acceptance separately; a related construction photograph cannot replace these checks.

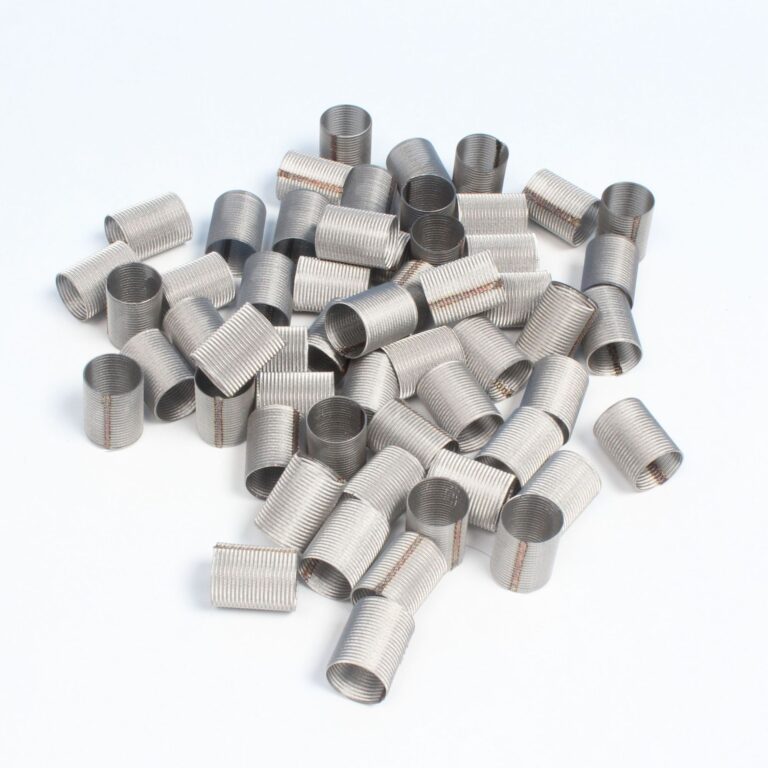

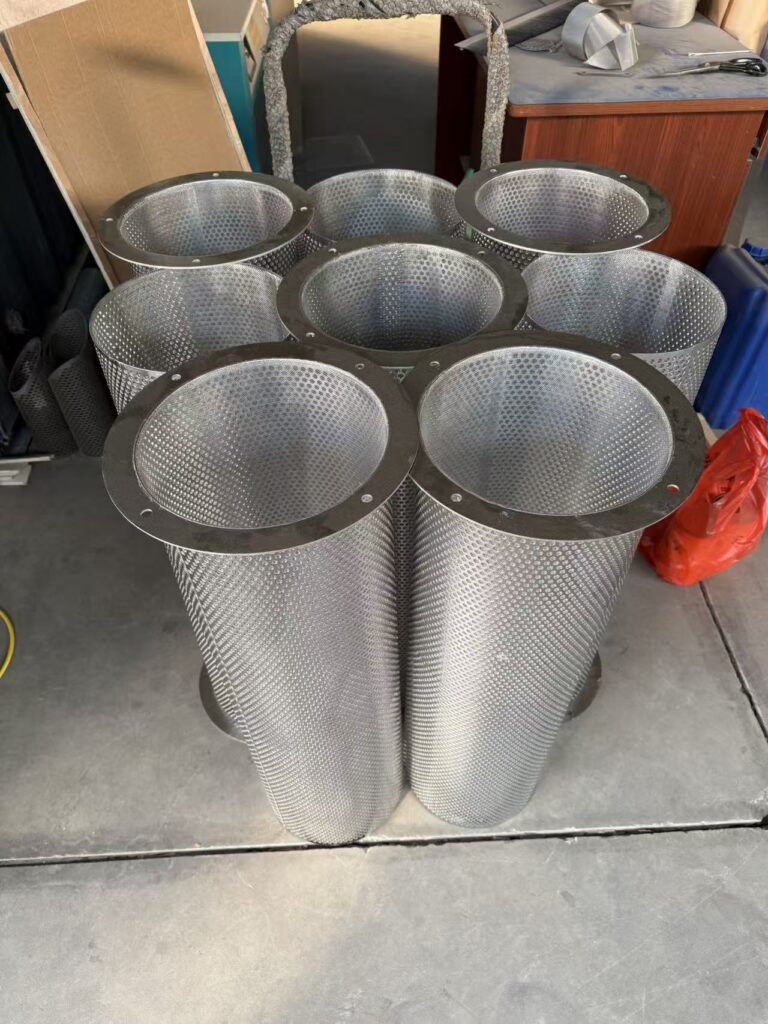

Related Mesh Cylinder Construction
Existing product-reference clip shows a metal mesh cylinder and its end details. It does not show winery operation, validated wine filtration or branded replacement compatibility.
Cleaning, Inspection and Repeat Supply
Specify the cleaning method, chemicals, temperature and permitted mechanical handling. Inspect the mesh, edges, joints and supports after cleaning and agree when the component should be rejected or replaced.
For repeat orders, use the accepted component drawing and material specification with the same inspection requirements. Identify changes in fluid, particles, loading or installation before reusing a previous specification.
Product Enquiry FAQ
Send the component and holder drawings, metal and mesh requirements, operating conditions, quantity and acceptance criteria. Unspecified dimensions or duties can be marked for review.
No equivalence is assumed. Define the metal screen's particle-prefilter role separately from a validated microbial filtration stage.
No. This enquiry covers the agreed metal component. Sealing parts, housings and complete equipment are separate.
They show related component or material construction from the existing library. The supplied item follows the agreed drawing and sample acceptance; the images are not an installed-service case study.
Send Your Component and Mating Drawings
Describe the installation, material, mesh requirement and quantity. Maidong can review the requested metal component for fabrication and quotation.
