Stainless Steel Mesh Face Screens for Bleaching Earth Pressure Leaf Filters
Woven face-screen sets for spent bleaching-earth pressure leaves. Specify oil, adsorbent fines, layer order, leaf interfaces and cake-discharge acceptance.
Working Mesh Faces in the Bleaching-Earth Filter
Supply covers the working woven faces and expressly agreed backing pieces in a pressure leaf separating spent bleaching earth from oil. It is separate from the bleaching vessel, dosing equipment and complete leaf frame. Define the metal pieces and their retention in the installed assembly.
Explore the main metal disc filter elements showcase for related metal mesh constructions.
Metal-only supply covers the component body and metal fittings expressly agreed in the quotation. Seals, gaskets and complete equipment are separate.
Oil Adsorbent and Cake-Discharge Cycle
State oil formulation, earth grade/dose, fines distribution, filtration temperature and viscosity. Define recirculation or precoat sequence, clean/loaded restriction and approved cake drying/discharge. The screen does not carry out adsorption or guarantee the oil colour endpoint.
Specify the Complete Component
Send leaf profiles, edge capture, outlet clearance and mesh-layer order. Specify working weave and support/drainage meshes independently. Show the supported filtering area and any assembly joining boundary. A surface screen and a complete leaf are different quotation scopes.
Include the component revision, mating-interface drawing and the required exposed flow area. Agree the joints, support relationship and any purchaser-provided fitting sample before fabrication.
Information for a Comparable Quotation
| Requirement | Details to provide |
|---|---|
| Leaf | Outline, edge capture and drain interfaces |
| Layers | Face weave, backing order and support |
| Oil/earth | Fines, dose, temperature and viscosity |
| Acceptance | Passage, retained oil and cake release |
Screen Fit and Retained-Oil Acceptance
Agree solids passage, fitted drainage, retained oil and cake-release trials using the approved procedure. Define cleaning exposure and post-cleaning screen inspection. Process performance belongs to the complete oil/adsorbent cycle; no equipment capacity or supplier certification is inferred.
Use the intended mating assembly and purchaser-approved test plan. Agree dimensional inspection and operating acceptance separately; a related construction photograph cannot replace these checks.
Cleaning, Inspection and Repeat Supply
Specify the cleaning method, chemicals, temperature and permitted mechanical handling. Inspect the mesh, edges, joints and supports after cleaning and agree when the component should be rejected or replaced.
For repeat orders, use the accepted component drawing and material specification with the same inspection requirements. Identify changes in fluid, particles, loading or installation before reusing a previous specification.
Product Enquiry FAQ
Send the component and holder drawings, metal and mesh requirements, operating conditions, quantity and acceptance criteria. Unspecified dimensions or duties can be marked for review.
No. The adsorbent performs that role. The screen separates the agreed spent solids after treatment, subject to the actual process acceptance.
No. This enquiry covers the agreed metal component. Sealing parts, housings and complete equipment are separate.

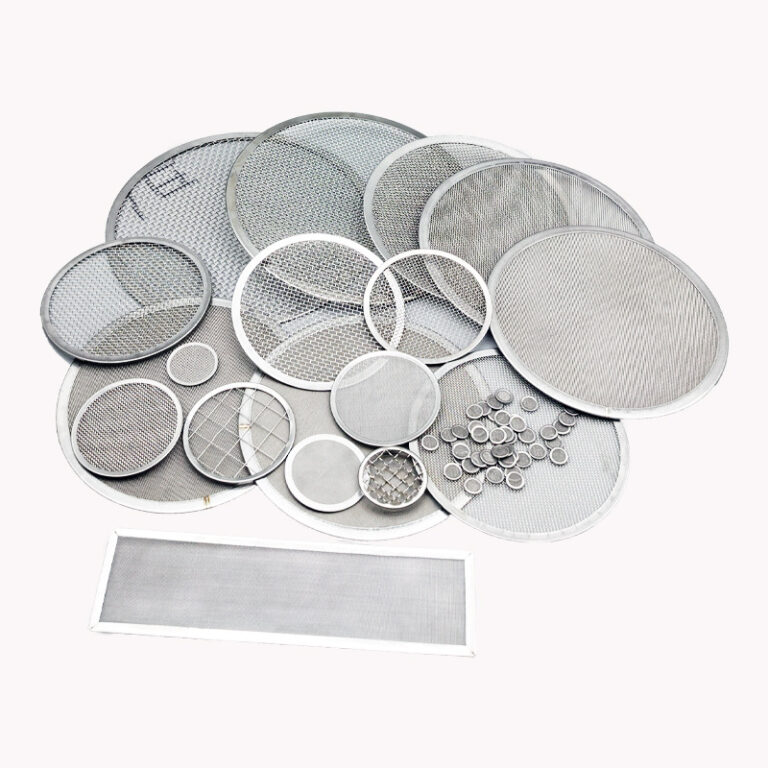

They show related component or material construction from the existing library. The supplied item follows the agreed drawing and sample acceptance; the images are not an installed-service case study.
Send Your Component and Mating Drawings
Describe the installation, material, mesh requirement and quantity. Maidong can review the requested metal component for fabrication and quotation.
