Stainless Steel Mesh Covering Discs for Horizontal Plate Polyol Filters
Woven covering discs for approved horizontal-plate polyol filters. Specify plate profile, retained edge, backing and actual liquid/gel passage requirements.
Woven Disc on the Approved Horizontal Filter Plate
The product is a woven screen disc fitted to a purchaser-defined horizontal filter plate in a polyol filtration assembly. Supply is the agreed disc and metal edge work, separate from the plate stack, compression hardware and complete vessel. Confirm that metal mesh is the approved medium rather than substituting it for paper or polymer media.
Explore the main metal disc filter elements showcase for related metal mesh constructions.
Metal-only supply covers the component body and metal fittings expressly agreed in the quotation. Seals, gaskets and complete equipment are separate.
Polyol Chemistry and Gel-Passage Objective
State polyol type, full chemistry, viscosity at temperature and unwanted particles or gel. Identify desired dispersed constituents to preserve. Provide flow, restriction and washing/discharge cycle. Mesh does not establish polymer stability, hydroxyl value or final formulation quality.
Specify the Complete Component

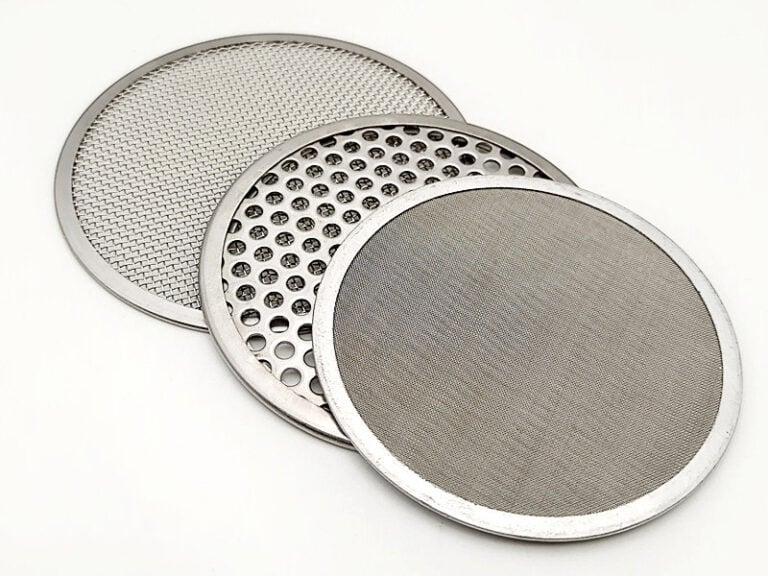

Provide disc outline, central feature if present, plate recess and captured perimeter. Show backing, flow direction and any plate compression interface. Define wire data and retention/test basis. Existing discs illustrate related fabrication; they do not reproduce a proprietary reverse-flow plate assembly.
Include the component revision, mating-interface drawing and the required exposed flow area. Agree the joints, support relationship and any purchaser-provided fitting sample before fabrication.
Information for a Comparable Quotation
| Requirement | Details to provide |
|---|---|
| Disc | Plate profile, edge and central feature |
| Medium | Approved weave, backing and retention basis |
| Polyol | Chemistry, viscosity, particles and desired fraction |
| Trial | Fit, drainage, passage and residue removal |
Plate Fit and Medium-Substitution Approval
Agree seated area, edge retention, drainage and passage trials with actual liquid. Define residue removal and required material/joint inspection. Plate-filter descriptions support the component context only; they do not prove stainless compatibility or original-equipment interchangeability.
Use the intended mating assembly and purchaser-approved test plan. Agree dimensional inspection and operating acceptance separately; a related construction photograph cannot replace these checks.
Cleaning, Inspection and Repeat Supply
Specify the cleaning method, chemicals, temperature and permitted mechanical handling. Inspect the mesh, edges, joints and supports after cleaning and agree when the component should be rejected or replaced.
For repeat orders, use the accepted component drawing and material specification with the same inspection requirements. Identify changes in fluid, particles, loading or installation before reusing a previous specification.
Product Enquiry FAQ
Send the component and holder drawings, metal and mesh requirements, operating conditions, quantity and acceptance criteria. Unspecified dimensions or duties can be marked for review.
No. The equipment and process owner must approve the metal medium and acceptance. Paper, polymer and woven media have different structures.
No. This enquiry covers the agreed metal component. Sealing parts, housings and complete equipment are separate.

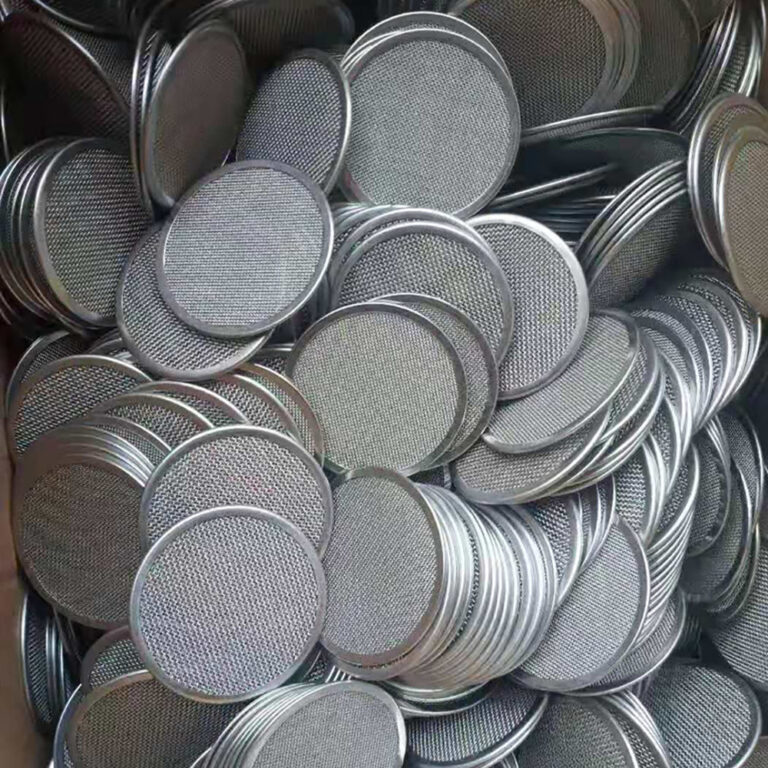

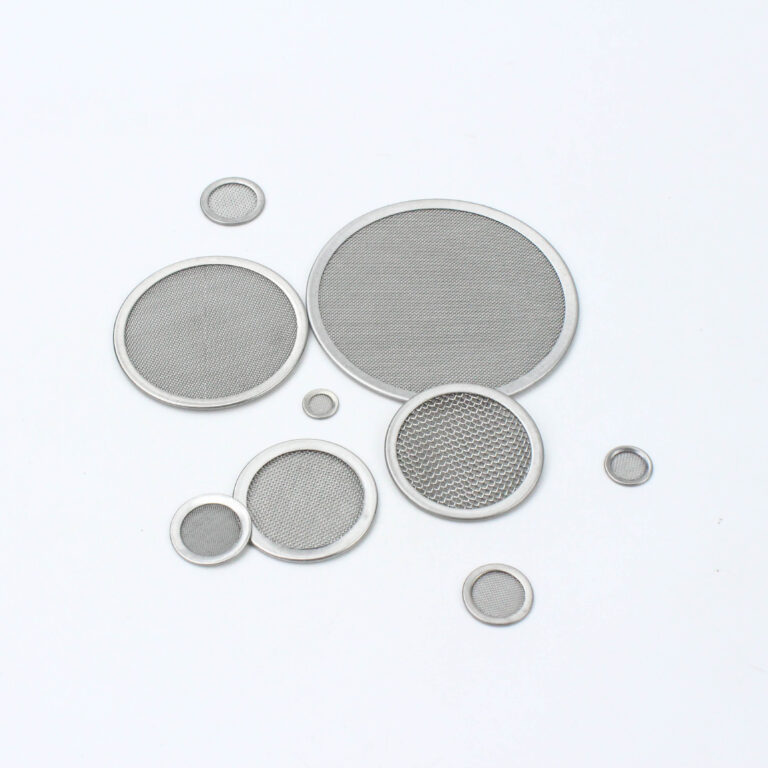

They show related component or material construction from the existing library. The supplied item follows the agreed drawing and sample acceptance; the images are not an installed-service case study.
Send Your Component and Mating Drawings
Describe the installation, material, mesh requirement and quantity. Maidong can review the requested metal component for fabrication and quotation.
