Stainless Steel Wire Mesh (304 / 316)

Precision Stainless Steel Woven Wire Mesh Manufacturer

Stainless Steel Wire Mesh for Industrial Filtration & Precise Screening

Stainless steel wire mesh is manufactured from high-quality 304 or 316 stainless steel wires, offering excellent corrosion resistance, high strength, and long service life. It provides uniform mesh openings, stable performance, and outstanding heat and chemical resistance, making it suitable for critical industrial filtration and screening tasks.

Common weave types include plain weave, twill weave, and Dutch weave, each designed for different filtration precision and mechanical strength.

Stainless steel mesh is widely used in chemical processing, food & beverage filtration, mining, petroleum refining, water treatment, pharmaceuticals, laboratory screening, and high-temperature or corrosive environments.

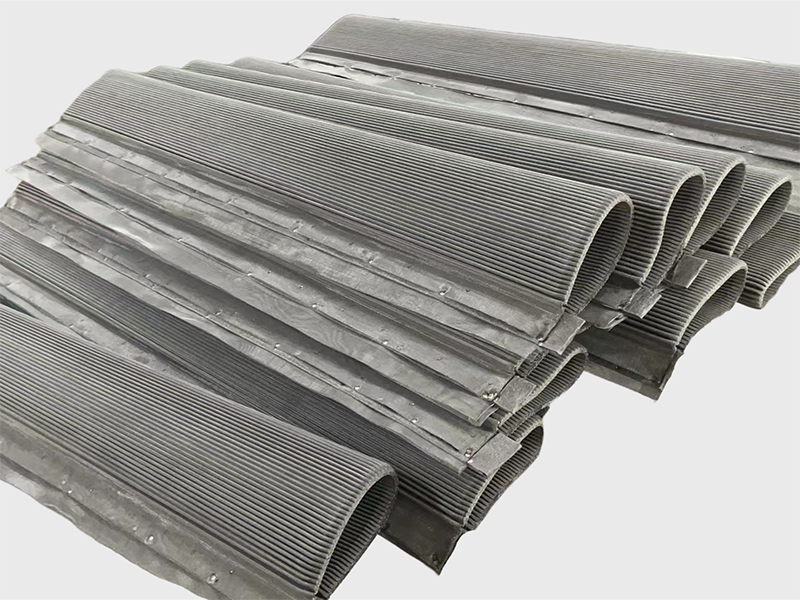

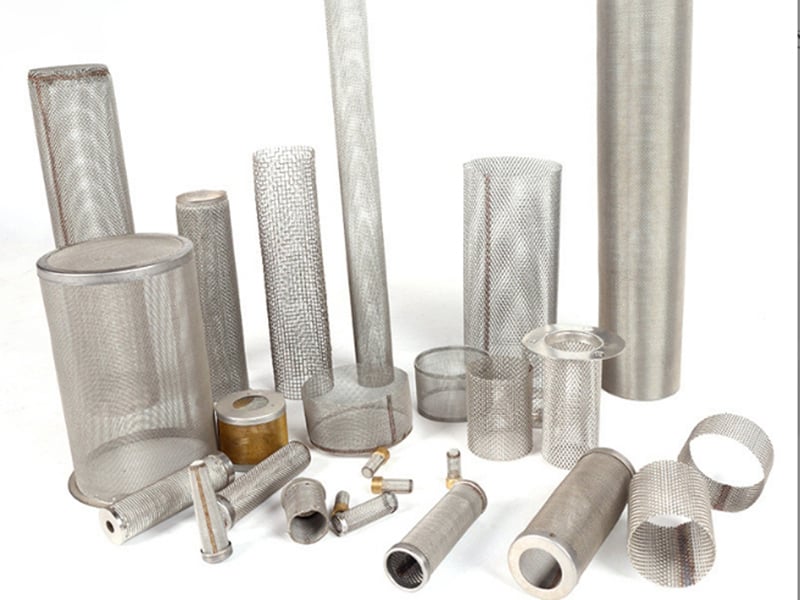

It can be supplied as mesh rolls, sheets, discs, tubes, welded frames, or custom-fabricated filter components.

Precision Weaving Process and Quality Control

Our precision stainless steel woven wire mesh is produced with strict control over wire diameter, weaving tension, and aperture consistency.

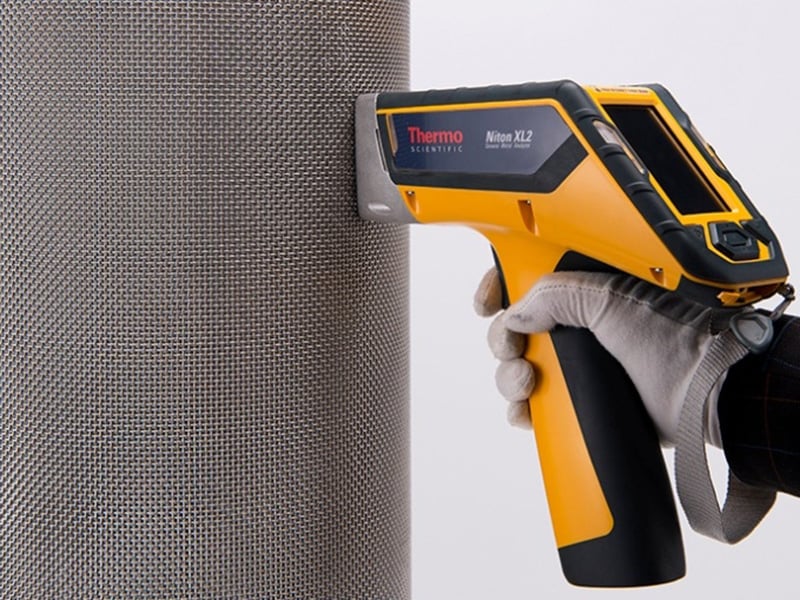

Advanced weaving equipment and quality inspection processes ensure stable filtration accuracy, uniform openings, and repeatable performance in demanding industrial environments.

Weave Type

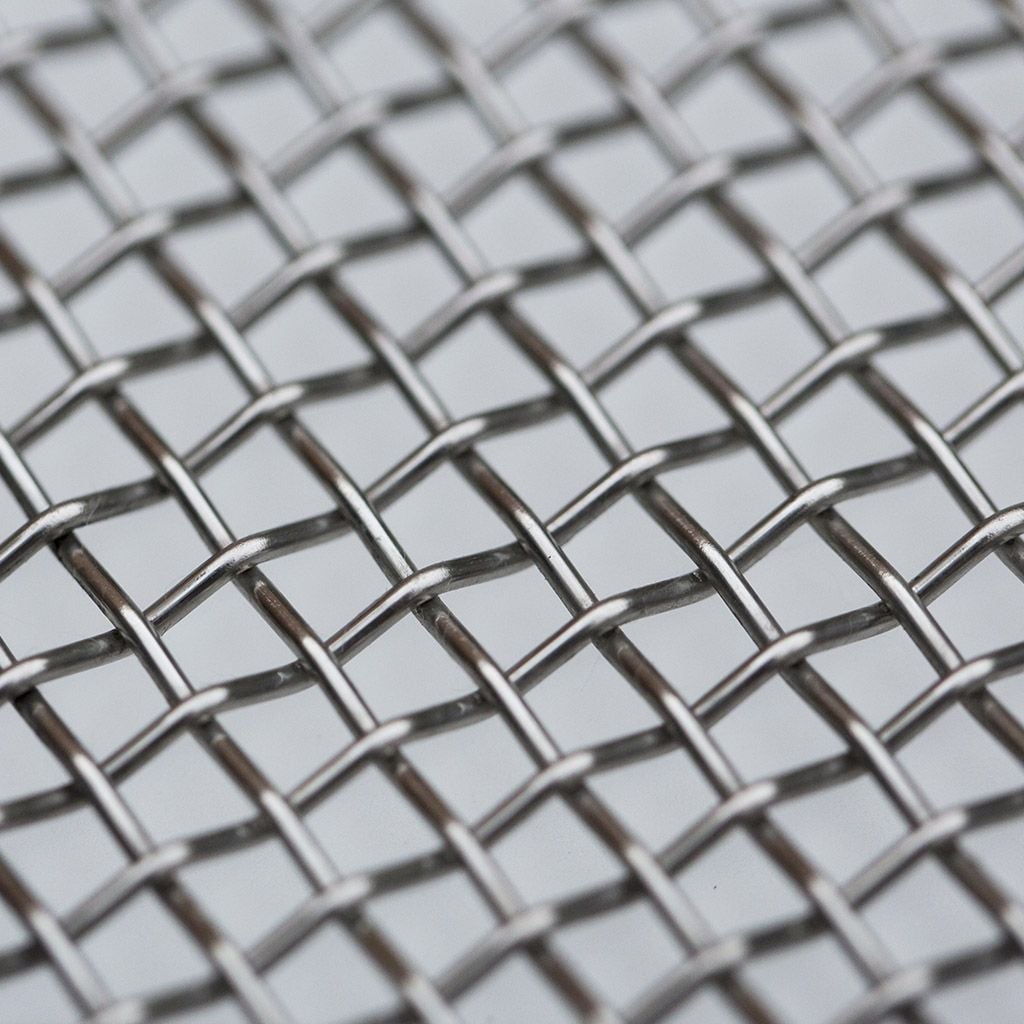

Plain Weave

The most common weaving, wires pass alternately over and under for uniform openings.

Twill Weave

Each wire passes alternately over two and under two for tighter mesh and higher strength.

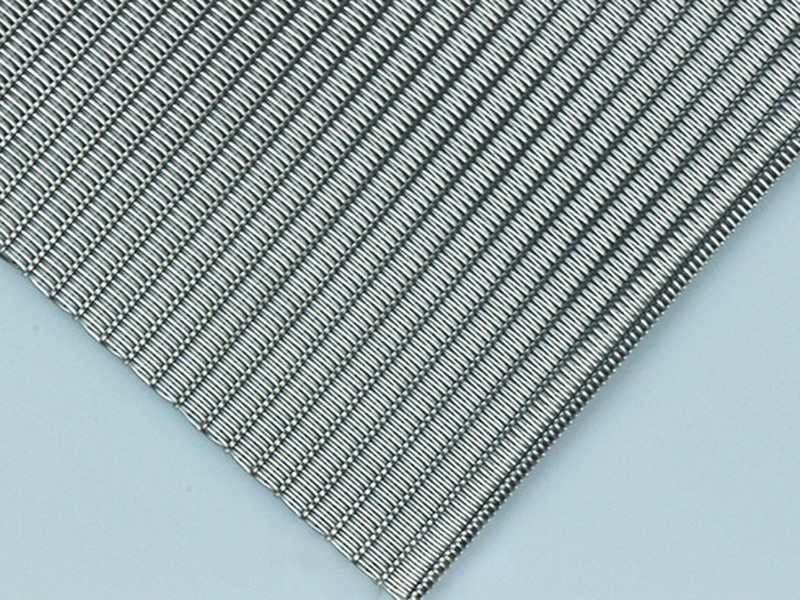

Plain Dutch Weave

Warp wires are thicker and denser, weft wires are finer, giving high filtration precision.

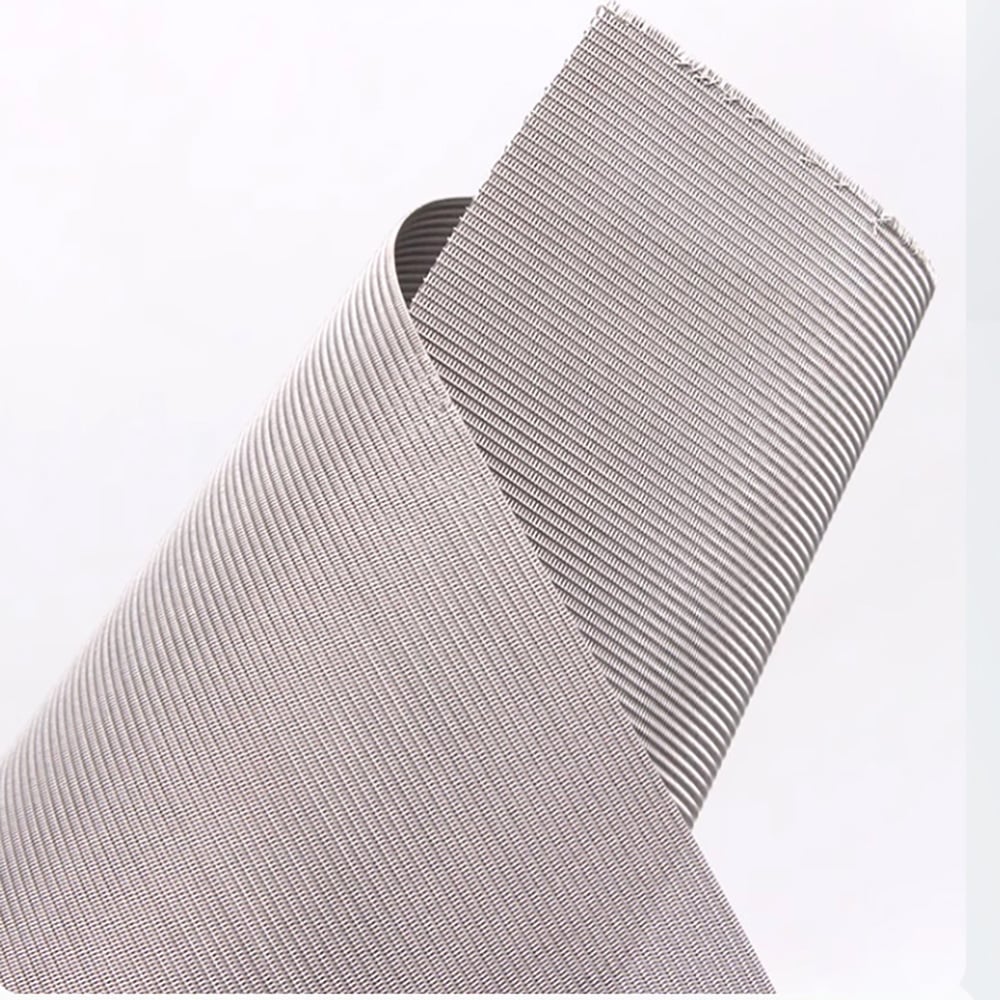

Twill Dutch Weave

Similar to plain Dutch but with a twill pattern — tighter and smoother surface.

Reverse Dutch Weave

Warp wires are finer, weft wires are thicker, allowing high pressure and easy backwash.

5-Heddle Weave

Flat and smooth surface with large open area, ideal for process belts and filtration.

Specifications – Stainless Steel Wire Mesh

Plain weave mesh - specifications

Mesh Count	Wire Diameter		Mesh Opening		Open Area
Mesh Count	inch	mm	inch	mm	Open Area
1×1	0.08	2.03	0.92	23.37	84.6
2×2	0.063	1.6	0.437	11.1	76.4
3×3	0.054	1.37	0.279	7.09	70.1
4×4	0.063	1.6	0.187	4.75	56
4×4	0.047	1.19	0.203	5.16	65.9
5×5	0.041	1.04	0.159	4.04	63.2
6×6	0.035	0.89	0.132	3.35	62.7
8×8	0.028	0.71	0.097	2.46	60.2
10×10	0.025	0.64	0.075	1.91	56.3
10×10	0.02	0.51	0.08	2.03	64
12×12	0.023	0.584	0.06	1.52	51.8
12×12	0.02	0.508	0.063	1.6	57.2
14×14	0.023	0.584	0.048	1.22	45.2
14×14	0.02	0.508	0.051	1.3	51
16×16	0.018	0.457	0.0445	1.13	50.7
18×18	0.017	0.432	0.0386	0.98	48.3
20×20	0.02	0.508	0.03	0.76	36
20×20	0.016	0.406	0.034	0.86	46.2
24×24	0.014	0.356	0.0277	0.7	44.2
30×30	0.013	0.33	0.0203	0.52	37.1
30×30	0.012	0.305	0.0213	0.54	40.8
30×30	0.009	0.229	0.0243	0.62	53.1
35×35	0.011	0.279	0.0176	0.45	37.9
40×40	0.01	0.254	0.015	0.38	36
50×50	0.009	0.229	0.011	0.28	30.3
50×50	0.008	0.203	0.012	0.31	36
60×60	0.0075	0.191	0.0092	0.23	30.5
60×60	0.007	0.178	0.0097	0.25	33.9
70×70	0.0065	0.165	0.0078	0.2	29.8
80×80	0.0065	0.165	0.006	0.15	23
80×80	0.0055	0.14	0.007	0.18	31.4
90×90	0.005	0.127	0.0061	0.16	30.1
100 脳 100	0.0045	0.114	0.0055	0.14	30.3
100×100	0.004	0.102	0.006	0.15	36
100×100	0.0035	0.089	0.0065	0.17	42.3
110×110	0.004	0.1016	0.0051	0.1295	30.7
120×120	0.0037	0.094	0.0064	0.1168	30.7
150×150	0.0026	0.066	0.0041	0.1041	37.4
160×160	0.0025	0.0635	0.0038	0.0965	36.4
180×180	0.0023	0.0584	0.0033	0.0838	34.7
200×200	0.0021	0.0533	0.0029	0.0737	33.6
250×250	0.0016	0.0406	0.0024	0.061	36
270×270	0.0016	0.0406	0.0021	0.0533	32.2
300×300	0.0051	0.0381	0.0018	0.0457	29.7
325×325	0.0014	0.0356	0.0017	0.0432	30
400×400	0.001	0.0254	0.0015	0.038	36

Twill weave mesh - specifications

Mesh Count	Wire Diameter	Mesh Opening	Open Area
Warp/Inch × Weft/Inch	mm	mm	%
150 × 150	0.07	0.0993	34.4
165 × 165	0.058	0.0959	38.83
180 × 180	0.058	0.0831	34.69
200 × 200	0.058	0.069	29.52
225 × 225	0.05	0.069	33.62
235 × 235	0.045	0.0631	34.07
250 × 250	0.04	0.0616	36.76
270 × 270	0.04	0.0541	33.05
280 × 280	0.04	0.0507	31.25
300 × 300	0.035	0.0497	34.43
300 × 300	0.038	0.0467	30.4
300 × 300	0.04	0.0447	27.85
315 × 315	0.035	0.0456	32.01
325 × 325	0.035	0.0432	30.52
350 × 350	0.035	0.0376	26.82
350 × 350	0.03	0.0426	34.43
363 × 363	0.03	0.04	32.65
385 × 385	0.03	0.0377	31.01
400 × 400	0.025	0.0385	36.76
400 × 400	0.028	0.0355	31.25
400 × 400	0.03	0.0335	27.83
420 × 420	0.03	0.0302	25.17
450 × 450	0.025	0.0314	31
500 × 500	0.025	0.0258	25.79
510 × 510	0.025	0.0248	24.8
530 × 530	0.024	0.0239	24.9
635 × 635	0.018	0.022	30.25
635 × 635	0.02	0.02	25
800 × 800	0.016	0.0164	25.62

Plain Dutch Weave- specifications

Mesh Count	Wire Diameter	Wire Diameter.1	Filter Rating	Weight
Warp/Inch × Weft/Inch	inch	mm	μm	kg/m2
8 × 85	0.0140 × 0.01260	0.355 × 0.320	318–340	2.43
10 × 70	0.0240 × 0.01400	0.600 × 0.350	300–325	3.04
12 × 64	0.0230 × 0.01650	0.580 × 0.400	295–305	3.64
14 × 88	0.0190 × 0.01200	0.500 × 0.330	195–205	3.15
20 × 150	0.0098 × 0.00700	0.248 × 0.177	155–165	1.48
24 × 110	0.0150 × 0.01000	0.355 × 0.250	145–155	2.7
24 × 120	0.0130 × 0.00900	0.330 × 0.230	115–125	2.24
30 × 150	0.0090 × 0.00700	0.230 × 0.180	95–105	1.6
40 × 200	0.0070 × 0.00550	0.180 × 0.140	75–85	1.3
50 × 250	0.0055 × 0.00450	0.140 × 0.114	55–65	1
60 × 300	0.0055 × 0.00350	0.140 × 0.090	36–40	0.77
70 × 400	0.0047 × 0.00256	0.120 × 0.065	36–40	0.67
80 × 300	0.0049 × 0.00350	0.125 × 0.090	38–42	0.98
80 × 400	0.0049 × 0.00280	0.125 × 0.071	38–42	0.81

Twill Dutch Weave- specifications

Mesh Count	Wire Diameter	Wire Diameter.1	Filter Rating	Weight
Warp/Inch × Weft/Inch	inch	mm	μm	kg/m2
20 × 200	0.0135 × 0.0105	0.30 × 0.27	138	3.93
24 × 220	0.0135 × 0.0100	0.30 × 0.25	105–112	3.98
20 × 50	0.0098 × 0.0079	0.25 × 0.20	98–105	2.81
30 × 360	0.0100 × 0.0060	0.02 × 0.15	80–84	2.49
40 × 560	0.0070 × 0.0040	0.18 × 0.10	47–52	1.72
50 × 500	0.0055 × 0.0043	0.14 × 0.11	37–45	1.76
80 × 700	0.0040 × 0.0030	0.10 × 0.08	24–26	1.32
120 × 160	0.0040 × 0.0025	0.10 × 0.063	28–32	0.46
120 × 400	0.0040 × 0.0025	0.10 × 0.063	3–43	0.7
165 × 800	0.0028 × 0.0020	0.071 × 0.05	14–16	0.72
165 × 1400	0.0028 × 0.0016	0.071 × 0.04	9–11	0.77
200 × 600	0.0024 × 0.0018	0.061 × 0.046	19–21	0.5
200 × 1400	0.0028 × 0.0016	0.071 × 0.04	5–6	0.83
325 × 2300	0.0014 × 0.0010	0.035 × 0.025	2–3	0.46
400 × 2800	0.0012 × 0.0007	0.030 × 0.018	1–2	0.32

Reverse Dutch Weave- specifications

Mesh Count	Wire Diameter	Wire Diameter.1	Filter Rating	Weight	Weight.1
Warp/Inch × Weft/Inch	mm	inch	μm	lb/yd2	kg/m2
48 × 10	0.50 × 0.50	0.020 × 0.020	400	0.742	3.63
63 × 18	0.40 × 0.60	0.016 × 0.024	220	0.847	4.14
72 × 15	0.45 × 0.55	0.018 × 0.022	250	0.978	4.78
100 × 16	0.35 × 0.45	0.014 × 0.018	190	0.791	3.87
107 × 20	0.24 × 0.60	0.009 × 0.024	210	0.683	3.34
120 × 16	0.35 × 0.45	0.014 × 0.018	180	0.918	4.49
132 × 17	0.32 × 0.45	0.013 × 0.018	170	0.867	4.24
152 × 24	0.27 × 0.40	0.011 × 0.016	160	0.763	3.73
160 × 17	0.27 × 0.45	0.011 × 0.018	160	0.413	2.02
170 × 18	0.27 × 0.45	0.011 × 0.018	160	0.826	4.01
171 × 46	0.15 × 0.30	0.006 × 0.012	130	0.409	2
180 × 20	0.27 × 0.45	0.011 × 0.018	170	0.877	4.29
200 × 40	0.17 × 0.27	0.007 × 0.011	120	0.444	2.17
240 × 40	0.15 × 0.25	0.006 × 0.010	70	0.405	1.98
260 × 40	0.15 × 0.27	0.006 × 0.011	55	0.448	2.19
290 × 76	0.09 × 0.19	0.004 × 0.007	40	0.26	1.27
300 × 40	0.15 × 0.25	0.006 × 0.010	50	0.472	2.31
300 × 80	0.15 × 0.20	0.006 × 0.010	35	0.509	2.49

5-Heddle Weave- specifications

Mesh Count	Wire Diameter	Thickness	Weight
Warp/Inch × Weft/Inch	mm	mm	kg/m2
15 × 13	0.9 × 0.9	2.6	5.67
24 × 20	0.6 × 0.6	1.7	3.96
28 × 17	0.47 × 0.47	1.41	2.53
30 × 18	0.5 × 0.5	1.48	3
48 × 25	0.3 × 0.3	0.82	1.64
48 × 45	0.29 × 0.29	0.83	2
55 × 36	0.3 × 0.3	0.84	2.05
65 × 36	0.3 × 0.3	0.84	2.27
77 × 40	0.24 × 0.24	0.68	1.65
80 × 60	0.2 × 0.2	0.55	1.4
107 × 59	0.16 × 0.16	0.45	1.09
107 × 125	0.16 × 0.14	0.45	1.27
107 × 132	0.16 × 0.14	0.44	1.3
132 × 85	0.14 × 0.2	0.44	1.47

Typical Applications of Precision Stainless Steel Wire Mesh

Stainless steel woven wire mesh is widely used across industrial filtration, screening, safety protection, chemical processing, food production, and architectural applications. Its excellent corrosion resistance, high temperature stability, mechanical strength, and long service life make it one of the most versatile and reliable mesh materials for both industrial and commercial environments.

Industrial filtration and liquid/solid separation

Architectural and decorative mesh installations

Airflow control and ventilation protection

Thermal and corrosion-resistant applications

Safety guarding and machinery protection

Glossary of Precision Stainless Steel Woven Mesh Terms

The following glossary explains the fundamental technical terms used to describe stainless steel woven wire mesh, including wire directions, mesh measurements, and structural parameters. These definitions help ensure clear communication when selecting or specifying mesh materials.

Warp：Longitudinal wires running parallel to the mesh length.

Weft (or Woof)：Cross wires running perpendicular to the warp wires.

Mesh Count：The number of openings per linear inch, indicating mesh fineness.

Wire Diameter：The thickness of the wire before weaving.

Mesh Opening：The clear distance between two adjacent wires.

Mesh Centers (Pitch)：The distance from the center of one wire to the center of the next.

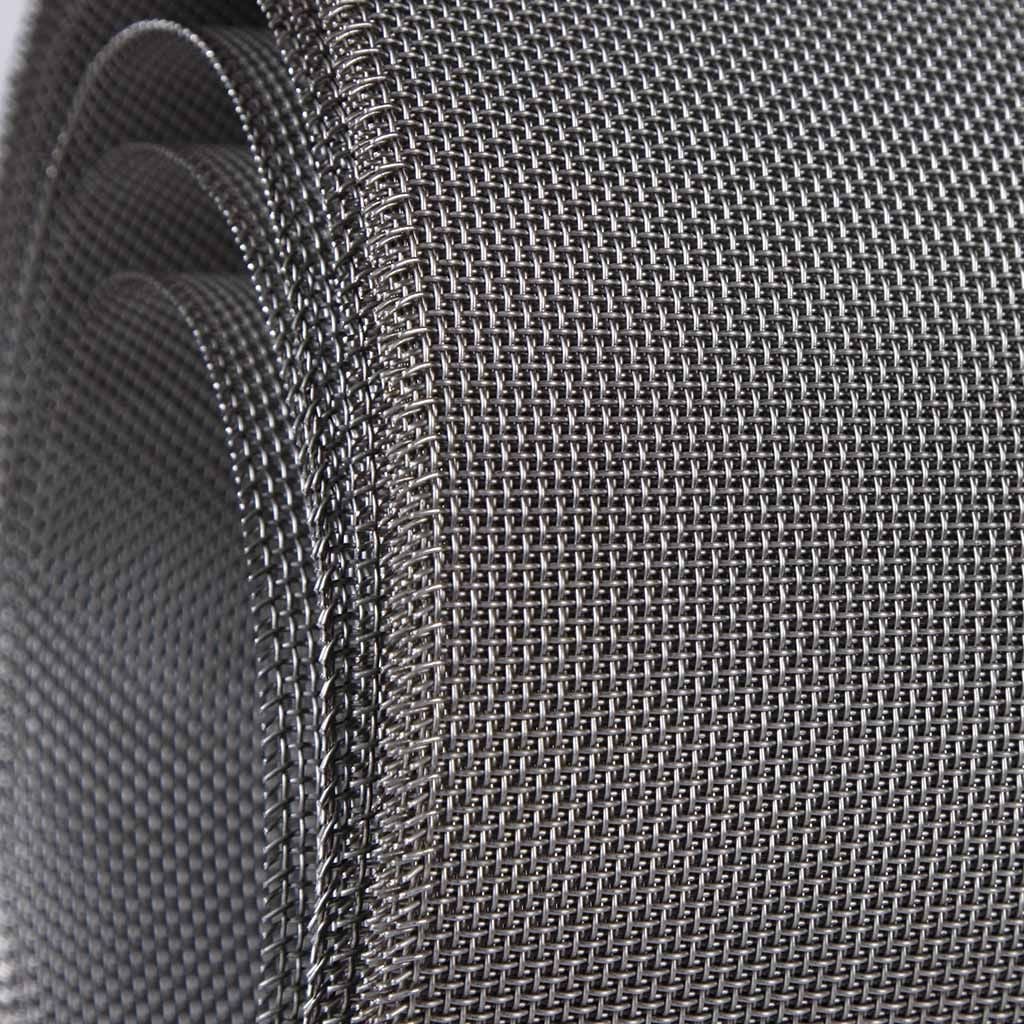

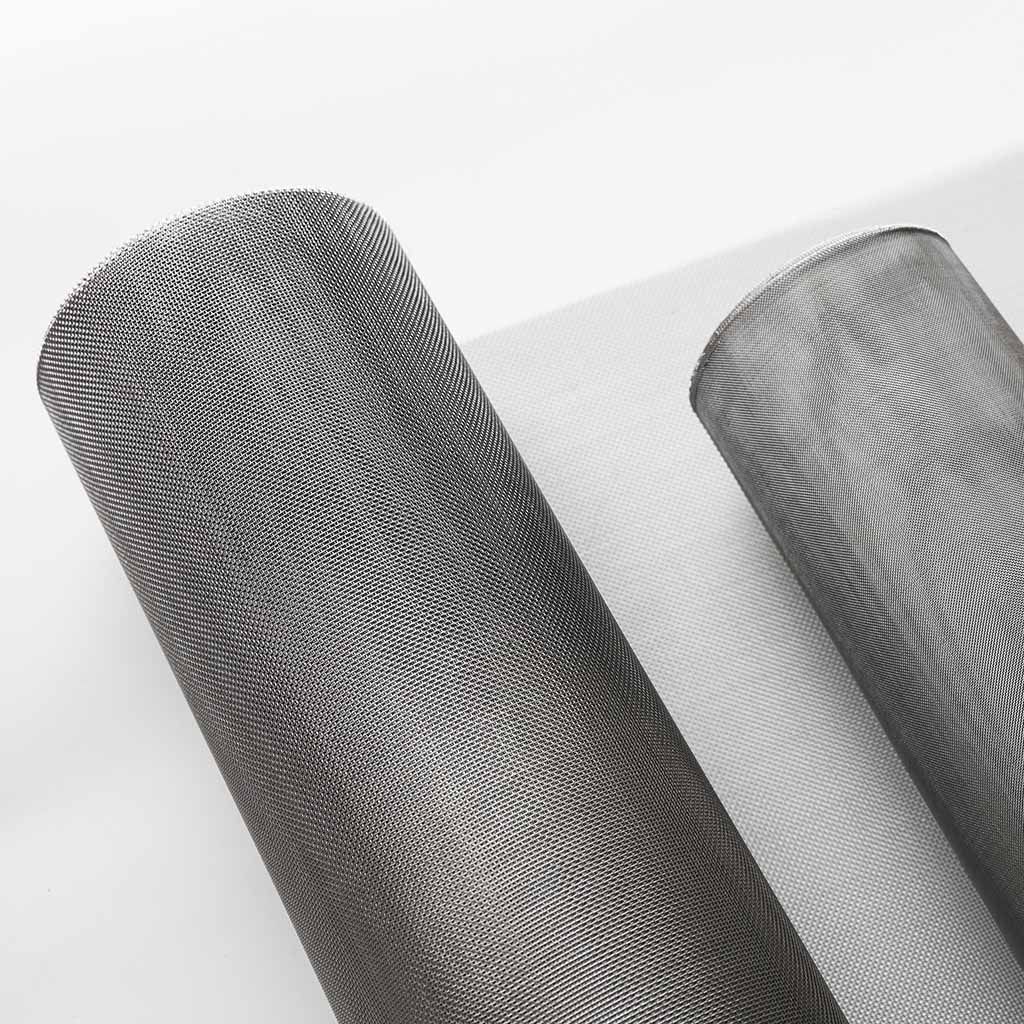

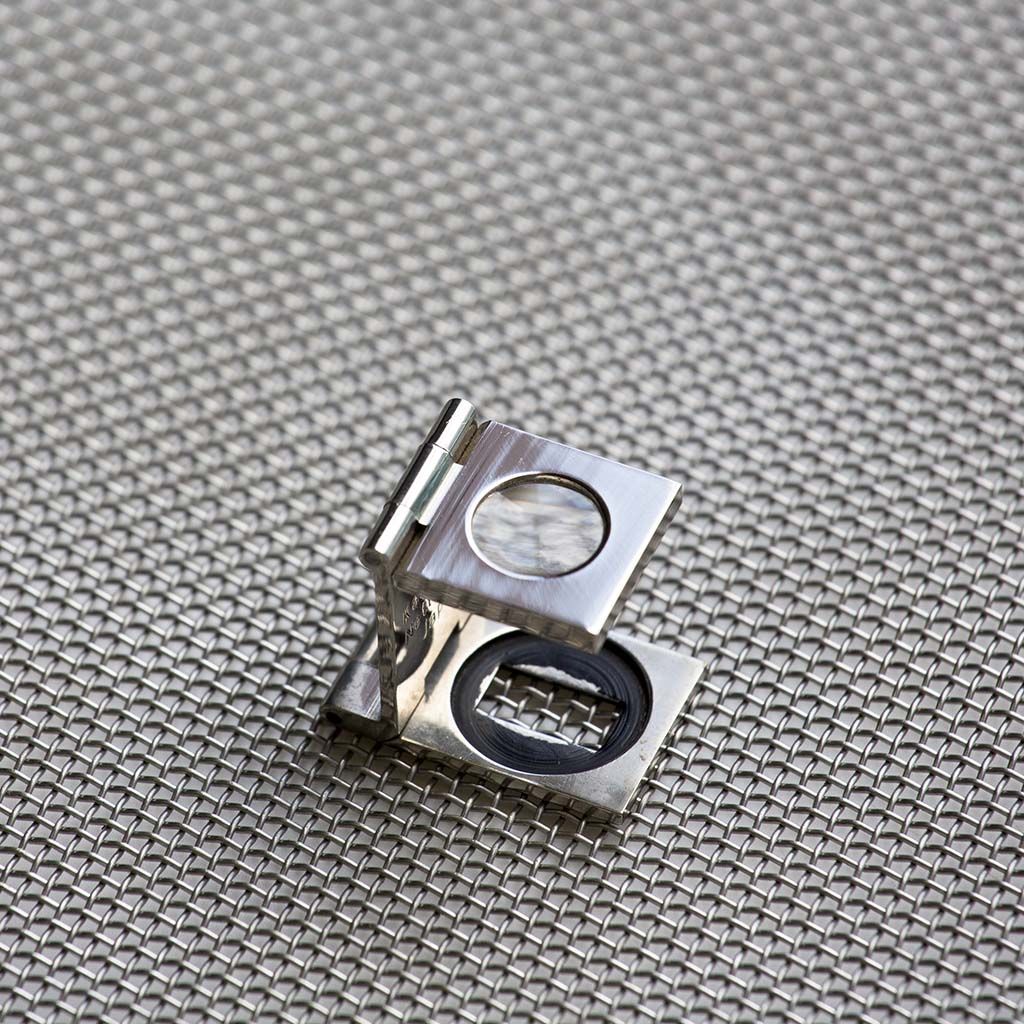

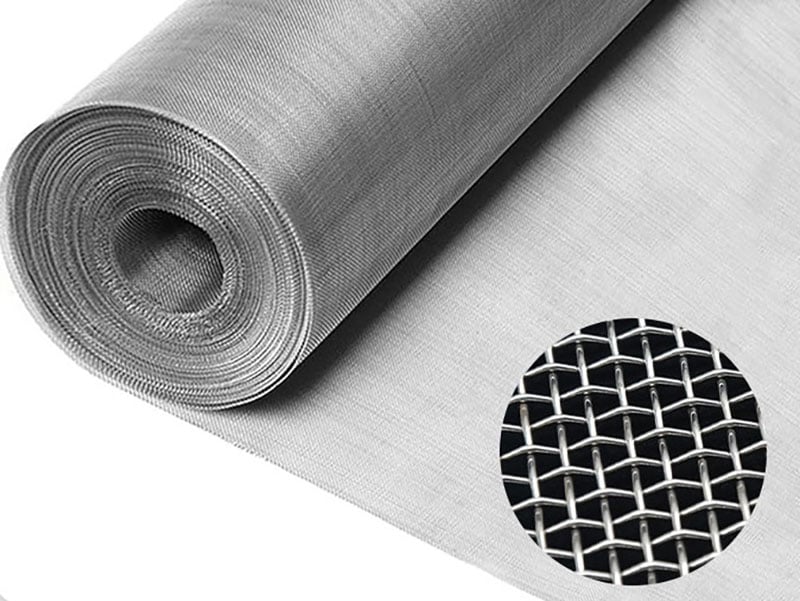

Product Display – Stainless Steel Woven Wire Mesh

Custom Manufacturing and Fabrication Capabilities

Stainless steel woven wire mesh is available in a wide range of mesh counts, wire diameters, and weaving patterns to meet different industrial and commercial requirements. Below are some commonly supplied styles and surface details for reference.

Processing Capabilities of Precision Stainless Steel Woven Wire Mesh

We offer a wide range of processing services based on stainless steel woven wire mesh, including cutting, slitting, welding, punching, forming, and customized filter element fabrication. These capabilities allow us to provide ready-to-use mesh components for different industrial applications.

Cutting & Slitting

Precision slitting and sheet cutting for any required size.

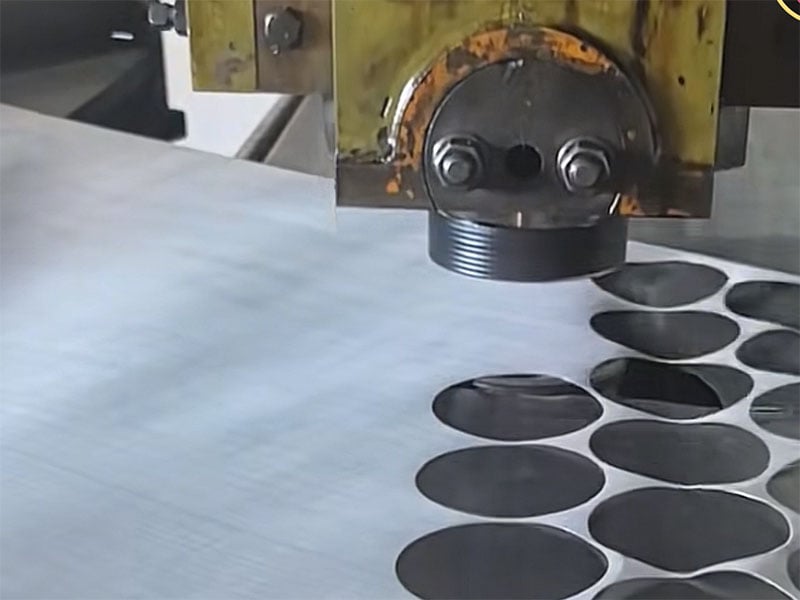

Punching & Stamping

Round, square, or custom-shaped mesh pieces for industrial use.

Welding & Fabrication

Spot welding, seam welding, and mesh component assembly.

Edging & Rim Frames

Aluminum, stainless steel, or custom frames for mesh discs.

Get Your Stainless Steel Woven Mesh Quote Today

Tell us your mesh count, wire diameter, material grade (304/316), size and quantity.
